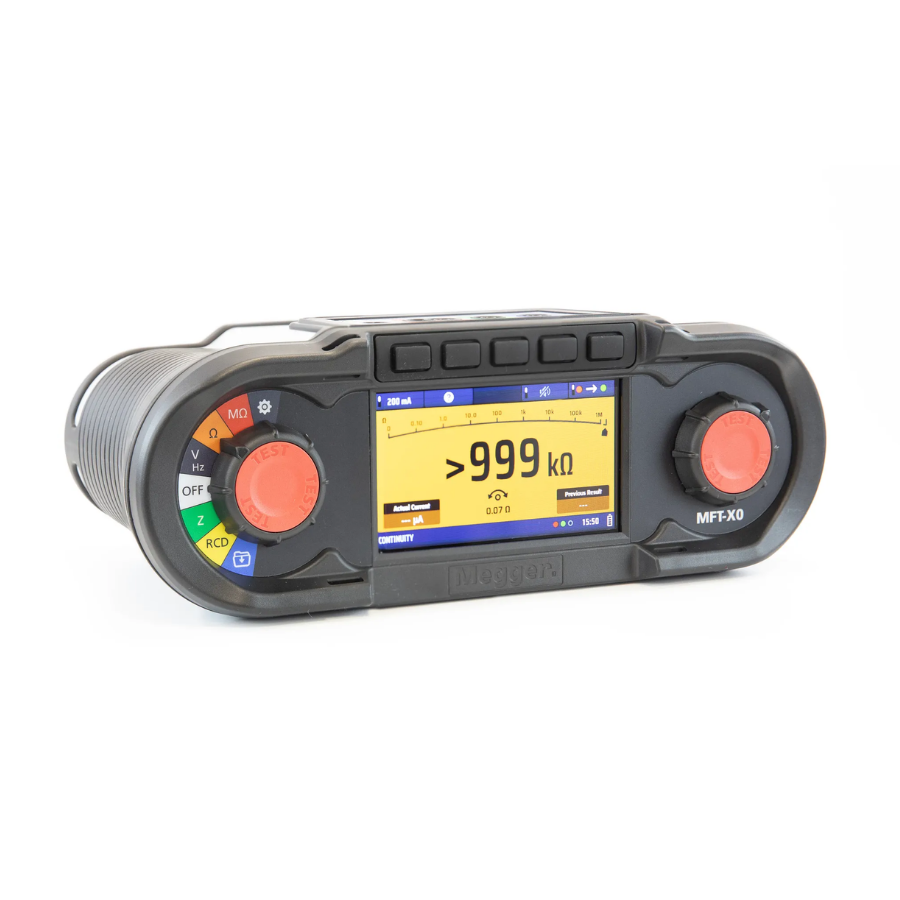

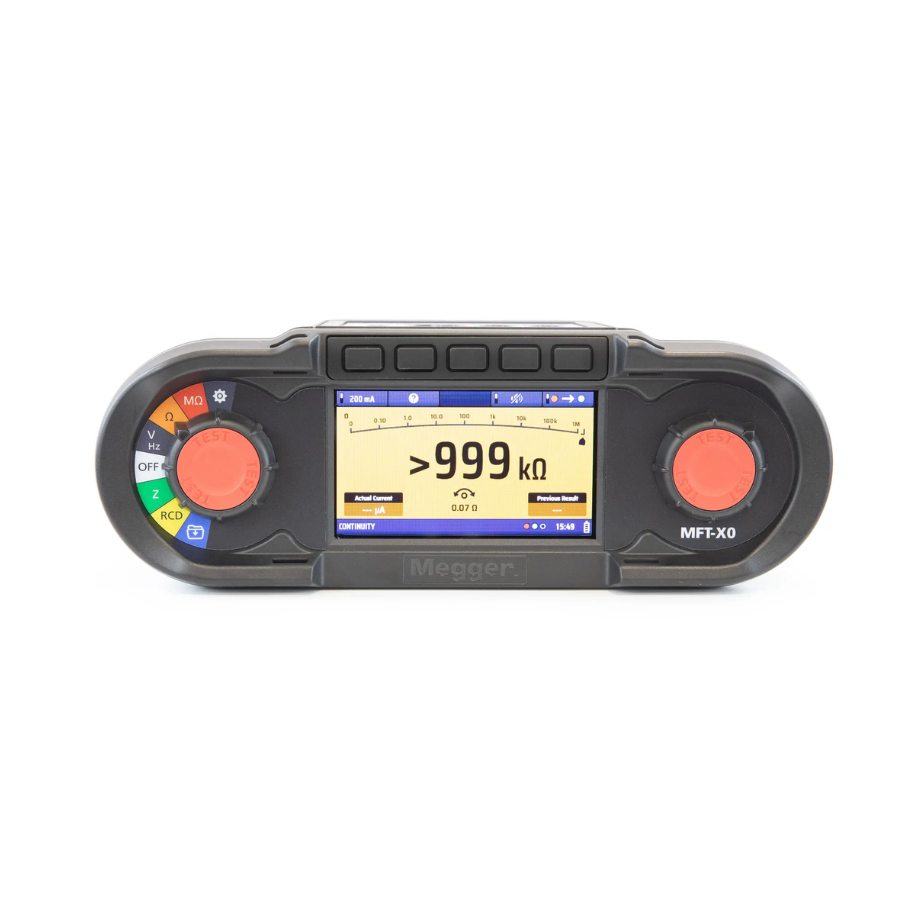

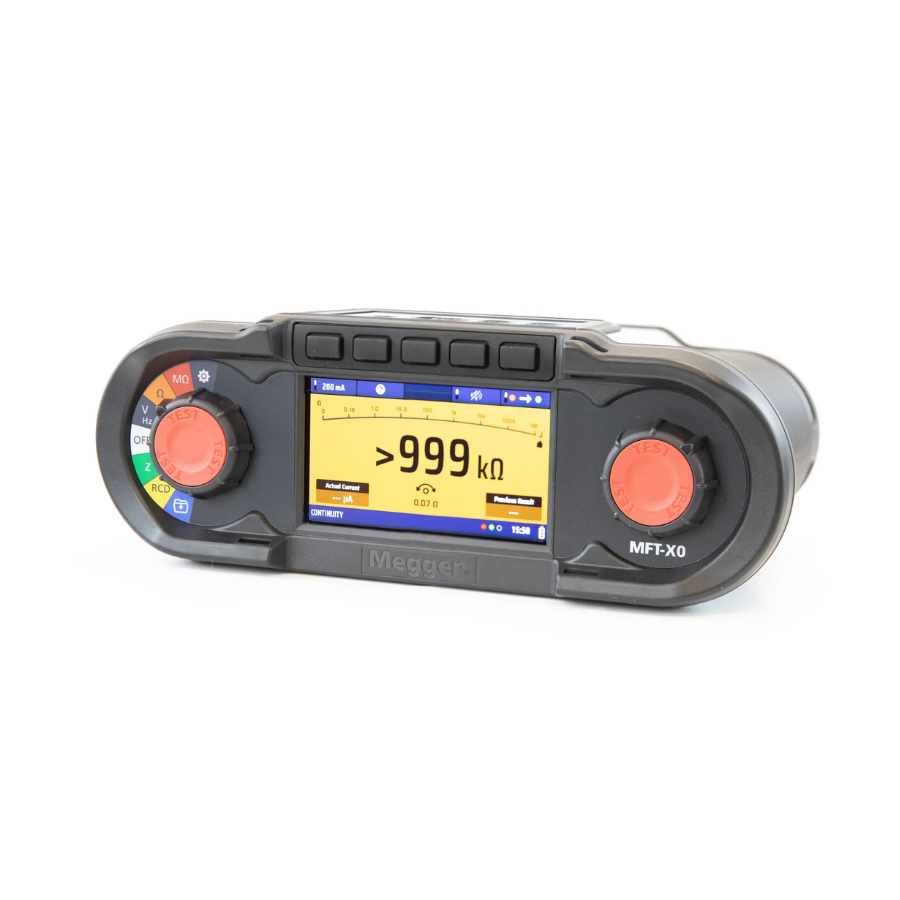

Megger MFT-X0 Multifunction Tester

SKU: AVO/MFT-X0
MPN: 1016-934
  • Ideal for professional electrical installers
  • True Loop™ testing with Confidence Meter™
  • Bluetooth® transfer to CertSuite software
  • Clear colour display and upgradeable system
Write a review
Ask a question

£999.00 (ex VAT)

£1,198.80 (inc VAT)

Earn 999 points

Contact us for delivery date

Why buy from Test4Less?

  • Fast UK delivery
  • Full manufacturer warranty
  • 3 day calibration turnaround on eligible products
  • Price match promise
  • Official authorised distributor
  • Ideal for professional electrical installers
  • True Loop™ testing with Confidence Meter™
  • Bluetooth® transfer to CertSuite software
  • Clear colour display and upgradeable system
Free Shipping

Spend over £100 on any new goods order and receive automatic free shipping

Rewards

Points make purchases! For every £1 spent, earn back 1p that can be spent on any future new goods purchase

Our Price Promise

We offer a Price Match Promise! Find an equivalent tester for a cheaper price on a competitor site, and we’ll do our best to match it

Express Delivery & Calibration

Express Delivery is currently unavailable for customers wishing to add calibration to their New Goods order. For more information, visit our Delivery Information page.

£999.00 (ex VAT)

£1,198.80 (inc VAT)

Earn 999 points

Contact us for delivery date

Customers also viewed

You may also like…

  • Megger MFT1721 Multifunction Tester
    In Stock - Express Delivery Available

    Megger MFT1721 Multifunction Tester

    £911.00 (ex VAT)
    £1,093.20 (inc VAT)
    • Designed for BS 7671 installation testing
    • Four insulation test voltages up to 1000 V
    • Supports Type B and three-phase RCD tests
    • Measures phase rotation and clamp current
    Add to cart
  • Megger MFT-x1 Multifunction Tester
     Usually ships In 1 to 2 weeks

    Megger MFT-X1 EVSE Test Kit with EVCA210

    £1,624.00 (ex VAT)
    £1,948.80 (inc VAT)
    • In-built upgradability that ensures the tester is fully adaptable to future regulations
    • Full-colour screen and RCD configurator
    • Easily removable, rechargeable battery pack
    • EVSE tester capable of testing single and three-phase EV charging points
    Add to cart
  • Megger MFT-X1 Multifunction Tester
    In Stock - Express Delivery Available

    Megger MFT-X1 Multifunction Tester

    £1,319.00 (ex VAT)
    £1,582.80 (inc VAT)
    • In-built upgradability that ensures the tester is fully adaptable to future regulations
    • Full-colour screen and RCD configurator
    • Supports EVSE and solar applications
    • Easily removable, rechargeable battery pack
    Add to cart
Megger MFT-X0 Multifunction Tester

The Megger MFT-X0 Multifunction Tester is a versatile electrical installation tester designed for work on low voltage systems. It helps electricians carry out installation checks, routine testing and fault finding across domestic, commercial and industrial sites. With a wide range of test functions in one instrument, it supports both initial checks and ongoing maintenance. Its user-upgradeable operating system also allows users to install new firmware.

Accurate loop testing forms a key part of the Megger MFT-X0 Multifunction Tester. Its True Loop™ technology supports both 2-wire and 3-wire non-trip loop tests, while the patented Confidence Meter™ helps users track test progress and identify the effect of circuit noise. The instrument also offers stabilised insulation test voltage, custom RCD test sequences and voltage, continuity and resistance checks. These functions help users complete a wide range of electrical tests with one device.

For daily site work, the Megger MFT-X0 Multifunction Tester combines a 480 x 272 colour TFT display with a clear rotary dial and on-screen guidance. Users can view readings, select test functions and follow graphical connection instructions, even in difficult lighting conditions. Bluetooth® connectivity allows test results to be transferred to compatible Android and iOS devices running Megger CertSuite Installation software. A rugged IP54 housing, flexible battery options and weather-proof carry case make the tester practical for use across different work sites.



Key Benefits
  • True Loop™ technology provides reliable and repeatable loop impedance testing, including on circuits with high levels of electrical noise.
  • The patented Confidence Meter™ displays test progress and helps reduce the effect of unwanted readings caused by circuit noise.
  • Bluetooth® transfer to CertSuite Installation makes it easier to record test results, prepare certificates and access reports.
  • Stabilised insulation test voltage provides improved voltage control and reduces the risk of over-voltage damage to sensitive components.
  • Custom RCD test sequences allow users to select the tests they need, including ramp testing, to simplify routine checks.
  • The high-contrast colour screen, on-screen dial and second-level controls help users select functions and read results in poor lighting.
  • Graphical connection guidance helps users identify the correct circuit connections for each measurement.
  • The operating system can be updated using a microSD card, allowing users to install firmware updates without sending the instrument away.

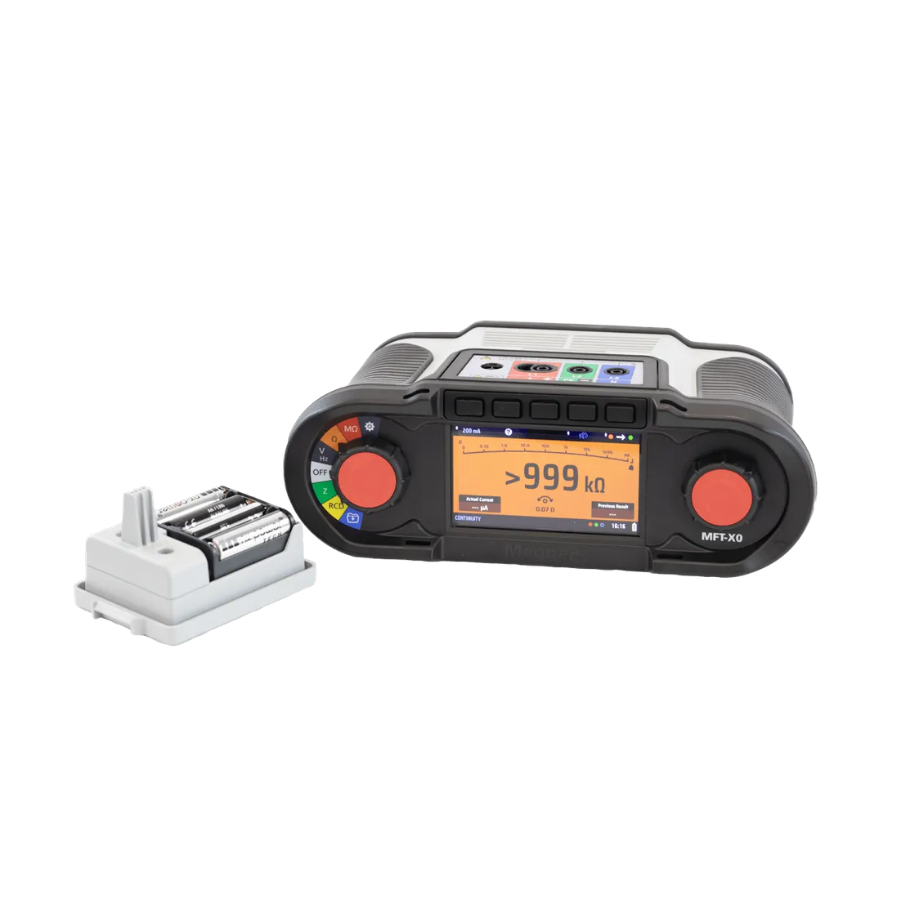

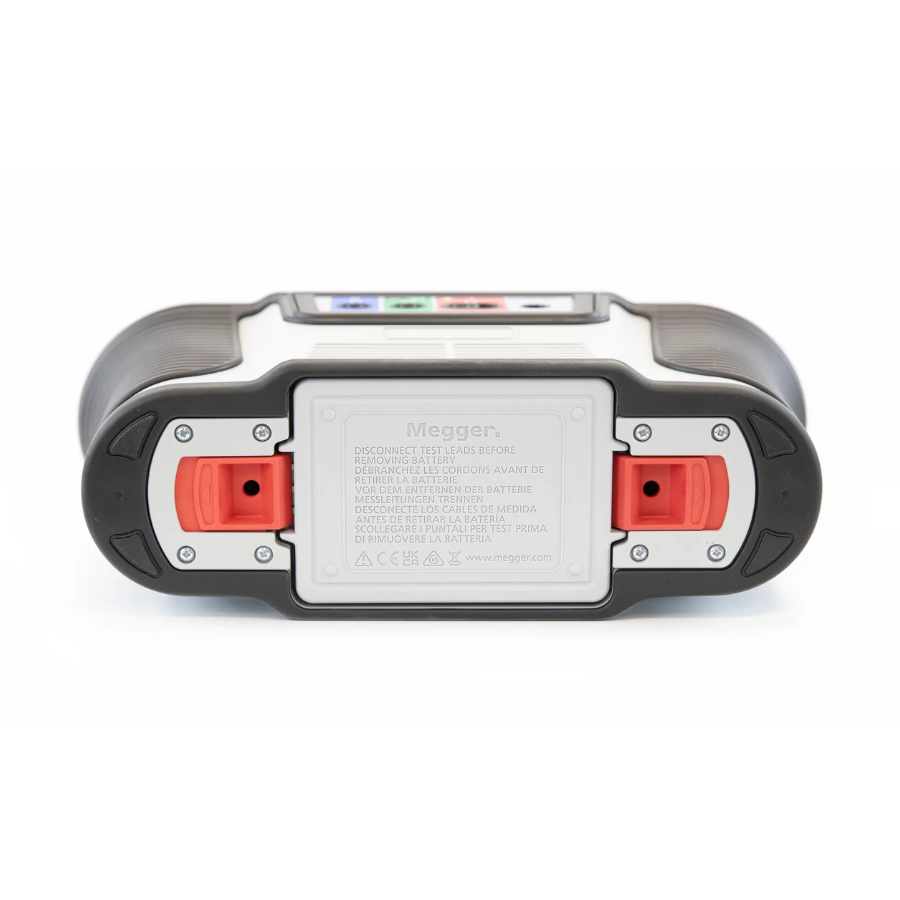

  • AA alkaline batteries or an optional rechargeable Li-ion battery pack provide flexible power options and quick battery changes.

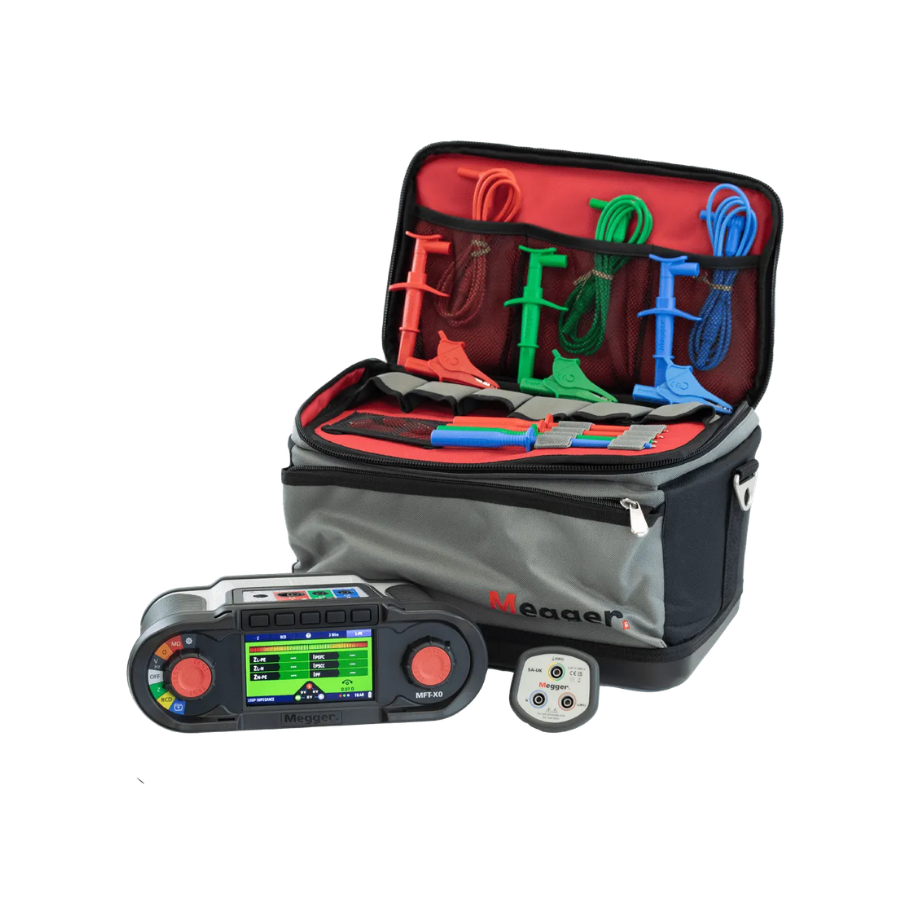

  • The IP54 housing and rugged carry case offer protection against dust, water splashes and the demands of regular site use.



Common Applications

Megger MFT-X0 Multifunction Tester is suitable for a range of testing, maintenance and inspection tasks, including:

  • Testing domestic low voltage electrical installations.
  • Inspection and commissioning of commercial electrical installations.
  • Testing industrial low voltage electrical systems.
  • Periodic electrical inspection and maintenance.
  • Electrical fault finding and circuit diagnostics.
  • Testing electrical installations at EV charge points.
  • Domestic solar photovoltaic (PV) installation testing.
  • Motor and generator testing.
  • Machine testing and portable appliance safety testing.
  • Panel building, switchgear manufacturing and cable testing.



Why Choose This Model?

The Megger MFT-X0 Multifunction Tester combines patented True Loop™ and Confidence Meter™ technology with stabilised insulation testing, flexible RCD sequences and Bluetooth® result transfer. Its upgradeable firmware, colour display and choice of battery systems make it a practical option for electricians who need broad test coverage and digital certification support.

pdf
Megger MFT-X0 Multifunction Tester | Datasheet (Size: 341 KB)
Megger MFT-X0 Multifunction Tester

The Megger MFT-X0 Multifunction Tester is a versatile electrical installation tester designed for work on low voltage systems. It helps electricians carry out installation checks, routine testing and fault finding across domestic, commercial and industrial sites. With a wide range of test functions in one instrument, it supports both initial checks and ongoing maintenance. Its user-upgradeable operating system also allows users to install new firmware.

Accurate loop testing forms a key part of the Megger MFT-X0 Multifunction Tester. Its True Loop™ technology supports both 2-wire and 3-wire non-trip loop tests, while the patented Confidence Meter™ helps users track test progress and identify the effect of circuit noise. The instrument also offers stabilised insulation test voltage, custom RCD test sequences and voltage, continuity and resistance checks. These functions help users complete a wide range of electrical tests with one device.

For daily site work, the Megger MFT-X0 Multifunction Tester combines a 480 x 272 colour TFT display with a clear rotary dial and on-screen guidance. Users can view readings, select test functions and follow graphical connection instructions, even in difficult lighting conditions. Bluetooth® connectivity allows test results to be transferred to compatible Android and iOS devices running Megger CertSuite Installation software. A rugged IP54 housing, flexible battery options and weather-proof carry case make the tester practical for use across different work sites.



Key Benefits
  • True Loop™ technology provides reliable and repeatable loop impedance testing, including on circuits with high levels of electrical noise.
  • The patented Confidence Meter™ displays test progress and helps reduce the effect of unwanted readings caused by circuit noise.
  • Bluetooth® transfer to CertSuite Installation makes it easier to record test results, prepare certificates and access reports.
  • Stabilised insulation test voltage provides improved voltage control and reduces the risk of over-voltage damage to sensitive components.
  • Custom RCD test sequences allow users to select the tests they need, including ramp testing, to simplify routine checks.
  • The high-contrast colour screen, on-screen dial and second-level controls help users select functions and read results in poor lighting.
  • Graphical connection guidance helps users identify the correct circuit connections for each measurement.
  • The operating system can be updated using a microSD card, allowing users to install firmware updates without sending the instrument away.
  • AA alkaline batteries or an optional rechargeable Li-ion battery pack provide flexible power options and quick battery changes.
  • The IP54 housing and rugged carry case offer protection against dust, water splashes and the demands of regular site use.



Common Applications

Megger MFT-X0 Multifunction Tester is suitable for a range of testing, maintenance and inspection tasks, including:

  • Testing domestic low voltage electrical installations.
  • Inspection and commissioning of commercial electrical installations.
  • Testing industrial low voltage electrical systems.
  • Periodic electrical inspection and maintenance.
  • Electrical fault finding and circuit diagnostics.
  • Testing electrical installations at EV charge points.
  • Domestic solar photovoltaic (PV) installation testing.
  • Motor and generator testing.
  • Machine testing and portable appliance safety testing.
  • Panel building, switchgear manufacturing and cable testing.



Why Choose This Model?

The Megger MFT-X0 Multifunction Tester combines patented True Loop™ and Confidence Meter™ technology with stabilised insulation testing, flexible RCD sequences and Bluetooth® result transfer. Its upgradeable firmware, colour display and choice of battery systems make it a practical option for electricians who need broad test coverage and digital certification support.

Product Comparison
Feature Megger MFT-X0 Megger MFT-X1
Product type Multifunction electrical installation tester Multifunction electrical installation tester
Supported installations Domestic, commercial and industrial; single and three phase Domestic, commercial and industrial; single and three phase
DC voltage measurement 0 to ±1100 V; ±1% ±3 digits 0 to ±1000 V; ±1% ±3 digits
AC/TRMS voltage 0–600 V; ±2% ±1 digit 0–600 V; ±2% ±1 digit
Voltage frequency range 15–500 Hz 15–500 Hz
Continuity resistance 0.01 Ω–999 kΩ 0.01 Ω–999 kΩ
Continuity test currents 200 mA and 10 mA 200 mA and 10 mA
Insulation resistance range 0.001–999 MΩ 0.001–999 MΩ
Insulation test voltages 50–1000 V DC; variable 50–999 V 50, 100, 250, 500 and 1000 V; variable 50–999 V
Stabilised insulation voltage -0% to +2% +2 V -0% to +2% +2 V
2-wire loop testing Non-trip, high-current and high-resolution modes Non-trip, high-current and high-resolution modes
High-resolution loop testing 0.001 Ω resolution 0.001 Ω resolution; ±2% ±0.030 Ω accuracy
3-wire non-trip loop testing Supported Supported
Confidence Meter™ Patented technology Patented technology
RCD test types AC, A, B, AC(S), A(S), B(S) AC, A, B, AC(S), A(S), B(S)
RCD test sequences Custom sequences with ramp testing Custom sequences with ramp testing
Phase sequence testing Automatic detection Automatic detection
Volt-drop calculation Supported Supported
Display 480 x 272 colour TFT 480 x 272 colour TFT
Bluetooth® result transfer CertSuite Installation CertSuite Installation
Firmware updates User-upgradeable via microSD User-upgradeable via microSD
Safety rating CAT III 600 V / CAT IV 300 V CAT III 600 V / CAT IV 300 V
Power supply 8 x AA alkaline batteries; optional 4400 mAh Li-ion pack 7.2 V, 4400 mAh rechargeable Li-ion battery
Additional test functions Voltage, continuity, insulation, loop impedance and RCD testing AC current measurement with optional clamp; 2-wire, 3-wire, 3-wire ART and stakeless earth testing



General Specifications
Specification Details
Manufacturer Megger
Model MFT-X0
Product type Multifunction electrical installation tester
Display 480 x 272 high-contrast colour TFT bonded display
Display modes Full colour and monochrome black-on-white mode
User interface Colour-coded rotary dial, on-screen range selection, hot keys and second control dial
Graphical guidance Context help with circuit connection diagrams
Result display Confidence Meter™ progress bar, RCD ramp progress and insulation and continuity bar graphs
Voltage widget Displays L-N, L-E and N-E voltages
Wireless connectivity Bluetooth® Low Energy
Compatible software Megger CertSuite Installation for Android and iOS devices
Result management Circuit-tagged results, cloud synchronisation, certification and reporting through CertSuite Installation
Firmware updates User-upgradeable using a .BIN file on a microSD card
Safety category CAT III 600 V / CAT IV 300 V
Safety standards EN 61010, IEC 61010-031:2015 and IEC 61010-030
Live voltage protection Active live voltage protection to 600 V between test terminals; fuse protected to 1000 V
Live earth detection Indicates a live PE terminal and inhibits Loop or RCD tests
Ingress protection IP54 to IEC 60529
Standard power supply 8 x LR6 (AA) alkaline batteries in battery adaptor
Optional power supply 7.2 V DC, 4400 mAh rechargeable Li-ion battery pack
Optional battery charging time Approximately 2.5–3 hours, depending on ambient temperature
Optional battery charger Input: 110/230 V AC, 50/60 Hz, 1.3 A; output: 3 A, 8.4 V DC



Measurement and Accuracy Specifications
Specification Details
Voltage measurement range 0.001–2 V (mV range); 2–600 V (V range); 1000 V DC on non-CAT rated circuits
Voltage types True RMS, AC and DC
DC voltage range and accuracy 0 to ±1100 V; ±1% ±3 digits
AC voltage range and accuracy 0–600 V at 15–500 Hz; ±2% ±1 digit
Frequency accuracy, 15–99 Hz ±0.5% ±2 digits
Frequency accuracy, 100–500 Hz ±2.0% ±2 digits
Millivolt AC/TRMS 0–1999 mV at 50/60 Hz; ±1% ±3 digits
Millivolt DC 0–±1999 mV; ±1% ±3 digits
Phase sequence Automatic detection on valid three-phase supplies
Continuity resistance range 0.01 Ω–999 kΩ, auto-ranging
Continuity analogue scale 0 Ω–1 MΩ logarithmic scale
Continuity accuracy, 200 mA 0.01–99.9 Ω; ±3% ±2 digits
Continuity accuracy, 10 mA 0.01–99.9 Ω; ±3% ±2 digits. 100 Ω–999 kΩ; ±5% ±2 digits
Continuity test current 205 mA ±5 mA (0–2 Ω); 10 mA mode
Continuity test voltage 4–5 V DC
Continuity polarity Forward polarity
Continuity buzzer range Greater than 0.01 Ω to less than 2 kΩ
Continuity buzzer thresholds 0.3, 0.5, 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 100 and 200 Ω
Insulation resistance range 0.001–999 MΩ, auto-ranging
Insulation analogue scale 0.001 MΩ to greater than 1000 MΩ, logarithmic scale
Insulation test voltages 50 V DC to 1000 V DC; variable 50–999 V
Insulation accuracy, 1000 V 0.001–999 MΩ; ±3% ±2 digits
Insulation accuracy, 500 V 0.001–500 MΩ; ±3% ±2 digits. Above 500 MΩ; ±10%
Insulation accuracy, 250 V 0.001–250 MΩ; ±3% ±2 digits. Above 250 MΩ; ±10%
Insulation accuracy, 100 V 0.001–100 MΩ; ±3% ±2 digits. Above 100 MΩ; ±10%
Stabilised insulation output -0% to +2% +2 V at rated load or less
Insulation voltage display ±1% ±3 V
Insulation leakage current 0.1 µA–1.99 mA; ±10%
Insulation short-circuit current 1.5 mA nominal
Insulation test current 1 mA at minimum pass insulation values
Maximum capacitance 2 µF for a stable reading; 5 µF absolute limit
2-wire loop test modes Mode 1: Non-trip; Mode 2: High current; Mode 3: High resolution
2-wire loop resolution 0.01 Ω in non-trip and high-current modes
2-wire loop resistance range 0.01–1999 Ω
2-wire loop accuracy, 0.01–9.99 Ω ±2% ±5 digits
2-wire loop accuracy, 10.0–99.9 Ω ±10% ±5 digits
2-wire loop accuracy, 100–1999 Ω ±10% ±5 digits
2-wire loop supply voltage Non-trip: 48–280 V AC; high current: 48–550 V AC
2-wire loop frequency 45–65 Hz
2-wire loop three-phase testing High-current mode
3-wire non-trip loop test RCD-protected circuits, 15 mA test current
3-wire loop range and accuracy 0.01–9.99 Ω; ±2% ±5 digits. 10.0–199 Ω; ±10% ±5 digits
3-wire loop resolution 0.01 Ω
3-wire loop supply 48–280 V AC, 45–65 Hz, single phase
RCD types AC, A, AC(S), A(S), B, B(S)
RCD rated test currents 10, 30, 100, 300 and 500 mA; 650 mA, 1000 mA and variable for Type A/AC tests
RCD automatic sequence ½ x IΔn, 1 x IΔn, 2 x IΔn, 5 x IΔn, ramp and 0°/180°, customer configurable
RCD ramp testing range 10–1000 mA
RCD trip time accuracy ±10%
RCD ramp trip current accuracy ±5%
RCD fault voltage range 0–253 V
RCD fault voltage accuracy +5% to +15% ±0.5 V
RCD supply voltage 48–280 V
RCD supply frequency 45–65 Hz
Volt drop calculation Uses Zref (Ze) and circuit current (I-vdrop); accuracy depends on loop impedance accuracy



Mechanical and General Information
Specification Details
Operating temperature -10°C to +55°C
Storage temperature -25°C to +70°C
Operating humidity 90% RH maximum at +40°C
Length 274 mm
Width 96 mm
Depth 143 mm
Instrument weight 1.57 kg
Shipping weight 5.6 kg
Housing protection IP54, protected against dust ingress and water splashes
Vibration classification MIL-PRF-28800F, Class 2
Maximum operating altitude 2000 m
Pollution degree 2
Standard batteries 8 x LR6 (AA) alkaline batteries
Optional rechargeable battery 7.2 V DC, 4400 mAh Li-ion, with charge status indication
Optional Li-ion battery life More than 15 hours based on typical daily testing
Continuity tests per Li-ion charge Approximately 2000 tests
Insulation tests per Li-ion charge Approximately 1400 tests
Earth tests per Li-ion charge Approximately 1600 tests
Battery charging time 2.5–3 hours with optional Li-ion battery system
Controls Colour-coded rotary dial, hot keys and secondary rotary control
Carrying method Rugged, weather-proof carry case



Specification Notes
  • Insulation resistance accuracy changes with the selected test voltage and resistance range. At 500 V, 250 V and 100 V, readings above the respective stated thresholds have an accuracy of ±10%.
  • Three-wire non-trip loop testing uses the Confidence Meter™ and requires an L-N loop resistance below 12 Ω. The function is intended for circuits protected by an RCD rated at 30 mA or greater.
  • The CAT III 600 V / CAT IV 300 V safety rating is valid up to an altitude of 2000 m. The safety rating applies with respect to earth.
pdf
Megger MFT-X0 Multifunction Tester | Datasheet (Size: 341 KB)
What’s Included
  • Megger MFT-X0 Multifunction Tester
  • AA alkaline battery adaptor
  • 8 x LR6 (AA) alkaline batteries
  • Complete test lead set
  • Rugged, weather-proof carry case
  • Optional accessory: 7.2 V DC, 4400 mAh rechargeable Li-ion battery pack
Frequently Asked Questions
What is the Megger MFT-X0 Multifunction Tester used for?

The Megger MFT-X0 Multifunction Tester is designed for testing, inspecting and maintaining low voltage electrical installations. It supports voltage measurement, continuity testing, insulation resistance testing, loop impedance measurement and RCD testing. It is suitable for domestic, commercial and industrial electrical installations, including EV charge points and domestic solar PV systems.

Does the Megger MFT-X0 support non-trip loop testing?

Yes. The Megger MFT-X0 supports both 2-wire and 3-wire non-trip loop impedance testing. Its True Loop™ technology and patented Confidence Meter™ help provide stable, repeatable readings, even where electrical noise is present. Three-wire non-trip testing is designed for circuits protected by RCDs rated at 30 mA or greater.

What is the Megger Confidence Meter™?

The patented Confidence Meter™ displays the progress of loop impedance measurements and indicates the presence of electrical noise on the circuit. It helps reduce the effect of unwanted readings and supports consistent test results. On quiet circuits, non-trip loop tests typically take around seven seconds.

Can the Megger MFT-X0 test different types of RCD?

Yes. The Megger MFT-X0 supports Type AC, A, B, AC(S), A(S) and B(S) RCD testing. Users can select individual tests or create custom automatic test sequences, including ramp testing. This flexibility helps simplify RCD inspection and testing.

What insulation test voltages does the Megger MFT-X0 offer?

The Megger MFT-X0 provides insulation test voltages from 50 V DC to 1000 V DC, including variable settings from 50 V to 999 V. Its stabilised output voltage is controlled to -0% to +2% +2 V at rated load or less. This provides accurate test voltage control and helps reduce the risk of over-voltage damage to sensitive components.

Can the Megger MFT-X0 transfer test results to a mobile device?

Yes. The Megger MFT-X0 uses Bluetooth® Low Energy to transfer test results to compatible Android and iOS devices running Megger CertSuite Installation software. Results can be linked to circuit information and synchronised with the cloud-based application. CertSuite Installation also supports electrical certification, reporting and remote access for authorised users.

Does the Megger MFT-X0 have an upgradeable operating system?

Yes. The Megger MFT-X0 features a user-upgradeable operating system. Firmware updates can be installed by downloading the latest .BIN file from Megger onto a suitable microSD card. Once the card is inserted into the instrument, pressing TEST starts the automatic update process.

What type of batteries does the Megger MFT-X0 use?

The Megger MFT-X0 is supplied with an AA alkaline battery adaptor and eight LR6 (AA) alkaline batteries. An optional 7.2 V DC, 4400 mAh rechargeable Li-ion battery pack is also available. The rechargeable pack provides more than 15 hours of operation based on typical daily testing, with a charging time of approximately 2.5 to 3 hours.

Is the Megger MFT-X0 suitable for outdoor use?

Yes. The Megger MFT-X0 has an IP54-rated housing that protects against dust ingress and water splashes, making it suitable for indoor and outdoor use. It operates in temperatures from -10°C to +55°C and is supplied with a rugged, weather-proof carry case for protection and storage.

What safety rating does the Megger MFT-X0 have?

The Megger MFT-X0 has a CAT III 600 V / CAT IV 300 V safety rating, valid at altitudes up to 2000 metres. It also includes active live voltage protection to 600 V between test terminals and live earth detection. If the PE terminal is live when a loop or RCD test range is selected, the instrument indicates the condition and inhibits the test.

What is included with the Megger MFT-X0 Multifunction Tester?

The Megger MFT-X0 is supplied with an AA alkaline battery adaptor, eight LR6 (AA) alkaline batteries, a complete set of test leads and a rugged, weather-proof carry case. A rechargeable Li-ion battery pack is available as an optional accessory.

Can the Megger MFT-X0 be used for electrical certification?

Yes. The Megger MFT-X0 works with Megger CertSuite Installation software to support electrical certification and reporting. Test results can be transferred from the instrument to a compatible mobile device, linked to circuit details and synchronised with the cloud. CertSuite Installation is available through monthly or annual subscription packages.

NEW

Ask a question

Ask a question | Product pages
  • We'll only use your details to reply to your enquiry
