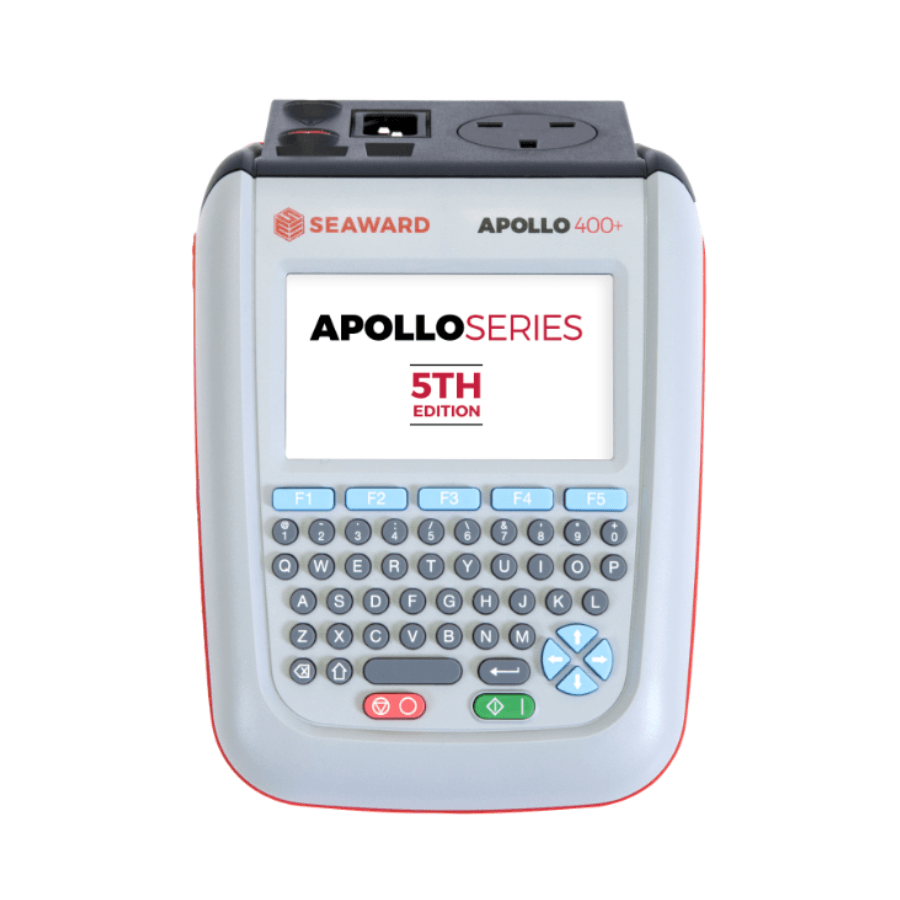

Seaward Apollo 400+ PAT Tester
The Seaward Apollo 400+ PAT Tester delivers fast and reliable electrical safety testing for everyday use. It supports a wide range of test routines and helps maintain compliance with current regulations. As a result, users can complete inspections with confidence and accuracy.
Built with efficiency in mind, the Seaward Apollo 400+ improves workflow through simple controls and a clear interface. It allows users to create custom test sequences, which helps reduce repeat work. In addition, stored data can be accessed quickly when needed.
Data handling is straightforward, so results can be downloaded using USB or sent remotely from site. This means engineers can return results without delay. Furthermore, the system works smoothly with PATGuard Cloud for reporting and record keeping.
Flexible Testing Control
Users can configure the Seaward Apollo 400+ to match specific testing needs. It supports both standard and custom menus, making it suitable for many environments. This flexibility helps reduce errors and improves consistency across jobs.
The tester also supports point to point measurements when required. This is useful for fixed equipment testing where more detail is needed. As a result, it adapts well to different levels of inspection work.
Efficient Data Management
The Seaward Apollo 400+ stores up to 2,000 test records internally, which supports mid volume workloads. It also works with barcode scanners and printers to improve asset tracking. This makes record management faster and more organised.
Battery and mains power options allow use in different locations without disruption. In addition, remote transfer features help send data back to the office quickly. Overall, it provides a simple and effective testing solution.
Key Features
- Complies with 5th Edition and BS EN50699 standards
- Performs a wide range of electrical safety tests
- Stores up to 2,000 test records internally
- User configurable test sequences available
- Supports USB data download to PC systems
- Remote data transfer via wireless connection
- Compatible with barcode scanners and printers
- Battery and mains powered for flexible use
- Supports point to point testing with lead
- Works with PATGuard Cloud reporting software
- Simple keypad input for asset data entry
- Designed for mid volume PAT testing tasks
Technical Specifications
| Manufacturer | Seaward |
| Product name | Apollo 400+ PAT Tester |
| Manufacturer part code | 380A930 |
| Compliance | 5th Edition Code of Practice and BS EN50699 |
| Test capacity | Up to 2,000 stored records |
| Power supply | Battery and mains powered operation |
| Data transfer | USB cable and wireless mobile transfer |
| Software compatibility | PATGuard Cloud system supported |
| Test types | Electrical safety and visual inspection tests |
| Test configuration | User configurable sequences available |
| Input method | Keypad and barcode scanner support |
| Printer compatibility | Bluetooth label printers supported |
| Label support | ID barcode printing capability |
| Point to point testing | Supported with additional test lead |
| Data management | Onboard storage and cloud integration |
| Typical use | Mid volume PAT testing environments |
Comparison Table
| Feature | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| Compliance | Yes | Yes | Yes |
| Memory capacity | Up to 2,000 | Up to 10,000 | Up to 50,000 |
| Bluetooth support | Yes | Yes | Yes |
| User accounts | No | Yes | Yes |
| Custom test sequences | 25 | 100 | 100 |
| Sites and locations | 50 | 100 | 100 |
| Point to point testing | Lead required | Yes | Yes |
| Camera | No | No | Yes |
| Data download | USB | USB | USB and flash drive |
Document Downloads
What’s Included
- Seaward Apollo 400+ PAT Tester
- Test Lead 1.2m with Alligator Clip, Red
- IEC Extension Lead, 0.5m
- Black Mains Lead
- USB Download Lead
- UKAS Calibration Certificate
- Quick Start Guide
Pro Kit Additions
- Test n Tag Pro Printer
- 1D Bluetooth Barcode Scanner
- 2x Pro labels 25mm
- 2x Pro labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Elite Kit Additions
- Test n Tag Elite Printer
- 2D Bluetooth Barcode Scanner+
- 2x Elite labels 25mm
- 2x Elite labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
*The 2D barcode scanner will only read 1D barcodes when used with the Apollo 400+
