Seaward PV200 Solarlink Test Kit

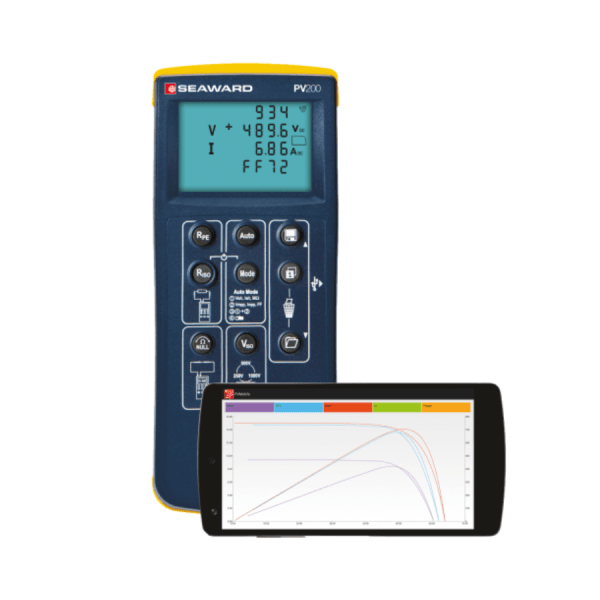

The Seaward PV200 Solarlink Test Kit offers an all-in-one solution for photovoltaic (PV) system testing. It is designed to meet the stringent requirements of BS EN 62446 and IEC 61829. This kit includes advanced features that streamline measuring and verifying PV system performance. It is ideal for installers and maintenance engineers. The kit is centred around the Seaward PV200 Solar PV Tester and I-V Curve Tracer. This multifunction tool allows for rapid and accurate testing at the press of a button, significantly reducing time on site.

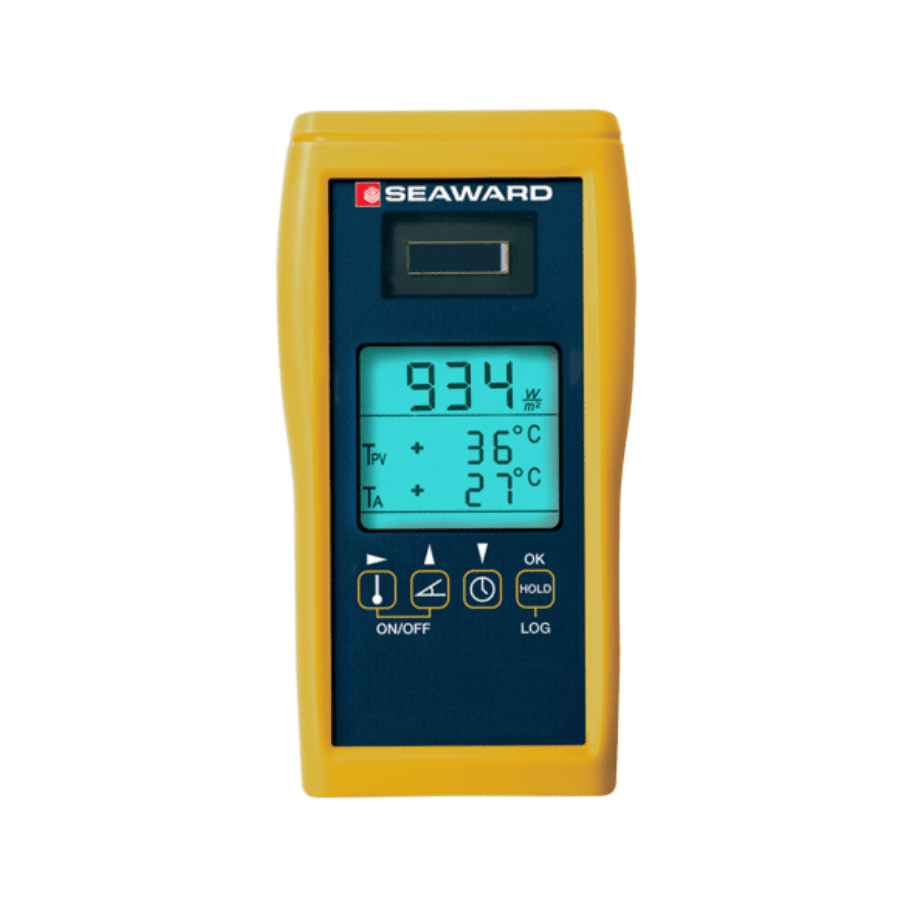

The PV200 kit can log I-V and power curve measurements. This makes tracking the performance of a PV installation over time simple. The test data can be analysed using Seaward’s SolarCerts Elements Software. This provides detailed reports and allows for comparisons with manufacturer data. The kit also includes the Seaward Solar Survey 200R Irradiance Meter. This device records essential environmental data such as irradiance levels, temperature, and roof incline. Data is wirelessly transferred to the PV200 for more in-depth analysis.
Seamless Data Integration with Seaward SolarCerts Software
The Seaward SolarCerts Elements Software enhances the PV200’s capabilities by allowing users to quickly create customised test reports and certificates. This software ensures that all testing complies with industry standards, including MCS and BS EN 62446. Additionally, the software’s robust database of Standard Test Conditions (STC) values ensures accuracy when assessing PV module efficiency, further assisting in the regular monitoring of system performance.
Both the PV200 tester and the Solar Survey 200R irradiance meter work in tandem, sharing data wirelessly to provide a comprehensive view of a PV system’s efficiency under standard conditions. This capability helps engineers accurately diagnose any issues, ensuring installations are performing at their best. With its easy integration into existing processes, the Solarlink Test Kit simplifies compliance testing, saving both time and resources.
By providing everything needed for PV system performance assessment, this kit eliminates the need for multiple testing tools, making it a cost-effective and time-saving solution. The PV200 tester’s quick-connect functionality allows users to complete all necessary tests with minimal effort, ensuring they test installations to the highest standard.
The Seaward PV200 Solarlink Test Kit is an invaluable tool for those looking to ensure their solar installations meet regulatory requirements and perform efficiently. With its range of features and advanced data logging capabilities, this kit stands out as a leading choice for professional PV system testing.
Key Features
- Compliant with BS EN 62446 and IEC 61829 standards
- Multifunctional PV200 tester includes I-V curve tracing and power curve logging
- SolarCerts Elements Software enables rapid report generation
- Wireless data transfer between PV200 and Solar Survey 200R irradiance meter
- Easy-to-use interface with all tests conducted at the push of a button
- PV200 tester logs I-V curves for long-term performance monitoring
- Integration with Seaward PVMobile app for detailed on-site analysis
- Solar Survey 200R measures irradiance, temperature, and roof incline
- Data can be converted to STC for precise comparison with manufacturer data

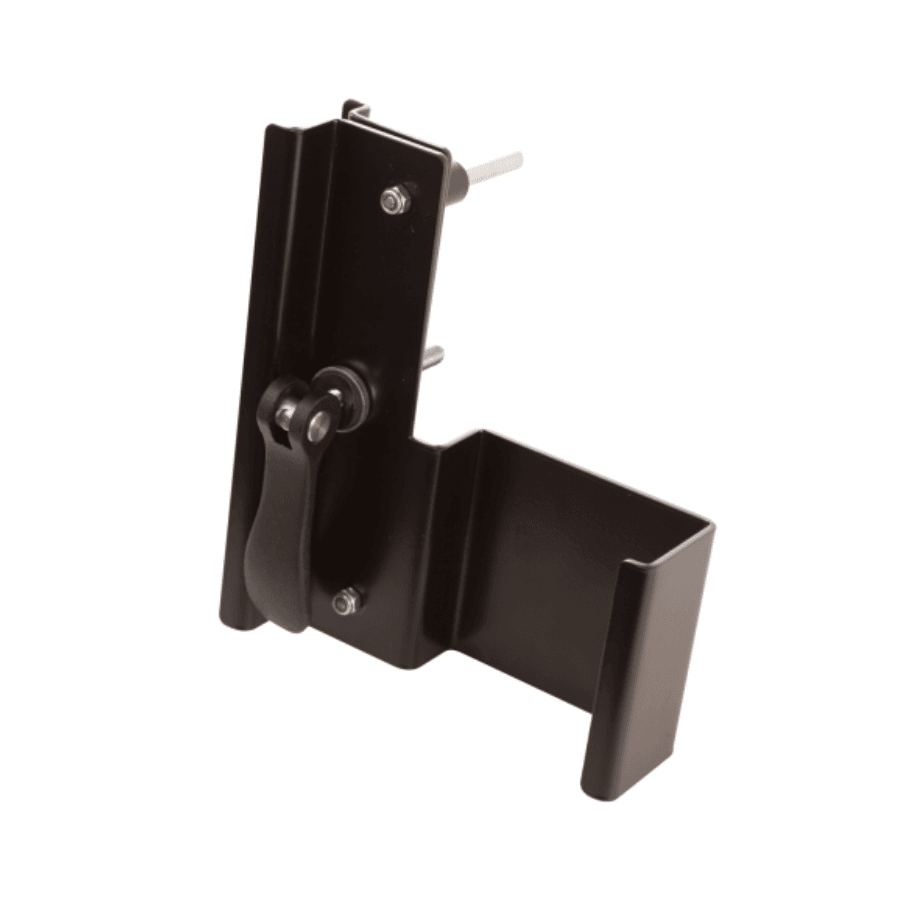

- Mounting bracket for Solar Survey 200R ensures accurate environmental readings
- Cost-effective solution by eliminating the need for multiple test tools
- Compact and rugged design for durability in field conditions

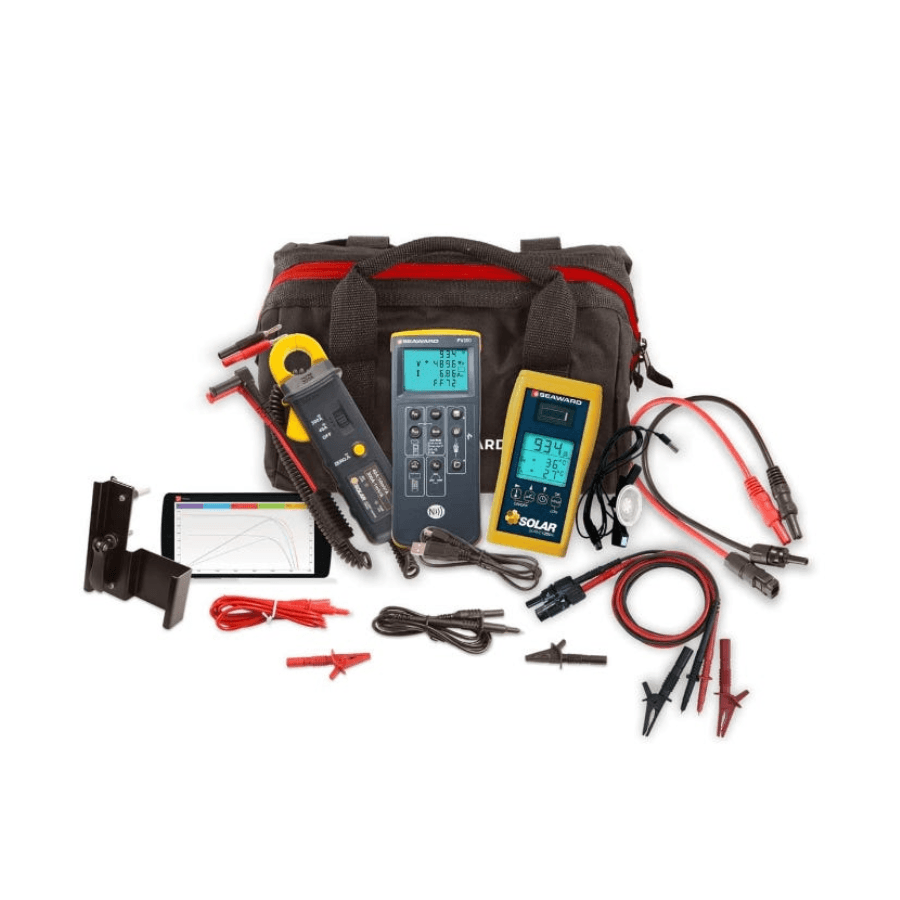

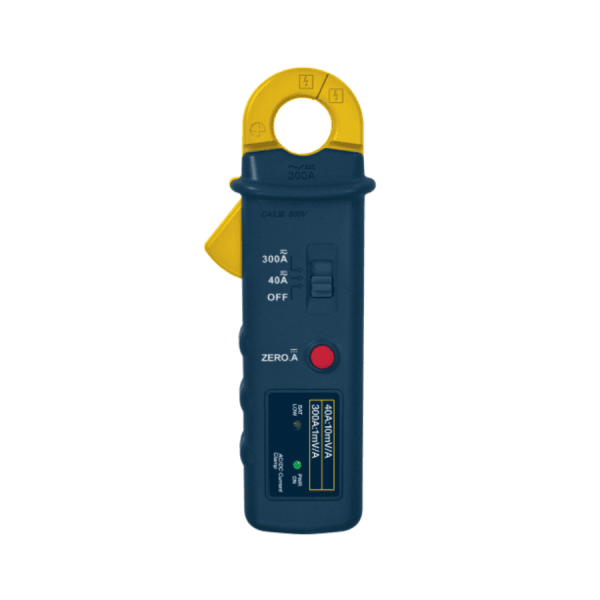

- Includes essential accessories such as test leads, current clamp, and carry bag
- Calibration certificates provided for both the PV200 and Solar Survey 200R
