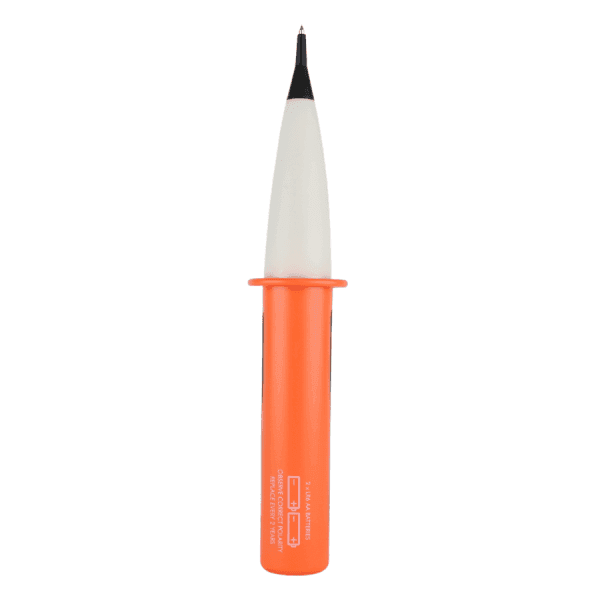

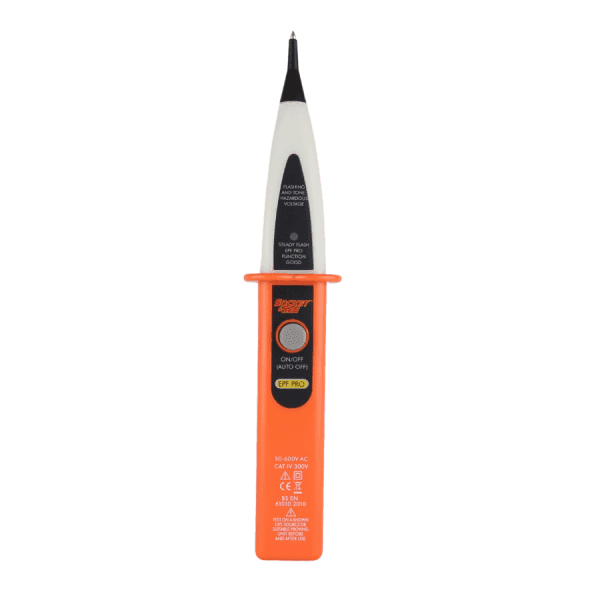

Socket & See EPF Pro Hazardous Voltage & Phase Finder

The Socket & See EPF Pro Hazardous Voltage & Phase Finder helps engineers and electrical workers identify hazardous voltages and live phases with confidence. It detects voltages from 50VAC to 600VAC and provides clear visual and audible warnings when voltage is present. As a result, users can work more safely in a wide range of environments.

Using direct contact technology with capacitive coupling, the unit offers a more reliable method of live phase identification than many non-contact devices. This approach helps reduce uncertainty when checking electrical systems. In addition, the design supports safer testing procedures during routine inspections and maintenance work.

Reliable Voltage Detection

The Socket & See EPF Pro Hazardous Voltage & Phase Finder helps users check electrical cabinets, street lighting columns, wooden poles and metal structures in demanding working environments. It detects hazardous voltages above 50VAC and immediately warns users with a flashing red LED and audible alarm. This clear indication allows users to identify potential electrical hazards quickly and confidently.

Users can operate the device easily while wearing full PPE, making it well suited to site work and safety-critical tasks. The design removes the need for touch pads during operation, which simplifies handling and improves usability in the field. As a result, workers can carry out voltage checks efficiently while following safe working procedures.

Designed for Site Conditions

Robust construction and an IP54 ingress protection rating help the unit withstand challenging working environments. The durable housing offers protection against dust and water ingress during normal use. As a result, it is suitable for both indoor and outdoor applications.

Two different set types are available to suit varying user requirements. The Socket & See EPF Pro Hazardous Voltage & Phase Finder is also designed to comply with recognised safety standards and includes a probe tip that conforms to HSE Recommendation GS38. This combination of safety and practicality makes it a valuable addition to an engineer’s toolkit.

Key Features

Measures AC voltage from 50VAC to 600VAC
Identifies live phases using direct contact technology
Uses capacitive coupling for improved phase detection certainty
Provides flashing red LED warning when voltage is detected
Audible alarm indicates hazardous voltage presence
Blue LED status indication confirms correct operation
Single beep monitoring function verifies electronics status
Operates effectively while wearing full PPE
No touch pads are required during operation
Suitable for electrical cabinets and distribution equipment
Designed for professional electrical safety applications
Supports voltage checks on metal, concrete and wooden installations
Available in two different set configurations

Technical Specifications

Product name	Socket & See EPF Pro Hazardous Voltage & Phase Finder
Function	Hazardous voltage detector and live phase finder
Voltage measurement range	50VAC to 600VAC
Live phase detection method	Direct contact using capacitive coupling
Voltage indication	Flashing red LED and audible warning
Operational status indication	Slow flashing blue LED
Electronics monitoring	Single beep confirmation

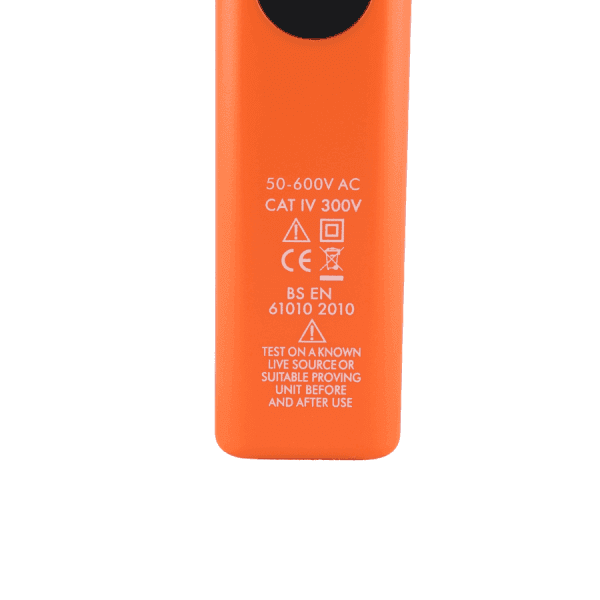

Safety standard	BS EN 61010-1:2010
Ingress protection rating	IP54
Operating temperature	-18°C to 55°C
Operating humidity	85% RH

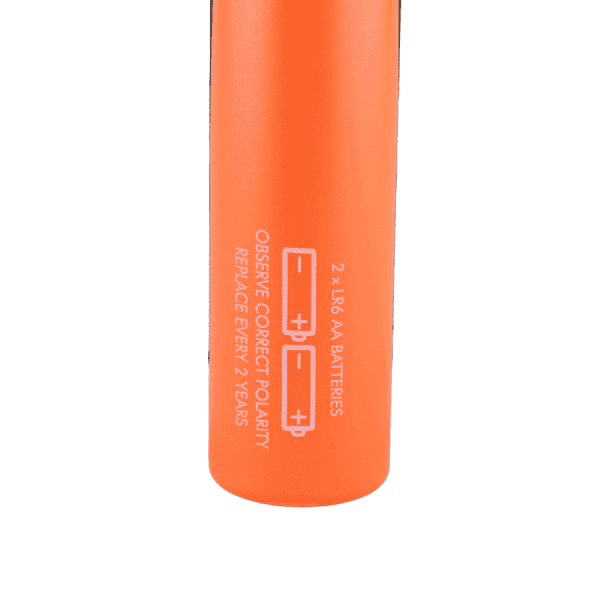

Power source	2 x LR6 AA alkaline batteries
Batteries supplied	No
Recommended battery replacement	Every two years based on BS EN 61557 duty cycle
Length	200mm
Width	22mm
Depth	30mm
Weight with batteries	88g
Probe compliance	Conforms to HSE Recommendation GS38
Suitable applications	Electrical cabinets, lighting columns, utility poles and general electrical installations
