Socket & See IRC CHECK Calibration Checkbox

Socket & See IRC CHECK Calibration Checkbox

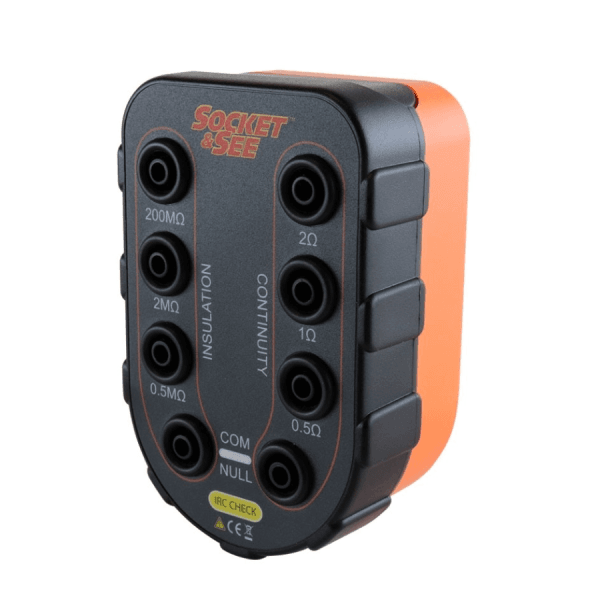

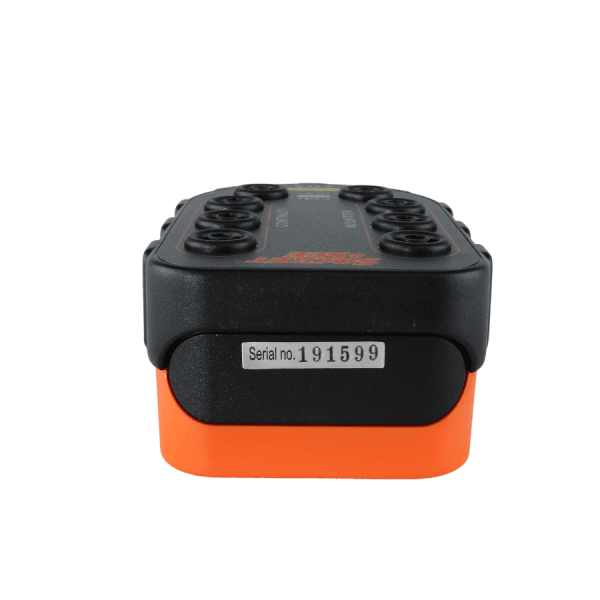

The Socket & See IRC CHECK Calibration Checkbox is a reliable tool designed to verify insulation and continuity accuracy for testers on-site. Using high-quality resistors, it ensures your test equipment provides consistent readings before carrying out essential inspections. It acts as a trusted reference point, giving confidence in the reliability of measurements and helping identify faults in the tester or the system under test.

Precision Testing for Accuracy

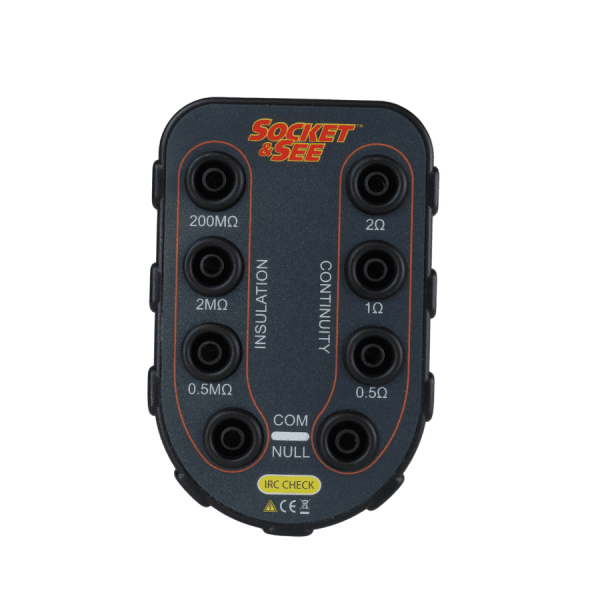

The Socket & See IRC CHECK features dedicated resistance values to check both insulation and continuity performance. With insulation test values of 0.5MΩ, 2MΩ, and 200MΩ, it confirms your tester’s accuracy up to 1000V. For continuity verification, resistance values of 0.5Ω, 1Ω, and 2Ω are included, ensuring precise measurements with 1% ± 20mΩ accuracy. It also supports testers with a null function, allowing lead resistance to be compensated before proving continuity.

Durable and Versatile Design

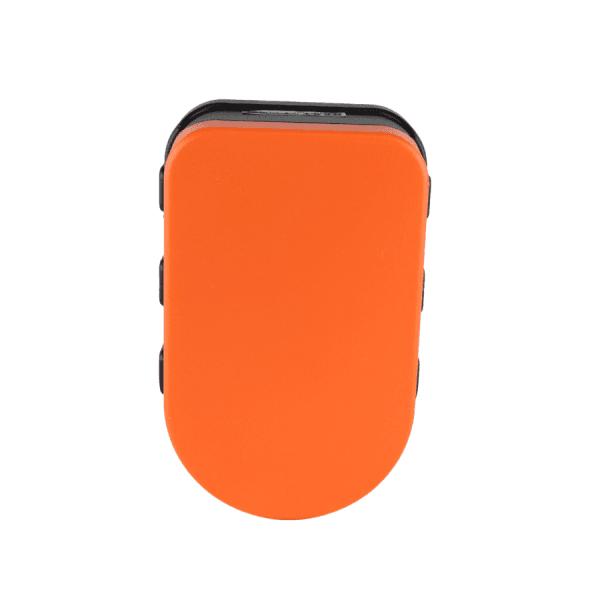

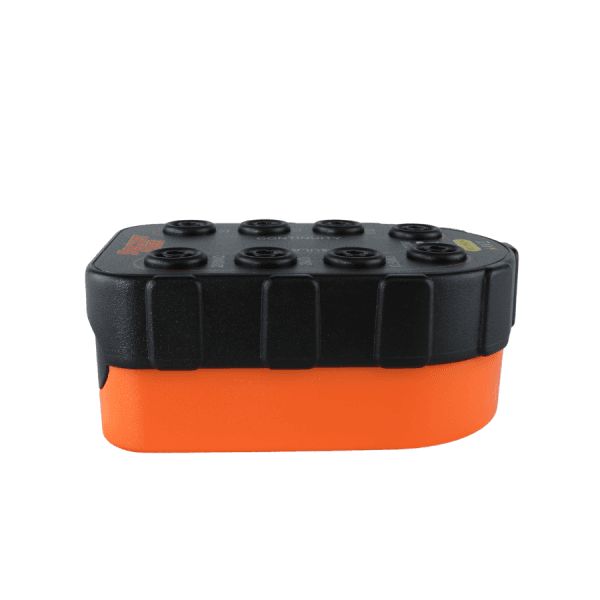

Compact and robust, the IRC CHECK is built to withstand daily use and can be easily stored in any tool bag or case. It features universal 4mm lead terminals, making it compatible with a wide range of testers, including the Socket & See MFT5000, as well as models from Fluke, Megger, Kewtech, Metrel, Di-Log, and Martindale. This ensures maximum versatility across different testing environments.

Designed for professionals who require accurate, consistent results, the Socket & See IRC CHECK Calibration Checkbox is an essential tool for maintaining test equipment reliability. Whether troubleshooting unexpected readings or verifying instrument accuracy before use, this calibration checkbox provides a simple and effective solution.

Key Features

• Verifies insulation and continuity accuracy for testers
• Helps determine if the tester or system under test is at fault
• Uses high-quality 2% resistors for precise calibration
• Insulation test accuracy of 1% (2% at 200MΩ)
• Continuity accuracy of 1% ± 20mΩ for reliable verification
• Supports null function to compensate for lead resistance
• Robust and compact design for easy transport and storage
• Universal 4mm lead terminals for wide tester compatibility
• Works with multifunction testers from Fluke, Megger, Kewtech, and more
• Insulation rating up to 1000V with a 1A current rating for continuity

Technical Specifications

What’s Included

• Socket & See IRC CHECK Calibration Checkbox
