Testo 115i Clamp Thermometer 0560 2115 02

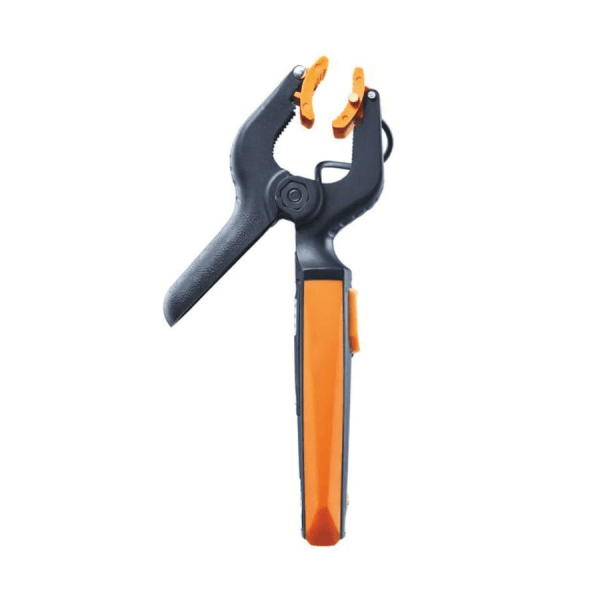

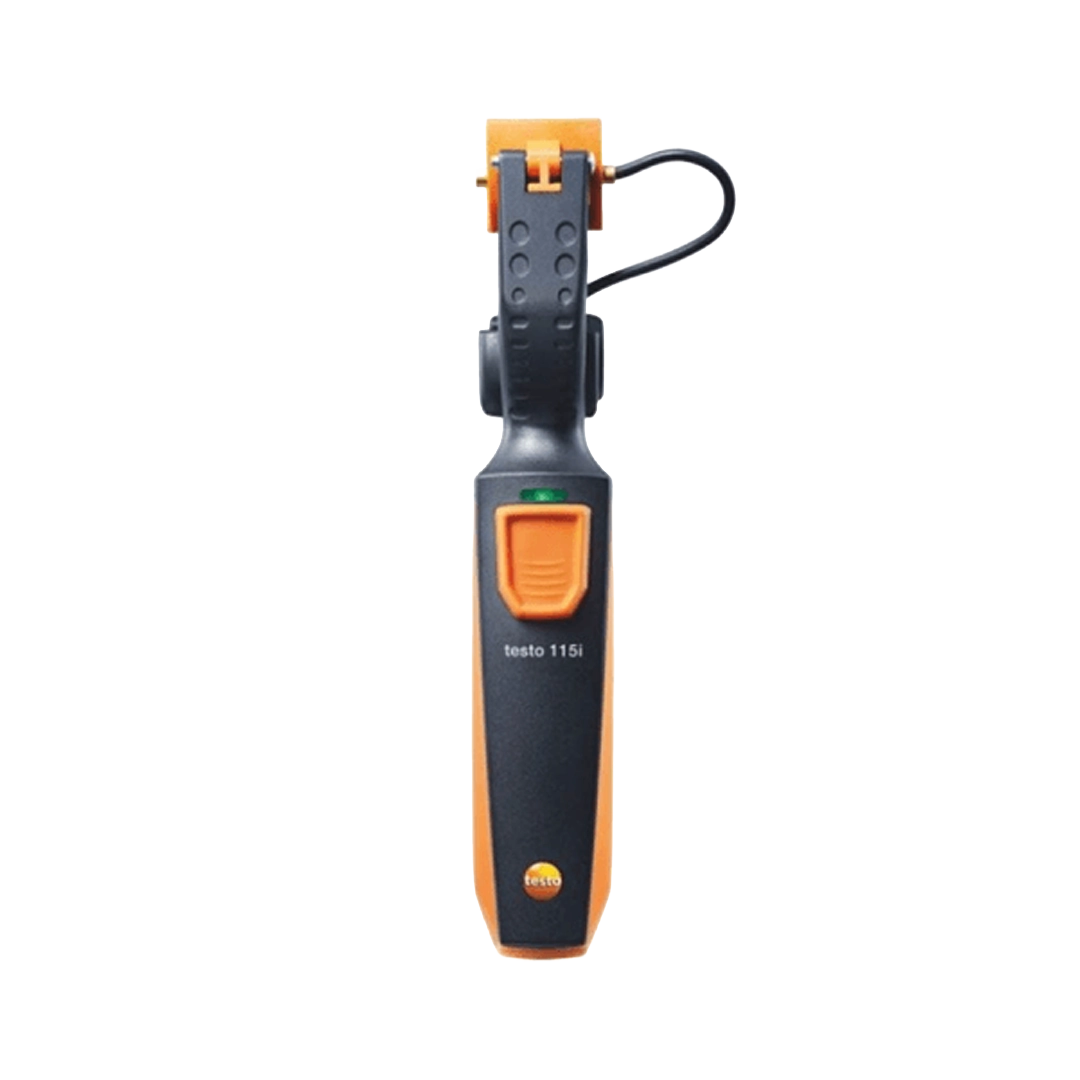

Testo 115i – Clamp Thermometer (Bluetooth) 0560 2115 02

Smart Phone + Smart Probes = Smart Work

Compact professional measuring instrument from the Testo Smart Probes series, for use with smartphones/tablets. Measurement data analysis and transmission via Smart Probes App.

The handy Bluetooth clamp thermometer testo 115i, in combination with a smartphone or tablet, is suitable for service and error detection on air conditioning and refrigeration systems, as well as for their installation. In addition to this, the measuring instrument can be used to measure flow and return temperatures. When working at temperature measurement locations which are far apart, the testo 115i makes the application considerably easier – thanks to a wireless connection to a smartphone or tablet.

And if the Bluetooth high-pressure measuring instrument testo 549i is used simultaneously, individual refrigeration system parameters such as superheating can be calculated. Users can read off their measurement values comfortably in the App installed on the end device. All measurement data are presented either as a diagram or in tabular form. The measurement protocols can then be directly sent as PDF or Excel files.

Strengths:

Compact professional measuring instrument from the Testo Smart Probes series, for use with smartphones/tablets
Measurement data analysis and transmission via Smart Probes App
Small, compact, and easy to transport

Testo Smart Probes App

The App turns your smartphone/tablet into the display of the testo 115i. The operation of the measuring instrument as well as the display of the measurement values take place by Bluetooth via the Testo Smart Probes App on your smartphone or tablet – independently of the measurement location. In addition to this, you can use the App to create measurement reports, add photos and comments to these, and send them by e-mail. The Testo Smart Probes App is completely free and is available for iOS from the App Store and Android via Google Play.

Device Compatability

• Requires iOS 7.1 or newer /
• Android 4.3 or newer
• requires mobile end device with
• Bluetooth 4.0

General Specifications

• Storage temperature -20 to +60 °C
• Operating temperature -20 to +50 °C
• Battery type 3 micro batteries AAA
• Battery life 240 hrs
• Dimensions 183 x 90 x 30 mm
• Warranty 2 years
• Sensor type NTC
• Measuring range -40 to +150 °C
• Accuracy ±1 digit ±1.3 °C (-20 to +85 °C)
• Resolution 0.1 °C
