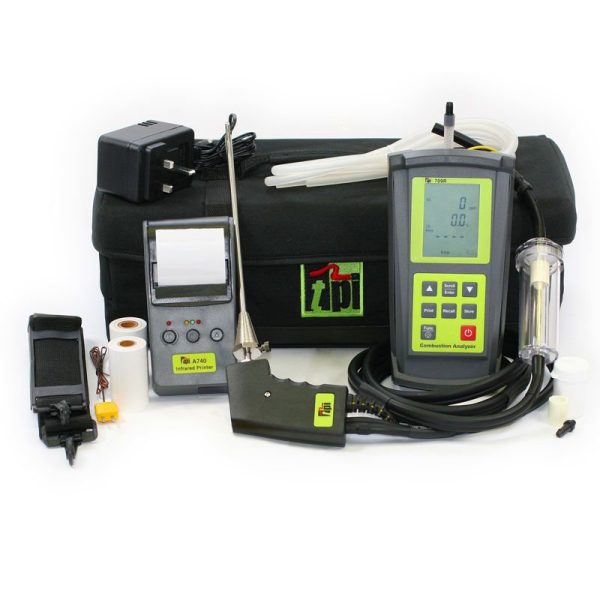

TPI 709R Combustion Flue Gas Analyser (Choice of Kit)

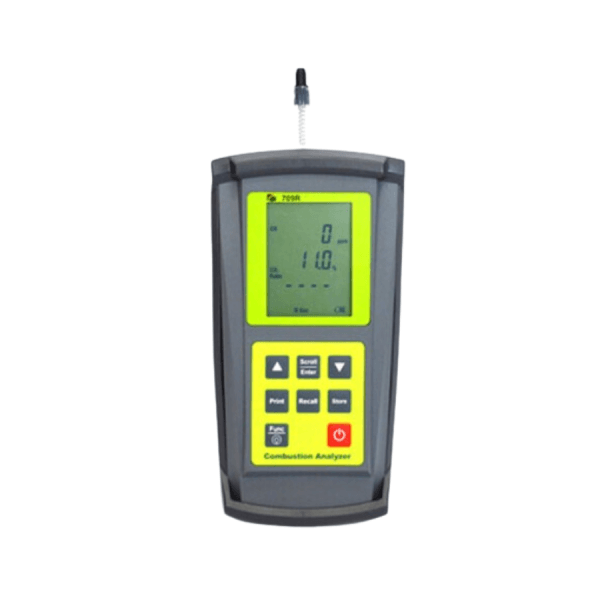

TPI 709R Combustion Flue Gas Analyser

The TPI 709R Combustion Flue Gas Analyser is designed for accurate flue gas analysis, measuring CO, O2, temperature, and pressure while calculating CO2, CO/CO2 ratio, efficiency, and excess air. With a large backlit display and an intuitive navigation system, it simplifies the process of monitoring and analysing flue gases in various settings. Its fixed-price annual servicing and 6-year warranty with long-life sensors make it an affordable and reliable tool for engineers.

Ideal for compliance with BS7967 standards, the 709R offers robust features, including a dual input differential manometer for pressure tests and a thermometer for flow and return temperature measurements. Its design includes a protective rubber boot and external water traps, preventing damage and minimising downtime.

This analyser supports multiple fuels, such as natural gas, LPG, and wood, ensuring versatility in use. Its safety feature prevents the device from shutting off when CO levels exceed 15ppm, safeguarding both the user and the equipment. Optional features like an IR printer make it easy to print live or stored readings for quick reporting.

Compliant with EN50379 and H2 ready, the TPI 709R is future-proofed to meet evolving standards. Its diagnostic software and technical helpline reduce downtime, helping engineers maintain optimal performance without unnecessary costs.

In summary, the TPI 709R provides a cost-effective and durable solution for flue gas analysis. It offers reliability, compliance with industry standards, and practical features, making it an excellent investment for engineers working with combustion systems

Key Features

Measures CO, O2, flue temperature and calculates CO2, efficiency, CO/CO2 ratio, and excess air
Dual input differential manometer for pressure tests and tightness checks
Protective rubber boot to safeguard against damage
Rechargeable battery housed in a separate compartment for heat protection
External water trap and unique in-lid filtration system prevent water ingress
Diagnostic software with technical support available to minimise downtime
Compatible with 10 fuel types including natural gas, LPG, and heavy oil
Optional IR printer to print live or stored readings
EN50379 and BS7967 compliant for industry standards
6-year warranty with annual servicing for reduced ownership costs

Reviews

There are no reviews yet.

Be the first to review “TPI 709R Combustion Flue Gas Analyser (Choice of Kit)”

You must be logged in to post a review.

Specification	Details
Measured Parameters	CO, O2, Flue Temperature
Calculated Parameters	CO2, CO/CO2 Ratio, Efficiency, Excess Air
Fuel Compatibility	Wood, Light Oil, Heavy Oil, LPG, Natural Gas
Dual Input Differential Manometer	Yes
Dual Input Differential Thermometer	Yes
Ambient CO Analysis	Yes
Compliance	EN50379, BS7967
Warranty	6 Years (subject to annual service)
Display	Backlit, easy to read
Battery Type	Rechargeable
External Water Trap	Yes, with unique in-lid system
Optional Accessories	IR Printer, CPA1 Probes, Gas Leak Detector
Calibration Requirements	Annual calibration required
Warranty Coverage	Sensors and components covered
