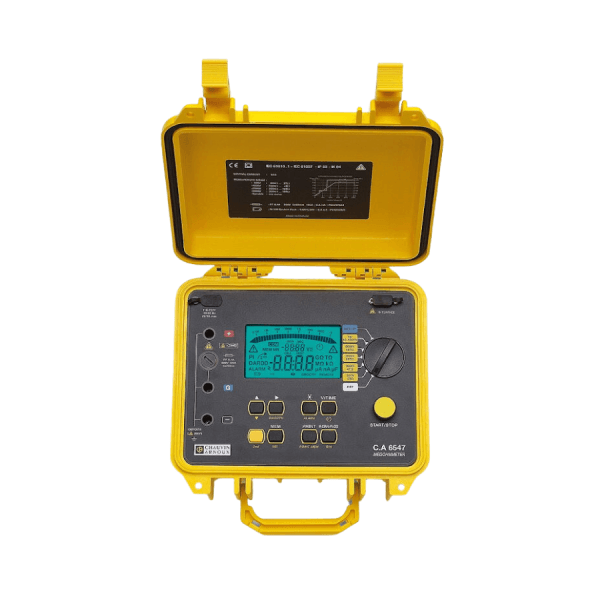

Chauvin Arnoux CA6547 5kV Insulation Tester

Chauvin Arnoux CA6547 5kV Insulation Tester

The Chauvin Arnoux CA6547 5kV Insulation Tester offers precise and reliable measurement of insulation resistance, making it a valuable tool for both qualitative and quantitative analysis. This robust megohmmeter is engineered to handle high voltage measurements, with a range spanning from 10 kΩ to 10 TΩ, ensuring it can manage a wide variety of insulation testing scenarios. The device’s large, backlit LCD screen with a digital display and bar graph provides clear readings, even in low-light conditions, facilitating ease of use in any environment.

Designed for versatility, the CA6547 features four fixed test voltages—500V, 1,000V, 2,500V, and 5,000V—alongside an adjustable test voltage setting that ranges from 40V to 5,100V in 10V or 100V increments. This allows users to tailor their testing parameters to the specific needs of their projects. Advanced functions like programmable test durations, test voltage locking, and a smooth function further enhance the tester’s adaptability, making it suitable for a range of professional applications.

Data management is streamlined with the CA6547’s built-in storage capability, allowing users to save several thousand measurements directly on the device. Additionally, the RS232 communication link enables seamless data transfer to a computer for further analysis using the Megohmeter software. This feature is particularly useful for professionals who need to keep detailed records or generate reports based on their testing results.

The CA6547 is built to withstand tough conditions, with an IP53-rated protective case that ensures durability during regular use. It is lightweight and portable, making it easy to transport between sites. The tester’s rechargeable NiMH battery provides up to 30 days of operation, ensuring it is ready to work when you are.

Key Features

• Insulation resistance measurement range from 10 kΩ to 10 TΩ
• Adjustable test voltage from 40V to 5,100V for tailored testing
• Pre-set test voltages include 500V, 1,000V, 2,500V, and 5,000V

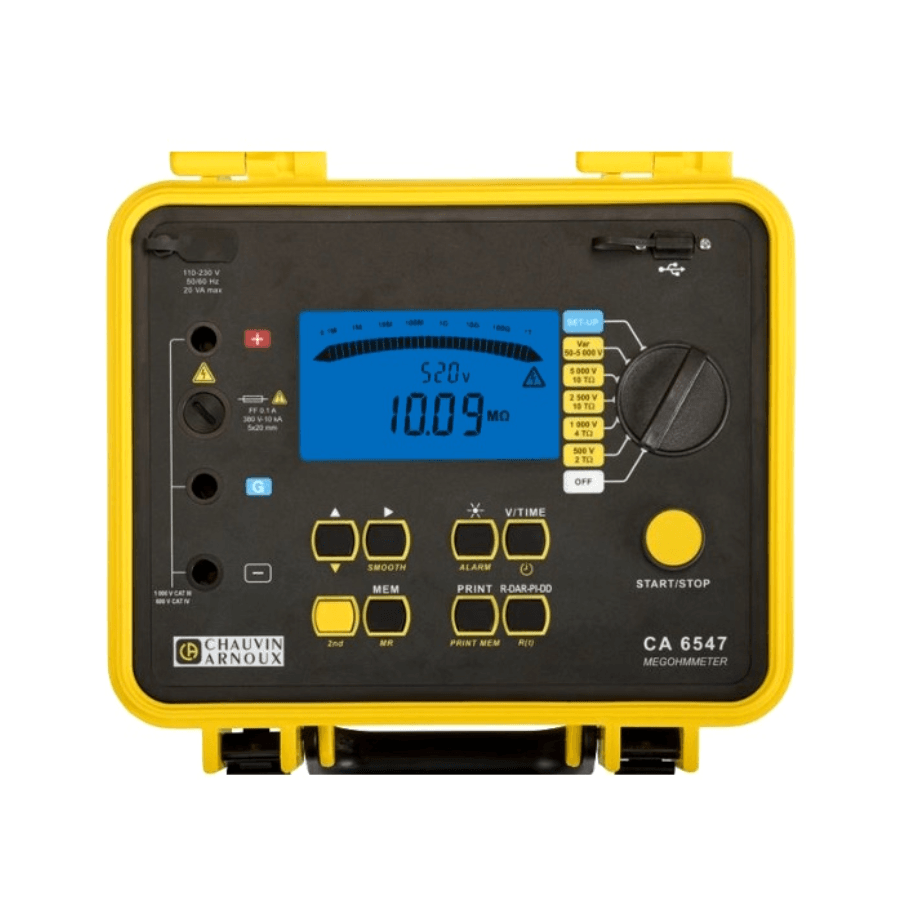

• Large backlit LCD screen with a clear digital display and bar graph
• Programmable test duration to avoid interference from transient currents
• Smoothing function for stabilising fluctuating readings
• RS232 port for data transfer to PC and optional DataView software
• Internal storage capacity for thousands of measurements
• Rechargeable NiMH battery with up to 30 days of operation

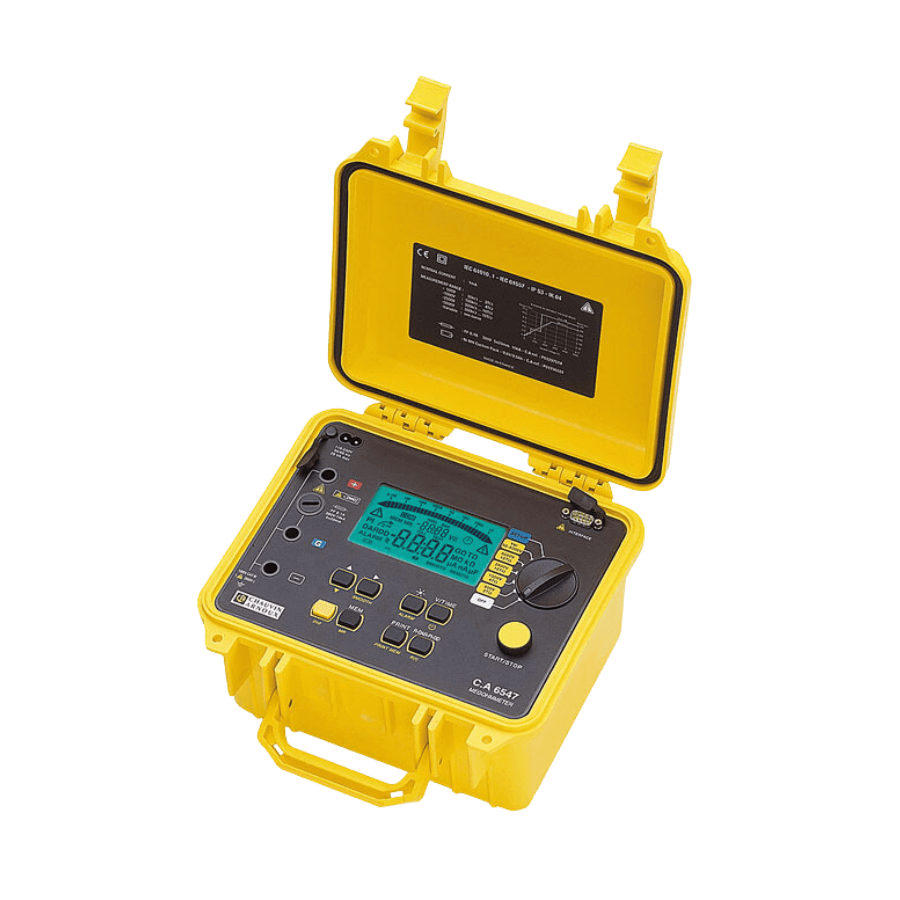

• IP53-rated protective case for durability in tough environments

Technical Specifications

What’s Included

• Chauvin Arnoux CA6547 Digital Megohmmeter
• 2 x 3m Safety Leads with HV Plug and Crocodile Clip (Red/Blue)
• 1 x 3m Guarded Safety Plug with HV Plug (Rear Connection) and a HV Croc Clip (Black)
• 1 x 0.35m Lead with Rear Connection (Blue)
• 1 x 2m Mains Power Cable
• 1 x Communication Lead
• 1 x Simplified Operation Manual
• 1 x Operating Manual
