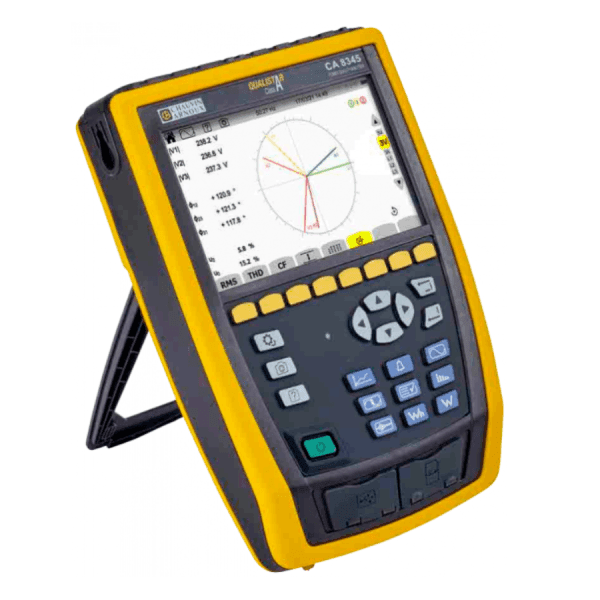

Chauvin Arnoux CA8345 Qualistar+ Power Quality Analyser
The Chauvin Arnoux CA8345 Qualistar+ Power Quality Analyser marks a significant advancement in the realm of power and energy quality analysis. Fully compliant with IEC 61000-4-30 Class A standards, this analyser stands out as a versatile tool, perfect for diagnosing electrical issues, auditing energy consumption, and monitoring power quality parameters. Its comprehensive feature set positions it as a formidable all-in-one solution for professionals.
Unmatched Measurement Precision
The CA8345 Qualistar+ excels in delivering an impressive array of measurement capabilities. It can accurately display voltages up to 1000V AC/DC, thanks to its automatic sensor detection and on-screen waveform presentation. The analyser extends its harmonics measurement up to the 63rd order and includes inter-harmonic subgroups up to the 62nd order. Users can effortlessly calculate voltage and current distortion, K factor, FHL, power factor, and displacement power factor among numerous other parameters.
Ergonomic Design for Enhanced Usability
Designed with the user in mind, the CA8345 Qualistar+ features an ergonomic build that facilitates a quick and efficient workflow. Its intuitive GUI supports multiple languages, and the large 7-inch colour LCD touchscreen ensures easy navigation, even in low-light conditions. Tactile buttons below the screen offer additional usability, making the unit practical for both gloved and bare-handed operation. With 5 voltage and 4 current inputs, alongside ethernet and USB connectivity options, this analyser is as versatile as it is powerful.
Product Specifications
| Inputs | Voltage/current, isolated |
| Voltage | 5 V to 1,000 Vac and Vdc |
| IEC 61000-4-30 (Ed 3) | Class A (Full) |
| Screen | 7″ colour LCD touch screen: 800 x 480 (WVGA) |
| Clock / GPS | Yes, built-in |
| Real-time mode | Yes |
| Sampling rate | Voltage 400 kSps / Current 200 kSps / Surge 2 MSps |
| Power mode | Yes |
| Energy mode | Yes |
| Unbalance mode | Composite |
| Harmonics mode | DC to 63rd order |
| Interharmonics mode | 0 to 62nd order |
| Trend recording | > 900 parameters |
| Alarm mode (types / number) | 52 / 20,000 |
| Carrier current detection mode | Yes |
| Inrush capture (number) | 100 |
| 2.5 µs transients (number) | No maximum (SD card) |
| Shockwaves | Up to 12 kV sampled every 500ns |
| EN50160 monitoring mode | With PAT3 software |
| USB communication | Yes |
| SD card | Accessible, external |
| Ethernet | Yes |
| Wifi | Yes |
| Web server | Yes |
| USB key port (Type A) | Yes |
| Battery cartridge | Li-ion – 5800 Ah |
| IEC 61010 safety | CAT IV 1000V |
| Protection | IP54 |
| Operating temperature | [+0 °C; +40 °C] |
| Environmental compliance | IEC 61557-12 & IEC 62586 |
| Dimensions (H x L x D) | 200x285x55 mm / 1.9 kg |
Whats Included
- Safety datasheet
- 5 reeling boxes
- Shoulder bag
- USB A/B cable 1.80 m long
- Multilingual Quick Start Guide
- Set of 5 banana leads and crocodile clips
- Set of identification inserts and rings
- Manufacturer’s verification (Calibration Certificate)
- Removable wrist strap
- Magnetic hook
- SD memory card
