Chauvin Arnoux F407 Harmonic Clamp Meter

Chauvin Arnoux F407 Harmonic Clamp Meter

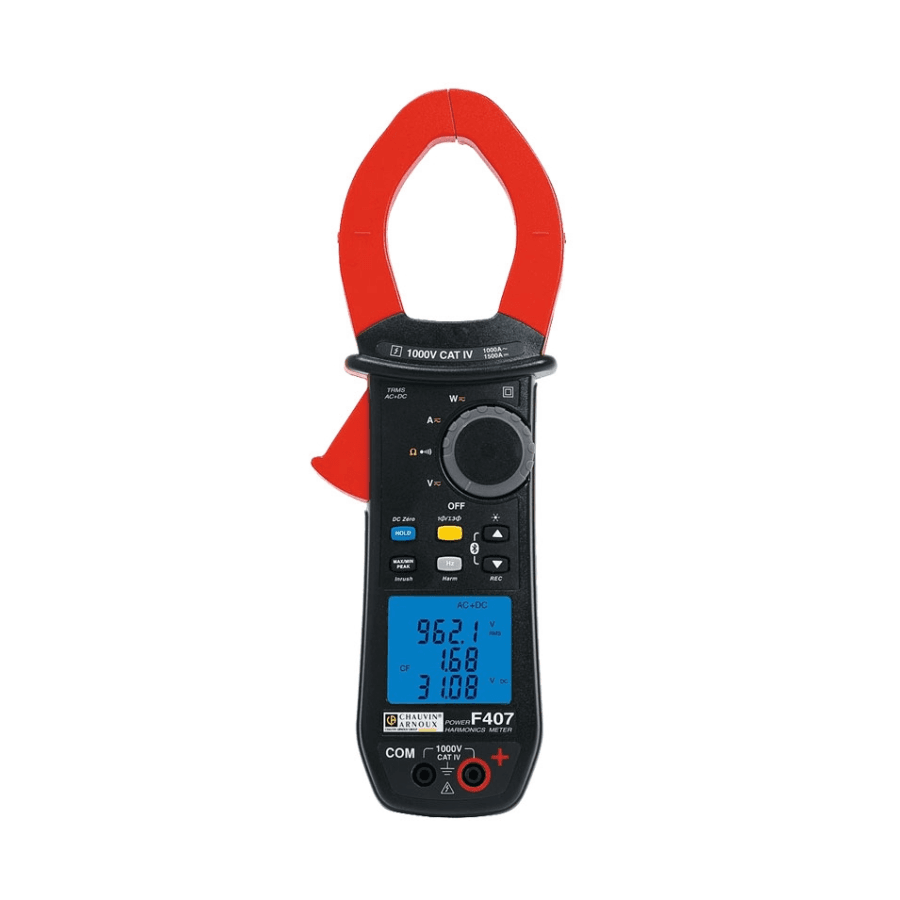

The Chauvin Arnoux F407 Harmonic Clamp Meter is built for professionals who need accurate electrical measurements in demanding environments. It combines current, voltage and power analysis functions in one compact instrument. As a result, users can carry out testing, maintenance and fault-finding tasks with confidence.

Designed for low-voltage and medium-power systems, this meter supports work in industrial facilities, electrical installations and transport applications. The large 60mm jaw opening makes it easy to clamp around a wide range of conductors. In addition, automatic AC/DC detection helps simplify everyday testing.

Advanced Measurement Performance

Using a 12-bit True RMS acquisition system, the Chauvin Arnoux F407 Harmonic Clamp Meter delivers reliable readings across different signal types. It measures AC current up to 1000A and DC current up to 1500A peak. Furthermore, harmonic analysis up to the 25th order allows users to assess power quality and identify distortion issues.

Power analysis functions include watts, volt-amperes, reactive power, power factor and displacement power factor measurements. True InRush current measurement also helps capture start-up currents from motors and other loads. Therefore, the instrument is suitable for both troubleshooting and system verification.

Built for Daily Use

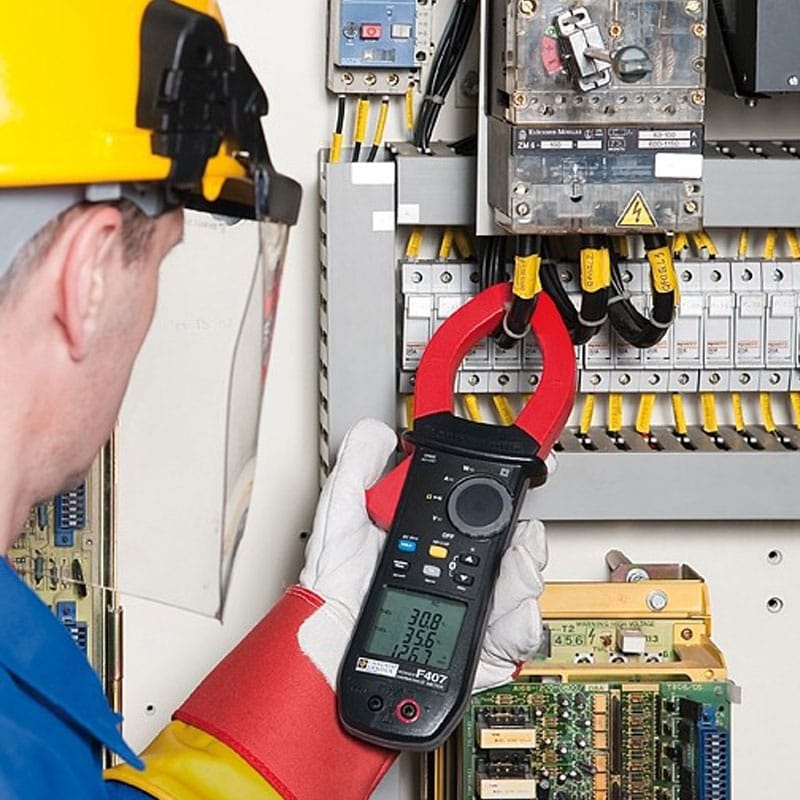

A large backlit 10,000-count display provides clear visibility in bright and low-light conditions. The rotary switch offers one function per position, making operation straightforward even when wearing protective gloves. Shock-resistant construction further improves durability during routine site work.

For greater efficiency, the Chauvin Arnoux F407 Harmonic Clamp Meter includes Bluetooth connectivity and PC software support for data transfer and analysis. The internal memory stores up to 3,000 measurements for later review. Two different set types are available, allowing users to choose the package that best suits their application requirements.

Key Features

• 12-bit True RMS digital acquisition system
• Measures AC current up to 1000A
• Measures DC current up to 1500A peak
• Voltage measurement from 200mV to 1000V AC/DC
• Analyses active, reactive and apparent power
• Supports power factor and displacement power factor calculations
• Harmonic analysis up to the 25th order
• True InRush current measurement function
• Large 60mm jaw opening for larger conductors
• Automatic AC/DC detection for faster operation
• Bluetooth communication for data transfer
• Stores up to 3000 measurement records
• Backlit 10000-count display
• CAT IV 1000V safety classification
• IP54 environmental protection rating
• Auto shut-off function to conserve battery life

Technical Specifications

Comparison Table

Document Downloads

What’s Included

• Chauvin Arnoux F407 Harmonic Clamp Meter
• Set of banana leads
• Set of crocodile clips
• Set of test probes
• PC communication software
• Operating manual
