Di-Log DL9130EVKIT 18th Edition EVSE Adaptor Kit

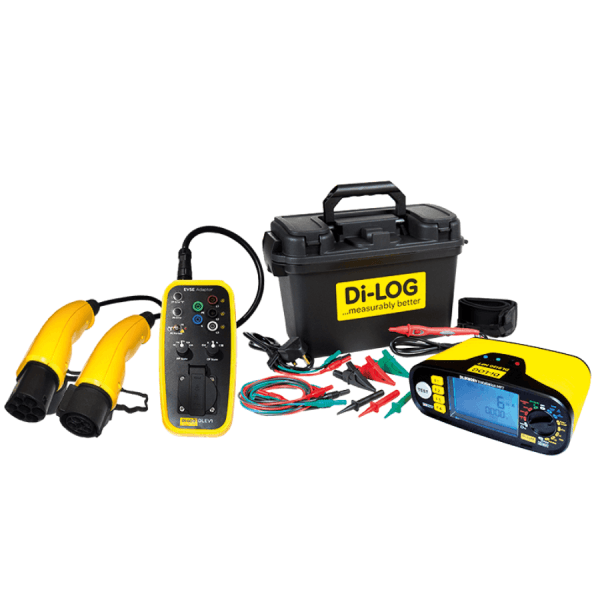

The Di-Log DL9130EVKIT 18th Edition EVSE Adaptor Kit equips service engineers with an essential tool for installing and testing electric vehicle (EV) charge points. The kit includes the advanced DL9130EV Multifunction Tester and the versatile DLEV1 Charge Station Adaptor. Together, they provide a comprehensive solution that upholds the highest safety standards. This kit also ensures compliance with BS EN 61557 regulations.
The DL9130EV offers a robust array of testing functions, including a 6mA pure DC test for RDC-DD verification, an automatic EV testing sequence, and both Rmax and Zmax features to capture critical continuity and loop test readings. The device is equipped with intelligent auto-detection technology that identifies whether a two- or three-wire high current loop test is being conducted, streamlining the testing process and ensuring accuracy without manual intervention.

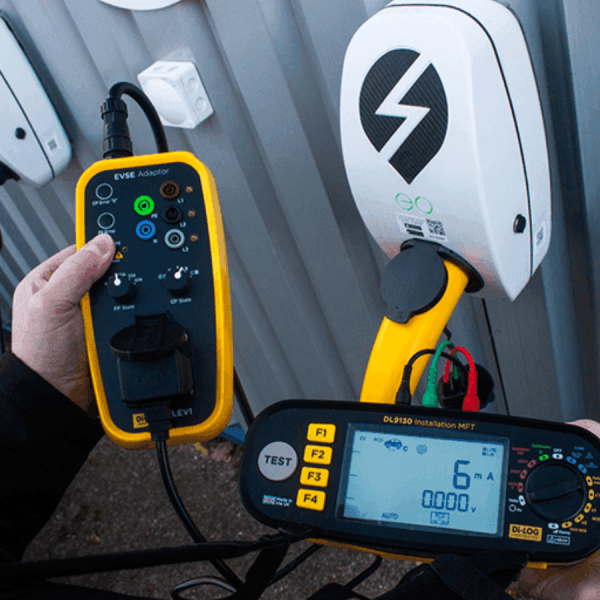

The DLEV1 adaptor enhances the testing experience by simulating the necessary Proximity Pilot (PP) and Control Pilot (CP) States to energise both free-standing and wall-mounted EV chargers. Its additional features, such as CP signal output, load connection, and a 13A socket for inline load testing, make it an invaluable tool for comprehensive EVSE verification.
The Di-Log DL9130EVKIT features a unique RGB colour-changing display that visually indicates pass/fail conditions. This makes it a powerful and user-friendly solution. It is ideal for engineers responsible for ensuring the safety and efficiency of EV charge station installations.
Key Features
- 6mA pure DC test for verifying RDC-DD functionality
- Automatic EV testing sequence for DC protection verification
- Rmax captures maximum R1+R2 continuity test readings
- Zmax records maximum Zs readings during testing sessions
- Intelligent auto-detection for two- or three-wire loop tests
- Loop impedance and PSCC tests that won’t trip any RCD/RCBO
- RGB screen that changes colour to indicate pass/fail status
- Integrated phase rotation and phase-to-phase loop testing
- Type A, AC, B & selective RCD testing capability
- Variable RCD test feature allows custom mA values
- Auto start loop and continuity tests with secondary display
- Protected against damage from accidental phase cross-connections
