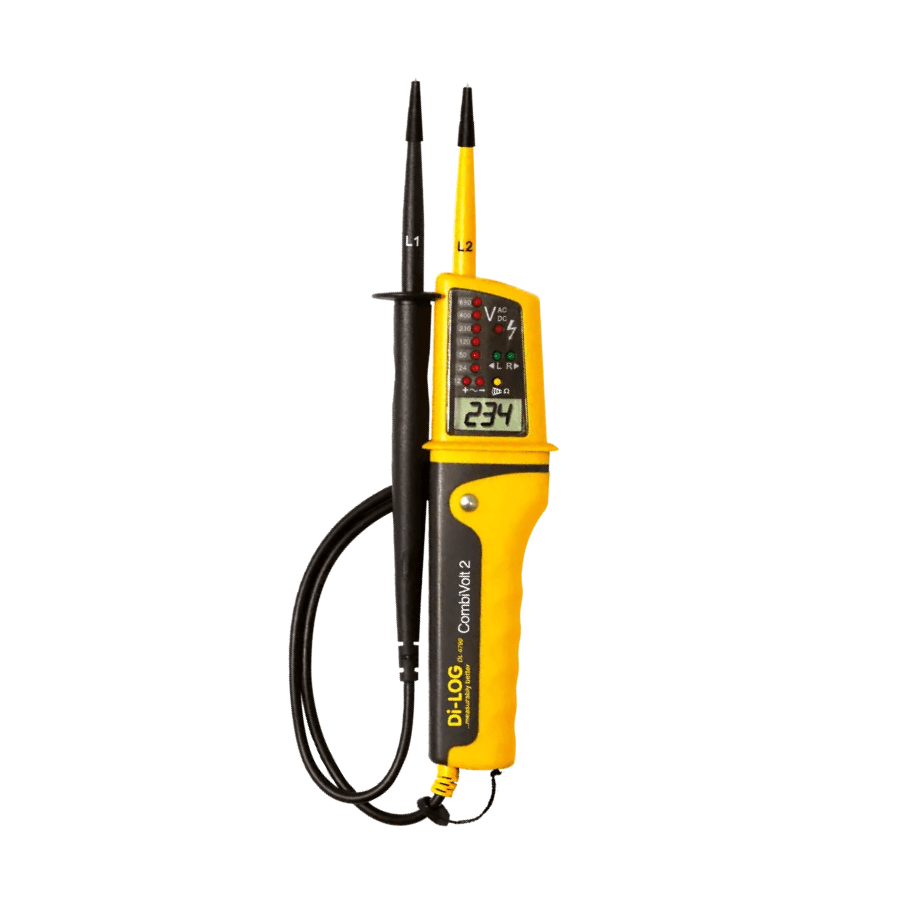

Di-Log DL6790 CombiVolt 2 Voltage Indicator

Di-Log DL6790 CombiVolt 2 Voltage Indicator

The Di-Log DL6790 CombiVolt 2 Voltage Indicator is designed for safe and reliable voltage testing in demanding environments. It offers a strong build with an ergonomic design that ensures comfortable handling, even during extended use. With its wide measuring range, this unit supports both AC and DC voltage checks without compromising accuracy. Every reading is displayed clearly, supported by both digital indication and LED resolution.

Flexible Testing Performance

The Di-Log DL6790 provides full functionality for continuity testing, phase rotation, and polarity detection. These functions operate automatically, removing the need for manual switching between modes. As a result, users save time while maintaining accurate measurements. An acoustic and visual signal confirms continuity, giving clear results in any working condition. The tester is also compliant with GS38 safety standards, which makes it a dependable choice for professional use.

Reliable in All Conditions

This tester continues to deliver voltage indication even when the batteries are discharged, ensuring reliable use at all times. Its safety rating of CAT IV 600 V and compliance with IEC and EN standards give peace of mind when testing across a wide range of applications. The Di-Log DL6790 also supports single pole detection from 100 V upwards, adding to its versatility. In addition, the tester will not trip any RCD when checking between live and earth connections.

The Di-Log DL6790 CombiVolt 2 Voltage Indicator is built to last, with durable housing that protects against dust and water to IP65. Whether testing frequency, checking continuity, or confirming phase rotation, it offers precision and reliability in one tool. This makes it a practical solution for electricians and technicians who need consistent performance.

Key Features

• Measures AC and DC voltage between 12 V and 690 V
• Provides continuity testing with clear light and sound signals
• Supports phase rotation testing with wide frequency range
• Single pole phase detection available from 100 V upwards
• Automatic switching between voltage and continuity
• Delivers reliable readings even with discharged batteries
• Ergonomic and rugged housing for professional use
• Will not trip RCDs when testing live to earth connections
• Conforms fully to GS38 and EN 61243-3 safety standards
• Clear digital voltage indication with additional LED display

Technical Specifications

What’s Included

• Di-Log DL6790 CombiVolt 2 Voltage Indicator
• 2 × 1.5 V LR03 batteries
• User instructions
