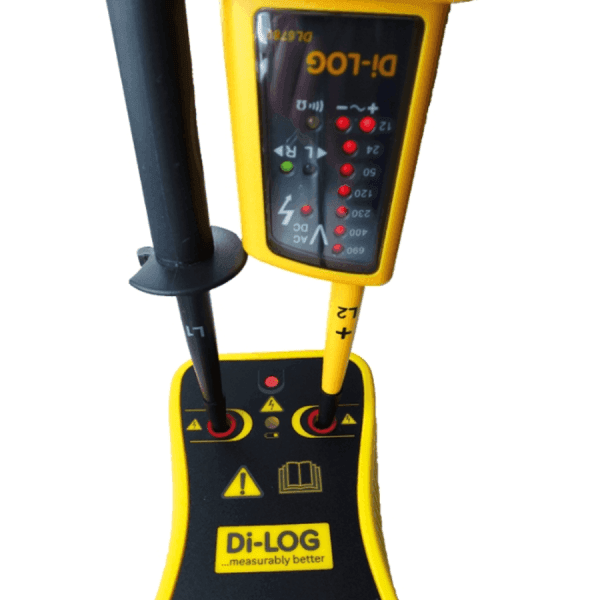

Di-Log PU690 690V AC Proving Unit
The Di-Log PU690 690V AC Proving Unit is an essential tool for field safety checks of voltage indicators, ensuring reliable operation before engaging with live circuits. With its capability to deliver a consistent 690V AC output, this proving unit verifies the functionality of 2 pole voltage indicators, even in environments with unstable power sources. Its inbuilt load of 200k ohms limits the current to a safe 3.5mA, providing secure and accurate testing conditions.
Designed for compatibility with both high and low impedance devices, including multimeters and voltage testers, the PU690 ensures versatile application. The unit features ultra-bright LEDs that give clear visual indications of high voltage presence and low battery status, enhancing user safety and confidence during testing. The compact and lightweight design makes it a convenient addition to any toolkit, promoting ease of use and portability.
The Di-Log PU690 is rated CAT II 750V, emphasising its safety and reliability. Whether you’re a professional electrician or a maintenance technician, this proving unit is indispensable for verifying equipment before use, thereby preventing potential electrical hazards. Its robust construction and precise performance make it a trustworthy choice for ensuring operational safety in the field.
Key Features
- 690V AC output for reliable voltage indicator testing
- Compatible with high and low impedance devices
- Bright LED indicators for high voltage and low battery
- CAT II 750V safety rating for secure operation
- Compact and lightweight for easy portability
- Ideal for verifying voltage indicators in unstable power environments
- Ensures accurate functionality of 2 pole voltage indicators
- Limits output current to <3.5mA for safe testing
- Inbuilt 200k ohms load to maintain testing accuracy
- Suitable for professional electricians and maintenance technicians
Technical Specifications
- Output voltage: 690V AC
- Frequency: 50 Hz
- Output current: <3.5mA
- Safety rating: CAT II 750V
- Indication type: Bright LED indicators
- Load resistance: 200k ohms
- Device compatibility: Multimeters and voltage testers
- Impedance compatibility: High/low impedance devices
- Battery indication: Low battery visual alert
- Unit dimensions: Compact and lightweight design
