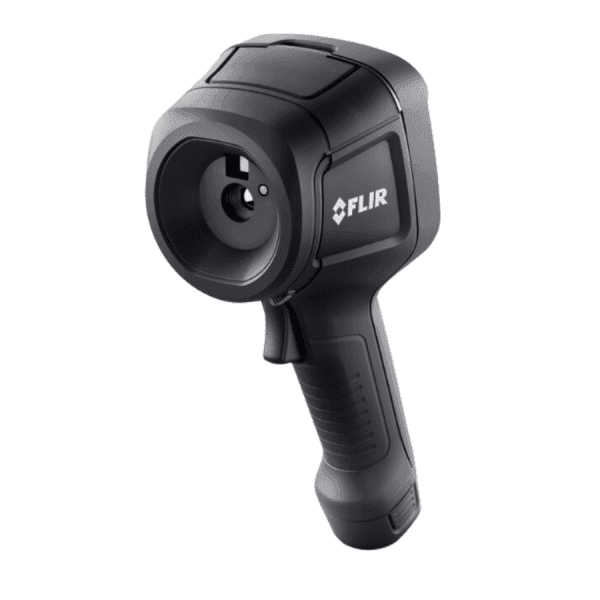

Flir E8 XT Thermal Imaging Camera with Wi-Fi
The E8-XT from Flir is the highest spec camera in the Flir Ex range, boasting 320 x 240 thermal resolution and thermal sensitivity of <0.05°C. Combined with MSX technology, the Flir E8-XT reports accurate temperature measurements and a clear thermal image for easy interpretation of results.
Flir Tools, the free to download app, can further enhance your images by zooming in, changing the colour palette, save images to your mobile device and allow the remote taking of images and video. You can also create professional looking reports using the free to download Flip Tools app and email them straight to you customer or colleagues.
Despite the Flir E8-XT high end features, it is still very simple to use. The pistol grip style means images can be taken using just one hand. Responsive soft touch buttons allow for easy menu navigation. The Flir E8-XT weighs less than 600g making it a great ‘go anywhere’ tool and the perfect addition to any toolbox.
Features and benefits of the Flir E8-XT
- Large IR detector – 320 x 240 IR resolution with <0.06°C thermal sensitivity.
- Ease of use – Simple point and shoot pistol grip style thermal camera
- Internal storage – Store at least 500 sets of images (Simultaneous storage of images in IR, visual and MSX)
- Emissivity correction – Preset emissivity options and correction for accurate temperature measurement.
- MSX technology – Blends both visual and IR images for better definition.
- Lightweight and rugged – Weights less than 600g and drop tested from 2 meters.
- Peace of mind – 2-year warranty coverage on camera, 5 years on batteries, 10 years on detector.
The Flir E8-XT has many useful applications including
- Locating blocked water / drainage pipes
- Identifying faulty double glazed units
- Different current loads on 3-phase supplies
- Indicating fluid levels in single skin tanks
- Misaligned rotating couplings and drive shafts
Specifications
Image and optical data | E5-XT | E6-XT | E8-XT |
IR Resolution | 160 × 120 (19,200 pixels) | 240 × 180 (43,200 pixels) | 320 × 240 (76,800 pixels) |
Thermal sensitivity/NETD | <0.10°C (0.27°F) / <100 mK | <0.06°C (0.11°F) / <60 mK | <0.05°C (0.09°F) / <50 mK |
Spatial resolution (IFOV) | 5.2 mrad | 3.4 mrad | 2.6 mrad |
Field of view (FOV) | 45° × 34° | ||
F-number | 1.5 | ||
Image frequency | 9 H | ||
Focus | Focus-free | ||
Detector data | |||
Detector type | Focal Plane Array (FPA), uncooled microbolometer | ||
Spectral range | 7.5–13 μm | ||
Image presentation and modes | |||
Display | 3” 320 × 240 color LCD | ||
Image adjustment | Automatic adjust/lock image | ||
Image modes | Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera | ||
Color palettes | Iron, Rainbow, Black & White | ||
Measurement and analysis | |||
Object temperature range | -20°C to 400°C (-4°F to 752°F) in two ranges |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) | ||
Spotmeter | Center spot | ||
Area | Box with max/min | ||
Isotherm | Above alarm, below alarm | ||
Data communication and interfaces | |||
Interfaces | USB Micro: data transfer to and from PC and Mac device | ||
Wi-Fi | Peer-to-peer or infrastructure | ||
File format | Standard JPEG, 14-bit measurement data included | ||
General | |||
Operating temperature range | 15°C to 50°C (5°F to 122°F) | ||
Battery | Rechargeable 3.6 V Li ion battery | ||
Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use | ||
Battery charging time | 2.5 hours to 90% capacity in camera. 2 hours in charger | ||
Drop | 2 m (6.6 ft.) | ||
Camera weight, incl. battery | 0.575 kg (1.27 lb.) | ||
Camera size (L × W × H) | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
Test4less have been an approved Flir distributor for over 10 years. We can also calibrate your Flir E8-XT when required.
What’s included
- FLIR E8-XT WIFI Thermal Camera
- Hard Transport Case
- Power Supply and Charger
- Rechargeable Battery
- USB Cable
