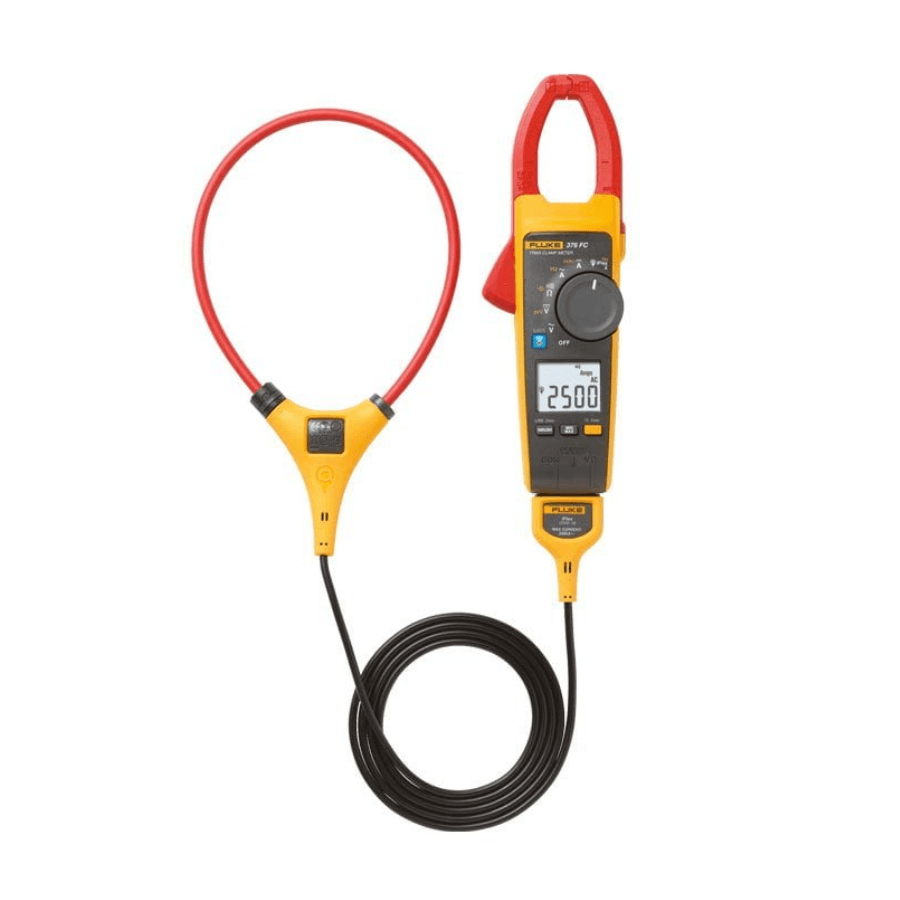

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex and Fluke Connect
The most advanced unit in the Fluke 37* range, the 376 has a large feature set suitable for a multitude of different applications, with accessories with the unit that expand this feature set even more. The Fluke 376 has set a new standard of performance for troubleshooting of industrial systems.
The clamp on the 376 has the capability to measure AC/DC Current up to 1000A, AC/DC voltage up to 1000V, resistance to 60kΩ, frequency to 500Hz and capacitance to 1000pF. As well as this the Fluke 376 can capture intermittent faults during other tests and the True RMS nature of the product means it can stay accurate on irregular waveforms. The 18 inch iFlex that is included with the 376 allows a larger current measurement range to be used (2500A), it also lets the user measure in hard to reach place and around obstacles. The instrument can also record min, max, average and inrush measurements.
This clamp meter is compatible with Fluke connect and therefore can export data to a smartphone or smart device meaning the user can create and send reports when they’re working on the job, these results can be put in to a company’s own record to identify trends and foresee potential problems occurring. Using Fluke Connect also makes the work safer, allowing the live results to be displayed on the smartphone so that the engineer can be stood outside the arc flash zone.
Features
- Connect your meter to your smartphone with Fluke Connect Measurements
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Cloud
- Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
- Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
- iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included)
- TPAK magnetic hanging strap (included)
- Integrated VFD low pass filter for accurate motor drive measurements
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
- Soft carrying case
Measurement Capability
- 1000 A ac and dc current measurement
- 2500 A ac current measurement with iFlex flexible current probe
- 1000 V ac and dc voltage measurement
- True-rms voltage and current for accurate measurements on non-linear signals
- Frequency measurement to 500 Hz with body jaw and iFlex
- Resistance measurement to 60 kΩ with continuity detection
- Min, max, average, and inrush recording to capture variations automatically
- 500 mV dc measurement range to interface with other accessories
- 1000 μF capacitance measurement
Fluke 370 series comparison
| Features | Fluke 374 | Fluke 375 | Fluke 376 |
| A ac range (jaws) | 600 A | 600 A | 999.9 A |
| A ac range (iFlex) | 2500 A | 2500 A | 2500 A |
| A dc range | 600 A | 600 A | 999.9 A |
| Best resolution | 0.1 A | 0.1 A | 0.1 A |
| V ac range | 1000 V | 1000 V | 1000 V |
| V dc range | 1000 V | 1000 V | 1000 V |
| mV dc range | – | 500 mV | 500 mV |
| Ohms range | 6000 Ω | 60.00 kΩ | 60.00 kΩ |
| Frequency | – | 5-500.0 Hz | 5-500.0 Hz |
| Capacitance | 1 μ-1,000 μF | 1 μF-1,000 μF | 1 μF-1,000 μF |
| True RMS | ● | ● | ● |
| Display hold | ● | ● | ● |
| Inrush measurements | ● | ● | ● |
| Backlight | ● | ● | ● |
| DC zero | ● | ● | ● |
| Min/max | ● | ● | ● |
| VFD low pass filter | – | ● | ● |
| Logging | – | ● | ● |
| iFlex current clamp | OPTIONAL | OPTIONAL | Included |
| Fluke Connect compatible | ● | ● | ● |
What’s Included?
- Fluke 376
- 18-inch iFlexT flexible current probe
- Coated instruction card
- Safety information sheet
- Soft carrying case
- TL75 test leads
- Instruction Manual
- TPak magnetic hanging strap
