Fluke 393 FC+ PVLEAD Clamp Meter Bundle
Fluke 393 FC+ PVLEAD Clamp Meter Bundle is designed for technicians working on solar installations and other DC systems up to 1500 V. Its thin clamp jaw helps reach conductors in tight spaces. The IP54 rating also supports outdoor use and work in demanding environments. The meter measures up to 1000 V AC and 999.9 A AC or DC. The supplied Fluke iFlex current probe extends AC current measurement up to 2500 A.
For solar testing, the bundle includes PVLEAD1 and PVLEAD3 MC4 solar clamp test lead sets. These leads connect to compatible PV modules, panels and systems. They use MC4 and 4 mm sheathed banana plug connections. This allows current and voltage measurements in suitable solar applications. Both lead sets are rated CAT III 1000 V and CAT IV 600 V. They also have a 20 A current rating.
Fluke 393 FC+ PVLEAD Clamp Meter Bundle supports Fluke Connect for analysing and sharing measurement data. Users can use this data when preparing reports for colleagues or customers. DC power readings are shown in kVA. An audio polarity indicator helps identify polarity and reduce accidental miswiring. The dual backlit display also improves visibility in dark or noisy environments.
Key Benefits
- Thin 34 mm clamp jaw provides access to conductors in tight or difficult-to-reach spaces.
- Supplied iFlex current probe extends AC current measurement up to 2500 A and helps reach awkward locations.
- CAT III 1500 V meter rating supports work on high-voltage solar and DC systems.
- IP54 ingress protection supports outdoor use and work in demanding environments.
- Audio polarity indication helps users recognise polarity and reduce accidental miswiring.
- Dual backlit display provides clear visual information when working in dark or noisy areas.
- Fluke Connect compatibility allows users to analyse and share measurement data for reporting.
- DC power readings are shown directly in kVA for supported DC power measurements.
- PVLEAD1 and PVLEAD3 lead sets provide MC4 connections for compatible PV modules and systems.
Common Applications
Fluke 393 FC+ PVLEAD Clamp Meter Bundle is suitable for a range of testing, maintenance and inspection tasks, including:
- Testing PV modules and solar panel systems.
- Current and voltage measurements in solar applications.
- Troubleshooting connections between solar panels and inverters.
- Testing solar arrays in outdoor environments.
- DC power measurement on supported solar and DC systems.
- AC current measurement in hard-to-reach locations using the iFlex probe.
- Testing and maintenance work on wind power systems.
- Analysing and sharing measurement data through Fluke Connect.
Why Choose This Model?

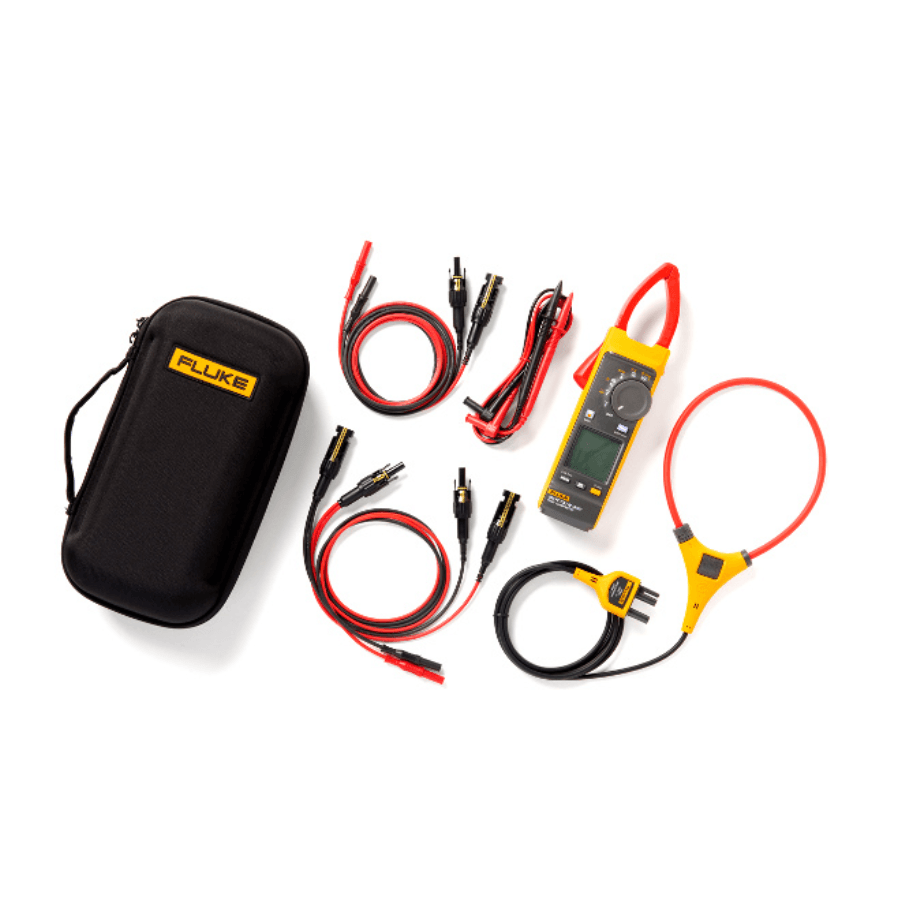

This bundle combines the Fluke 393 FC clamp meter and iFlex current probe with both PVLEAD1 and PVLEAD3 MC4 solar test lead sets. Compared with purchasing either PVLEAD lead set alone, it provides the measurement instrument and both supplied MC4 connection arrangements in one package.
