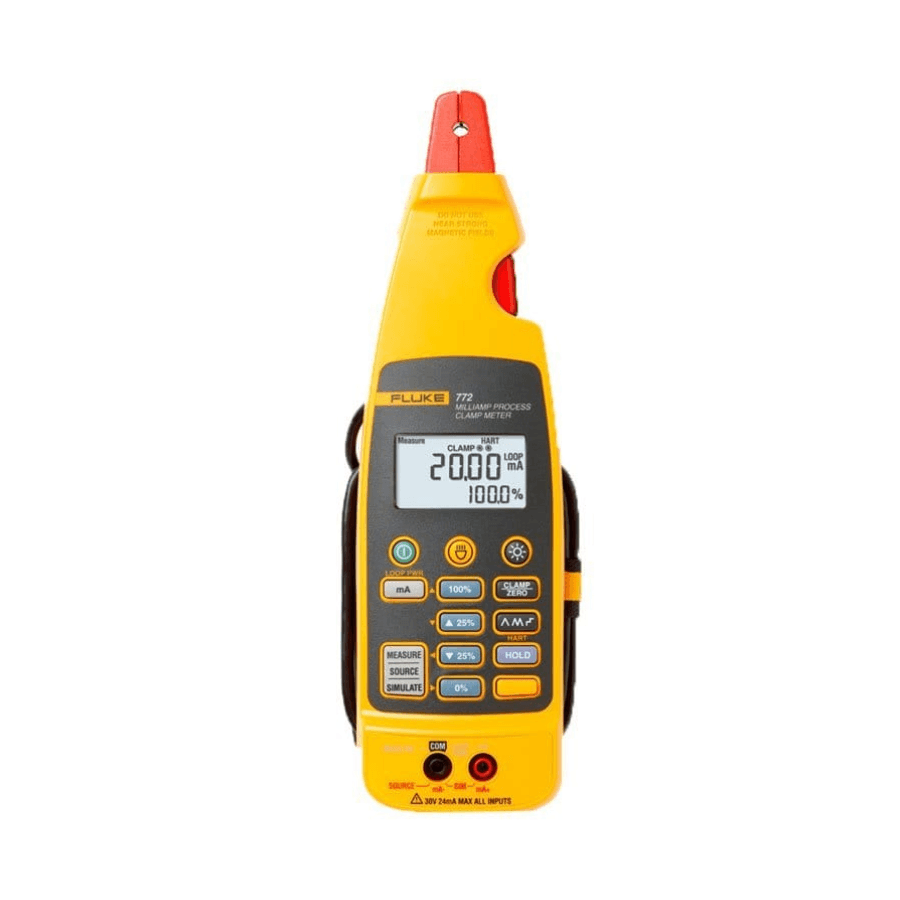

Fluke 772 Milliamp Process Clamp Meter

Fluke 772 Milliamp Process Clamp Meter

The Fluke 772 Milliamp Process Clamp Meter measures, sources and stimulates mA signals for testing control system I/O or IP’s. This device still allows you to test 4-20 mA signals without having to break the loop, up to five time faster than using an ordinary digital multi meter. That means you can troubleshoot without having to power down the item under test.

When using the Fluke 772, as well as testing, you can also simulate 4-20 mA signals for testing control system I/O and also power a transmitter with the 24V loop power supply. Both these features separate the Fluke 772 from the entry level Fluke 771.

The Fluke 772 shares the same detachable clamp design as the rest of the 77X series of milliamp clamp meters. This allows the user to clamp around wires in awkward and tight installations with ease. Other useful features include a back lit display, auto off to conserve battery power and measurement spotlight to illuminate hard to see wires in dark enclosures.

Features:

• Best in class 0.2 % accuracy
• 0.01 mA resolution and sensitivity
• Measure 4 to 20 mA signals without breaking the loop
• Measure mA signals for PLC and control system analog I/O
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatically change the 4 to 20 mA output for remote testing
• Power saving features, auto-off, backlight timeout extend battery life
• Hold function captures and displays changing measurements
• Measure 4 to 20 mA signals with in-circuit measurement
• Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
• Source 4 to 20 mA signals for testing control system I/O or I/Ps
• mA output linear ramp or 25% step output
• Automatically change the 4 to 20 mA output for remote testing

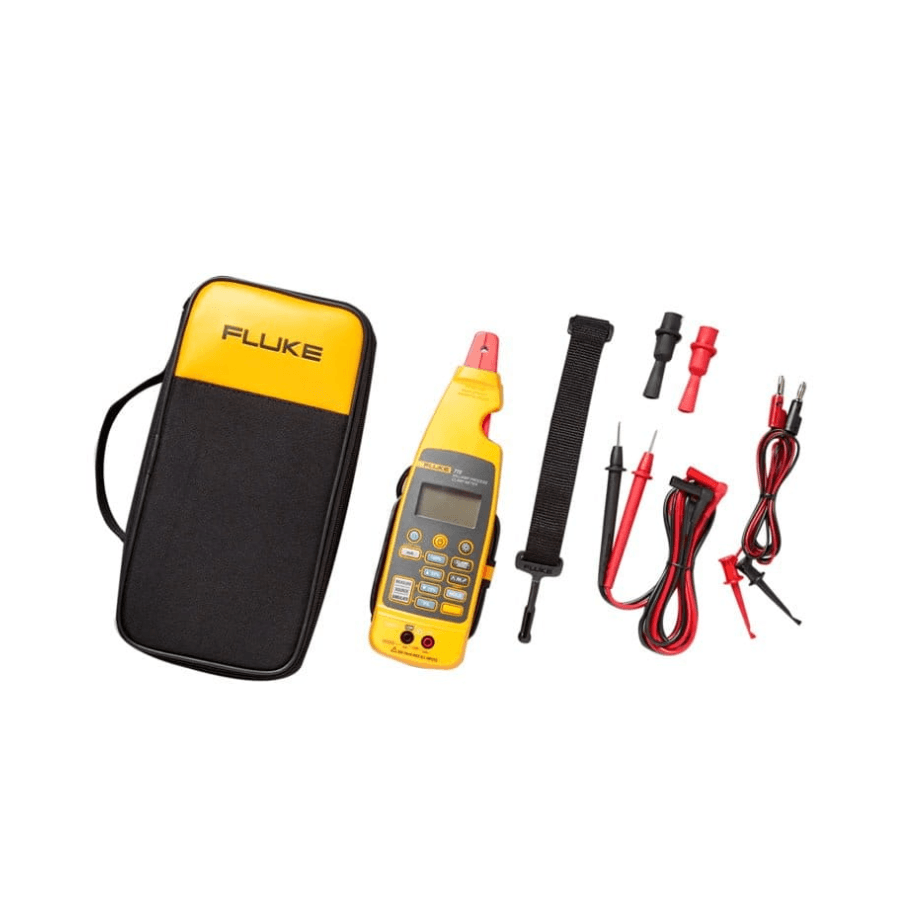

What’s Included?

• Four AA alkaline batteries (installed)
• Soft carrying case
• TL75 test leads
• AC 72 detachable clip
• TL 940 mini hook test leads
• Instruction sheet
• Hanging tool with hook and loop strap
