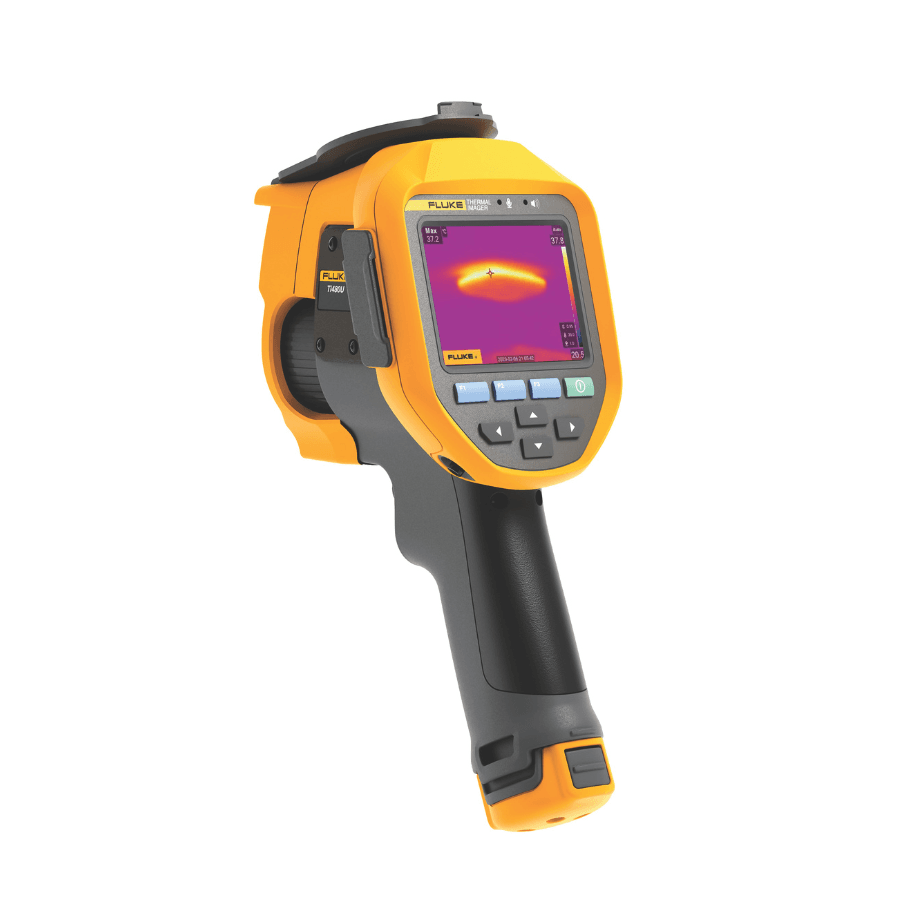

Fluke i300U 9HZ Thermal Camera
Fluke i300U 9HZ Thermal Camera is a professional infrared imaging instrument for industrial inspection, testing and maintenance work. Its 384 × 288 infrared detector captures thermal images, while the 13-megapixel digital camera supports visible image recording. A 3.5-inch LCD presents images at 640 × 480 resolution and provides access to thermal, visible, picture-in-picture and fusion modes.
Users can measure temperatures from -20 °C to 1200 °C and work with a thermal sensitivity of 75 mK at 30 °C. Automatic and manual focus options help users obtain clear images, while the minimum imaging distance of 0.1 m supports close inspection. The camera also provides up to 4x digital zoom for checking selected areas on screen.
Fluke i300U 9HZ Thermal Camera supports still images, time-lapse shooting and fully radiometric thermal video recording for later analysis. SmartView software can process images and videos, review measurement data and create professional reports. In addition, Bluetooth, USB and Mini HDMI connections support data transfer, remote display and software-based operation.
Key Benefits
- Measures temperatures up to 1200 °C for higher-temperature process and research work.
- Combines infrared and visible images to give users more visual context during inspections.
- Offers automatic and manual focus for faster setup and controlled image capture.
- Tracks high and low temperature points automatically to help identify changing conditions.
- Provides audible and colour alarms for temperatures above, below or between selected limits.
- Records fully radiometric thermal video for detailed review and analysis after an inspection.
- Supports QR code scanning, voice notes, text notes and label annotation for organised records.
- Uses SmartView software to analyse measurements and prepare professional reports.
- Includes a laser and LED torch or flash to assist with target location and image capture.
- Uses a replaceable rechargeable battery for continued field use.
Common Applications
Fluke i300U 9HZ Thermal Camera is suitable for a range of testing, maintenance and inspection tasks, including:
- Inspection of high-voltage equipment
- Thermal checks on overhead pipelines
- Inspection of large mechanical equipment
- Higher-temperature process measurement
- Research and development temperature analysis
- Long-distance target inspection using digital zoom
- Thermal image and video analysis
- Recording temperature changes during time-lapse work
Why Choose This Model?
This model offers a wider temperature range than the Fluke Ti401U and provides fully radiometric video analysis through PC software. It also has a shorter minimum imaging distance than the Ti480U and Ti401U, although its infrared resolution and digital zoom are lower.
