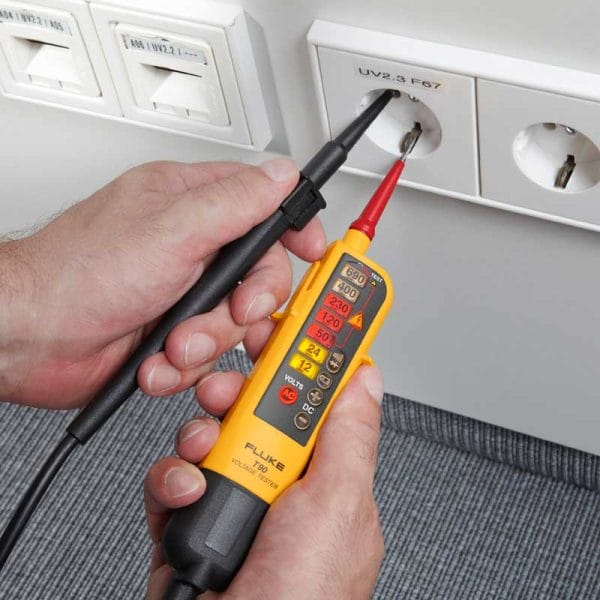

Fluke T90 Voltage & Continuity Tester
The Fluke T90 is a compact and affordable Fluke voltage and continuity tester. Made in the UK, this tester features large easy to use buttons, bright backlit LED indicators and clear audible indication, which alert the user to the presence of voltage.
Safety is the number one priority with all Fluke Testers. The Fluke T90 tester includes the same super hard wearing cable technology as all other Fluke T series testers. The cable is tested to 5,000 bends at 150° rotation, which is over three times the industry standard of 45°.
The Fluke T90 tester operates off 2 AAA batteries which add very little weight. It is best practice to prove the Fluke T90 voltage and continuity tester on a known source before and after checking for the presence of voltage.
Fluke T90 key features
- Clear visual and audible indication of voltage present
- AC / DC voltage detection from 12V to 690V
- Continuity measurement up to 400kΩ
- Protected from dust and moisture ingress (IP54 rated)
- Safety ratings CAT II690V and CAT III 600V
- GS38 compliant probe caps included
- Indicates voltage present even with dead batteries
- Improved probe docking for secure storage

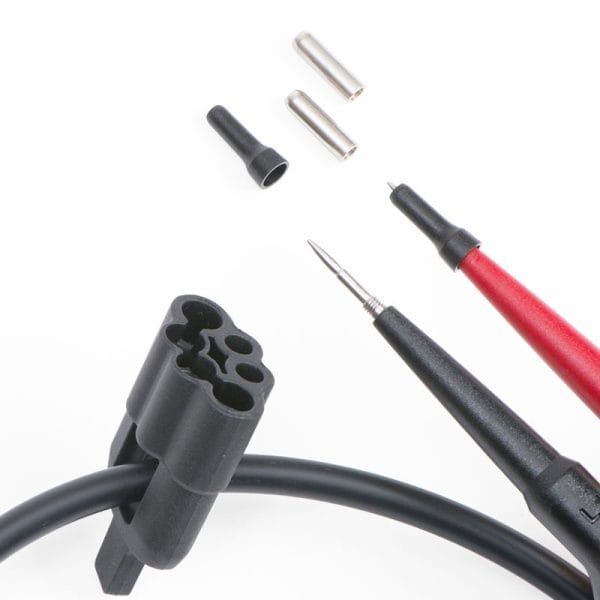

Fluke T series cable technology
Fluke voltage tester comparison
| T90 | T110 | T130 | T150 | |
| Backlit LED Indicator | ● | ● | ● | ● |
| Backlit LCD Digital Display | – | – | ● | ● |
| Continuity Test – Visual Results | ● | ● | ● | ● |
| Continuity Test – Audible Results | ● | ● with on/off | ● with on/off | ● with on/off |
| Vibratory Indicator Under Load | – | ● | ● | ● |
| Display Hold | – | – | ● | ● |
| Voltage Test | ● | ● | ● | ● |
| Indication of Polarity | ● | ● | ● | ● |
| Resistance Measurement | – | – | – | ● |
| Switchable Load | – | ● | ● | ● |
| Single Pole Test for Phase Detection | ● | ● | ● | ● |
| Rotary Field Indicator | – | ● | ● | ● |
| Probe Tip Protection | ● | ● | ● | ● |
| Voltage Display with Discharged Battries | ● | ● | ● | ● |
| Electrical Torch Function | – | ● | ● | ● |
| Wear Indicator Test Lead Wire | ● | ● | ● | ● |
Fluke voltage tester specification
| T90 | T110 | T130 | T150 | |
| Voltage AC/DC | 12V – 690V | 12V – 690V | 6V – 690V | 6V – 690V |
| Continuity | 0-400kΩ | |||
| Frequency | 0/40-400Hz | |||
| Phase Rotation | – | 100V-690V | ||
| Resistance Measurement | – | – | – | Up to 1999Ω |
| Response Time (LED Indicator) | <0.5s | |||
| 200kΩ Input Impedance | Current Draw 3.5mA @ 690V Current Draw 1.15mA @ 230V | |||
| 7kΩ Input Impedance (with load buttons pressed) | – | Current draw 30mA @ 230V | ||
| Safety Rating | CAT II 690V CAT III 600V | CAT III 690V CAT IV 600V | ||
| IP Rating | IP54 | IP54 | IP64 | IP64 |
What’s Included?
- Fluke T90
- Probe Storage Accessory
- Instruction Manual
- Push-On Probe Tips
