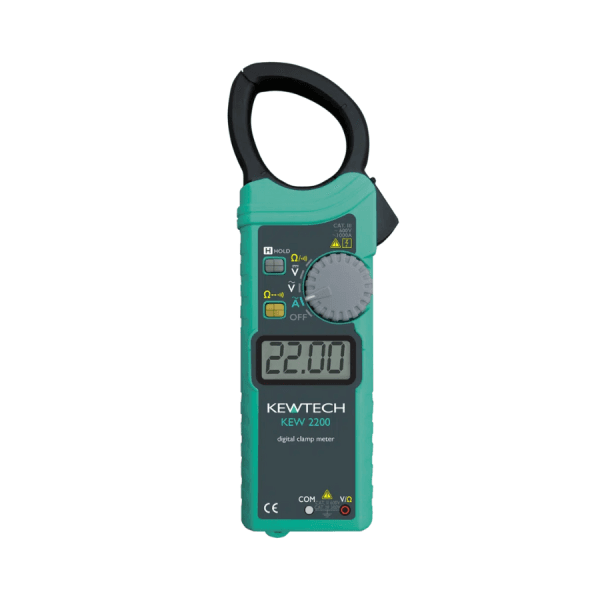

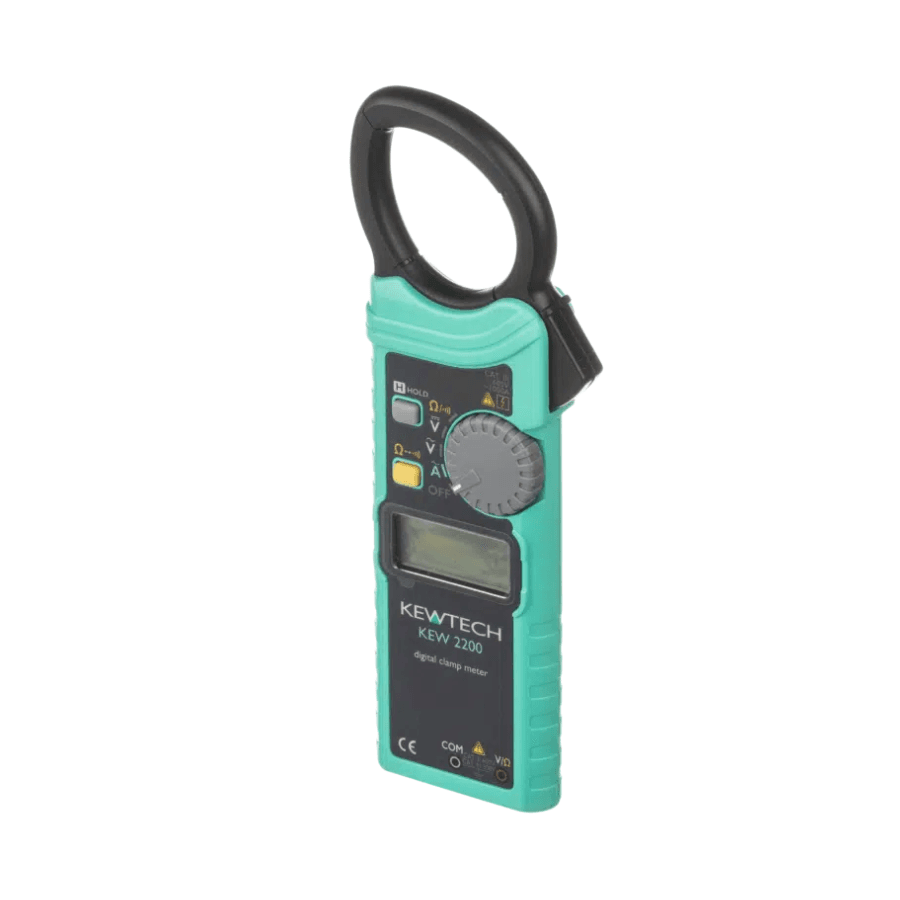

Kewtech KEW2200 Ultra Slim Clamp Meter

Kewtech KEW2200 Ultra Slim Clamp Meter

The Kewtech KEW2200 Ultra Slim Clamp Meter combines a compact clamp design with AC current measurement up to 1000A. Its slim 10mm jaw helps users reach conductors in restricted areas such as distribution boards and consumer units. Despite its narrow jaw profile, it can accommodate conductors up to 33mm in diameter.

For electrical testing and fault finding, the meter measures both AC and DC voltage up to 600V. It provides a current resolution of 0.01A, an AC voltage resolution of 1mV and a DC voltage resolution of 0.1mV. Auto-ranging resistance measurement and an audible continuity buzzer add further functions for routine electrical checks.

The Kewtech KEW2200 Ultra Slim Clamp Meter is designed for simple one-handed operation and weighs 120g including batteries. A hold function keeps a measured value on the display, while the data hold memory function supports convenient recording during testing. A sleep feature helps conserve battery power, and the instrument complies with stated IEC electrical safety and EMC standards.

Key Benefits

• The 10mm slim jaw helps reach conductors where working space is limited.
• Measures AC current up to 1000A for a wide range of electrical current checks.
• Measures AC and DC voltage up to 600V from the same compact instrument.
• High measurement resolution supports detailed current and voltage readings.
• Auto-ranging resistance measurement reduces manual range selection during testing.
• The continuity buzzer provides an audible indication during continuity checks.
• The hold function keeps readings on screen when the display is difficult to view during measurement.
• A weight of 120g including batteries supports comfortable single-handed use.
• Sleep mode helps reduce unnecessary battery use between measurements.
• The supplied carry pouch with belt loop makes the meter convenient to carry between tasks.

Common Applications

Kewtech KEW2200 Ultra Slim Clamp Meter is suitable for a range of testing, maintenance and inspection tasks, including:

• AC current measurement up to 1000A
• AC voltage measurement up to 600V
• DC voltage measurement up to 600V
• Resistance measurement during electrical checks
• Continuity testing with an audible buzzer
• Electrical fault finding and troubleshooting
• Testing within distribution boards
• Testing within consumer units
• Measurements where access around conductors is restricted

Why Choose This Model?

The Kewtech KEW2200 Ultra Slim Clamp Meter combines a 10mm slim jaw, capacity for conductors up to 33mm in diameter, AC current measurement up to 1000A and AC/DC voltage measurement up to 600V. Its 120g weight, hold function, continuity buzzer and sleep feature support practical day-to-day electrical testing.

General Specifications

Measurement and Accuracy Specifications

Mechanical and General Information

Specification Notes

• Current measurements have a maximum stated resolution of 0.01A.
• Voltage resolution is 1mV for AC voltage and 0.1mV for DC voltage.
• The continuity buzzer operates at 50 ±30Ω.

What’s Included

• Kewtech KEW2200 Ultra Slim Clamp Meter
• Carry pouch with belt loop
• G7 test leads
• Batteries
• Manual
