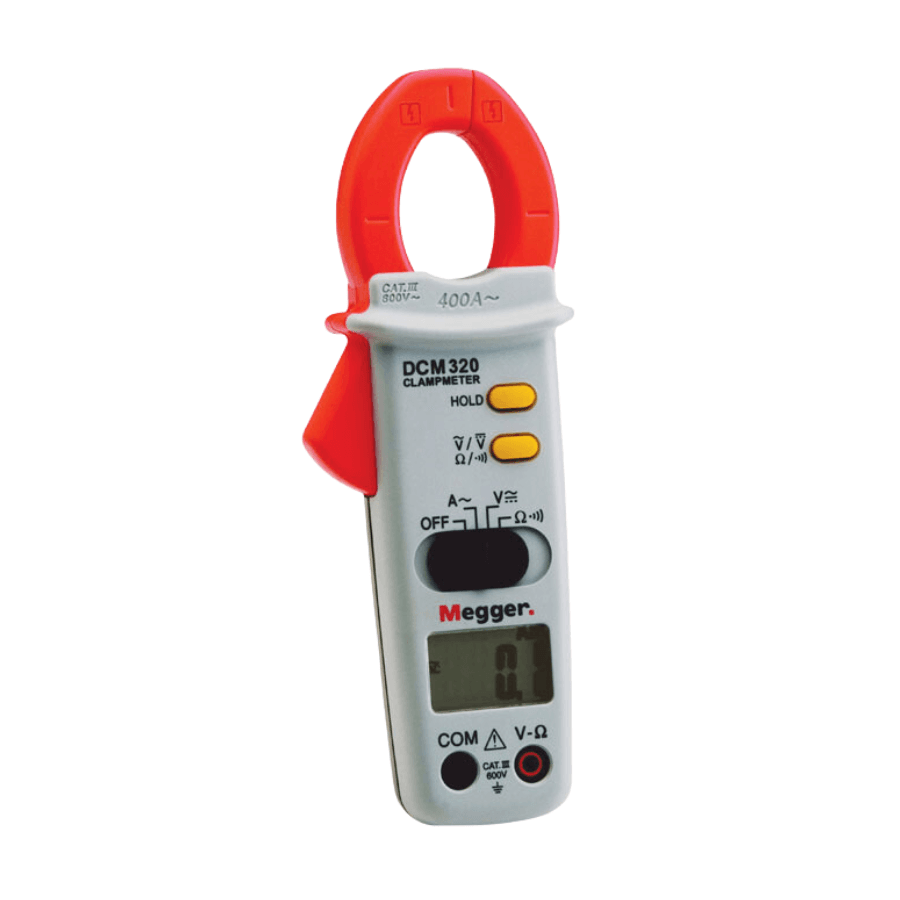

Megger DCM320 Digital Clamp Meter
The Megger DCM320 adds a range of multi meter functions to the entry level DCM310 clamp meter, including voltage, continuity buzzer and resistance. The DCM320 can also measure current up to 400A on conductors up to 27mm in diameter.
Voltage, continuity and resistance
As well as current measurement, the Megger DCM320 can also measure AC and DC voltage up to 600V and resistance up to 20MΩ. There is also a continuity buzzer which sounds at up to 20Ω.
Safe and built to last

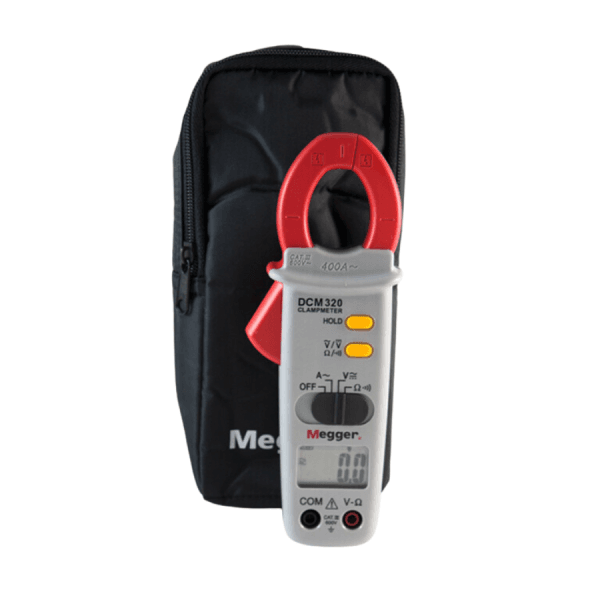

The Megger DCM320 is safety rated to IEC 61010 CAT III 600V which offers a high level of protection to the engineer. The unit is also drop tested to 1.2m and includes a soft carry case for added protection during storage and transporting.
The DCM320 is lightweight at only 225g and compact at under 19cm tall. It also has a long battery life of up to 200 hours, with an auto off function after 10 minutes of inactivity. The DCM320 is powered by two AAA batteries.
Megger DCM320 key features
- Compact and lightweight clamp meter
- Current measurement up to 400A
- AC / DC voltage measurement up to 600V
- Resistance measurement up to 20MΩ
- Continuity buzzer up to 20Ω
- 27mm wide jaw opening
- Safety rated to IEC 61010 CAT III 600V
- Drop tested to 1.2m
- Display hold feature
- Sample rate 1.5 times per second
- Powered by 2 x AAA batteries
- 200 hour battery life with auto off
| DCM310 | DCM320 | DCM340 | ||
| Current Ranges | A AC | 20A, 200A, 400A | 20A, 200A, 400A | 60A, 400A, 600A |
| A DC | – | – | 60A, 400A, 600A | |
| Voltage Ranges | V AC | – | 200V, 600V | 400V, 600V |
| V DC | – | 200V, 600V | 400V, 600V | |
| Resistance Ranges | – | 200, 2 k, 200 k, 2M 20M | 400 | |
| Continuity Buzzer | – | ● | ● | |
| Frequency Measurement | – | – | ● | |
| Auto Ranging | – | ● | ● | |
| Backlight | – | – | ● | |
| Data Hold | ● | – | ● | |
| Max/min hold | ● | – | ● | |
| Conductor size | 27mm | 27mm | 35mm | |
| Safety Rating | CAT III 600V | CAT III 600V | CAT III 600V |

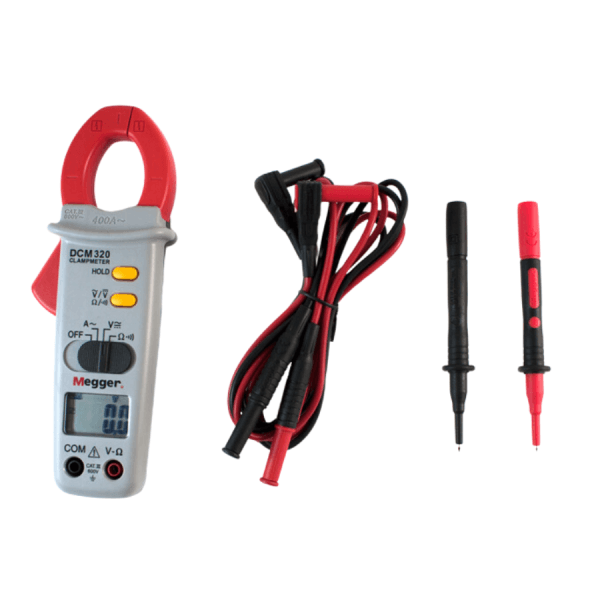

What’s included
- Megger DCM320 Digital Clamp Meter
- Batteries
- Pouch
- Test Leads
- User Guide
Megger Part Code: 1000-304
