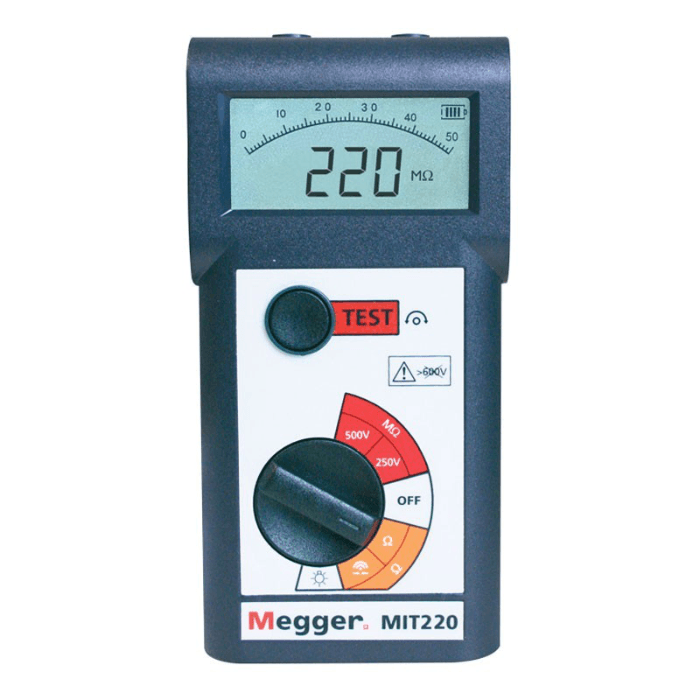

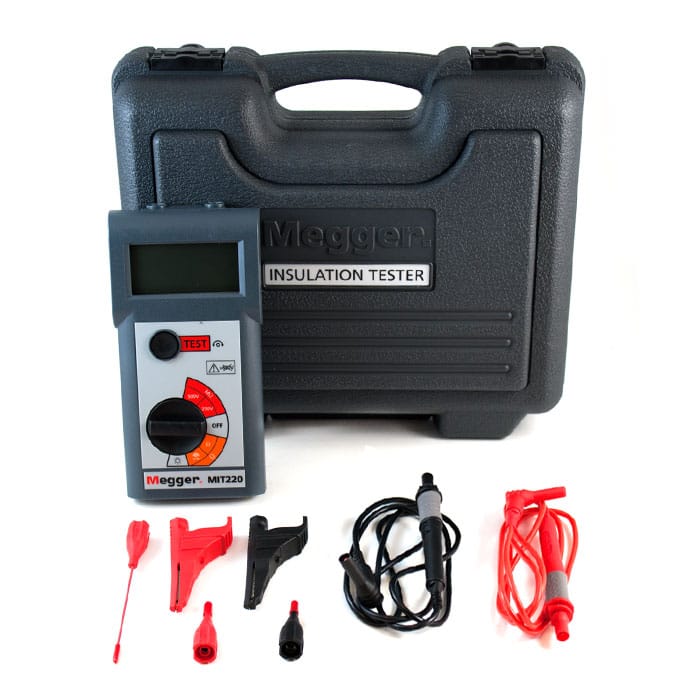

Megger MIT220 Insulation and Continuity Tester
Built for insulation and continuity work on domestic and industrial electrical systems, the Megger MIT220 Insulation and Continuity Tester provides selectable 250 V and 500 V d.c. insulation test voltages in a compact ABS instrument. Its combined digital readout and analogue arc supports precise readings while retaining a pointer response for evaluating circuit charge and discharge characteristics. A 10 kΩ to 1000 MΩ insulation measurement range covers low-voltage insulation applications, while the CAT III 600 V safety category supports work on electrical installations.

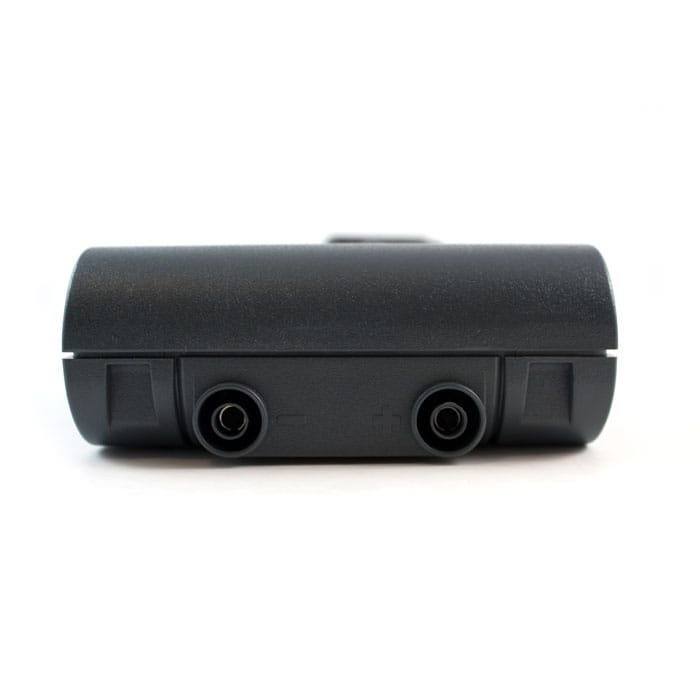

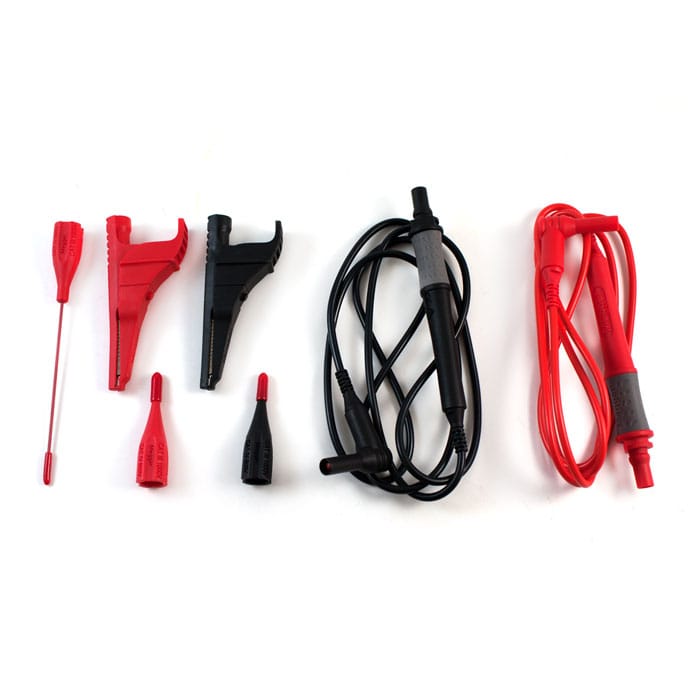

For continuity checks, automatic testing applies more than 200 mA in the 0 to 10 Ω range and measures from 0.01 Ω to 100 Ω, allowing both hands to remain on the probes. Lead null compensates for up to 9.99 Ω of test-lead resistance, while the buzzer supports rapid circuit identification below 2 Ω. Live-voltage display activates from 25 V, testing is inhibited above 50 V, and automatic discharge after insulation testing lets the user monitor any remaining voltage on the display.
Key Benefits
- Selectable 250 V and 500 V test voltages support different insulation testing requirements
- Automatic continuity testing starts without pressing the test button, leaving both hands available for the probes

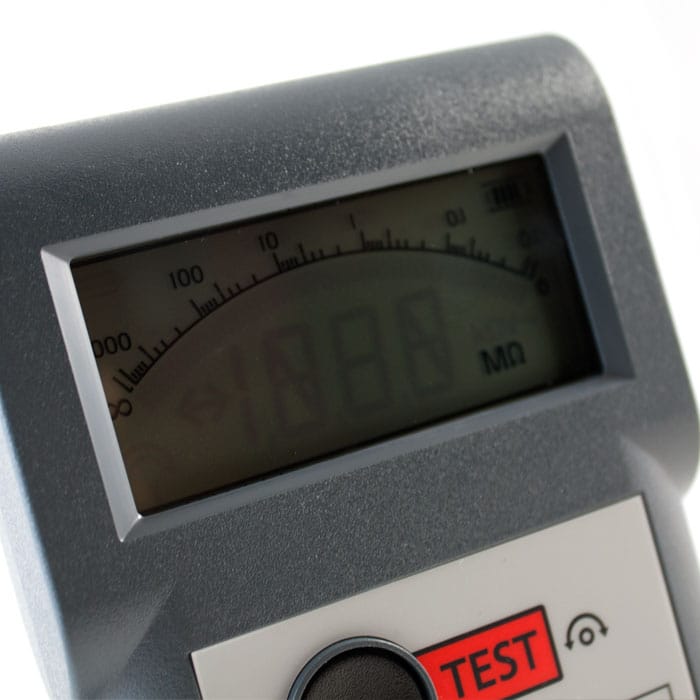

- Combined digital and analogue arc display presents precise values and responsive circuit behaviour
- Lead-null storage compensates for test-lead resistance until the stored value is reset
- Live-circuit detection warns when an a.c. or d.c. voltage greater than 25 V is present
- Test inhibit prevents insulation and continuity testing when more than 50 V is detected
- Automatic discharge removes test voltage after insulation tests and shows the discharge on the display
- Automatic power-down after 10 minutes in standby helps preserve battery power
Common Applications
The Megger MIT220 is suitable for a range of electrical installation, testing and maintenance tasks, including:
- Installing domestic electrical systems
- Installing industrial electrical systems
- Site maintenance and service work
- Testing fixed electrical wiring systems
- Testing domestic appliances
- Testing power tools
- Testing transformers
- Testing motors and generators
- Testing switchgear
- Testing electrical panels
General Specifications
| Specification | Details |
|---|---|
| Product type | Digital and analogue insulation and continuity tester |
| Insulation test voltages | 250 V d.c. and 500 V d.c. |
| Display | Digital readout with analogue arc display |
| Backlight | Operates for 1 minute and can be reinitialised by changing range or pressing TEST |
| Live-voltage display | Automatically displays a.c. or d.c. voltage from 25 V to 600 V |
| Test inhibit | Testing is inhibited when more than 50 V is detected |
| Automatic discharge | Automatically discharges the circuit after insulation testing and displays any voltage present |
| Automatic power-down | Operates after 10 minutes in standby mode |
| Safety category | CAT III 600 V phase to earth |
| Safety standards | Meets IEC 61010-1 and conforms to EN 61557 |
| EMC | In accordance with IEC 61326-1 |
| Power supply | 6 x 1.5 V IEC LR6 AA alkaline cells or NiMH rechargeable cells |
| Battery indication | Four-section battery condition bargraph |
| Battery life | 3000 consecutive tests using 2 Ah batteries |
| Fuse | 500 mA (F) 600 V, 32 x 6 mm ceramic HBC, 50 kA minimum, with ruptured-fuse indication |
Measurement and Accuracy Specifications
| Measurement Function | Range and Details | Accuracy |
|---|---|---|
| Insulation resistance | 250 V d.c. and 500 V d.c. test voltages 10 kΩ to 1000 MΩ on both ranges Test current greater than 1 mA at the minimum pass values |
At 20 °C: ±3 % of reading ±2 digits up to 10 MΩ ±5 % of reading ±2 digits up to 100 MΩ ±30 % of reading up to 1000 MΩ |
| Insulation test output | Terminal voltage on open circuit | −0 % to +25 % of rated voltage |
| Continuity resistance | 0.01 Ω to 100 Ω 0 to 50 Ω on the analogue scale Lead null from 0 to 9.99 Ω Buzzer operates below 2 Ω with a response time below 20 ms |
At 20 °C: ±3 % ±2 digits from 0 to 10 Ω ±5 % ±2 digits from 10 to 100 Ω |
| Continuity test output | Open-circuit voltage: 5 V ±1 V Short-circuit current: 205 mA +10 mA −5 mA from 0 to 10 Ω Greater than 18 mA from 10 to 100 Ω |
Specified output values |
| Default voltmeter | 25 V to 600 V at 50/60 Hz and d.c. | 25 V to 450 V a.c./d.c.: ±1 % ±1 digit 450 V to 600 V a.c.: ±2 % ±1 digit |
Mechanical and General Information
| Specification | Details |
|---|---|
| Housing | Tough ABS housing |
| Dimensions | 195 x 98 x 40 mm |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 93 % R.H. at +40 °C maximum |
| Storage temperature | -25 °C to +65 °C |
| Ingress protection | IP40 |
Specification Notes
- Measurement accuracy figures are specified at 20 °C
- The stated battery life uses 2 Ah batteries and consecutive five-second tests
- Circuits must be switched off, de-energised and isolated before insulation or continuity test connections are made
