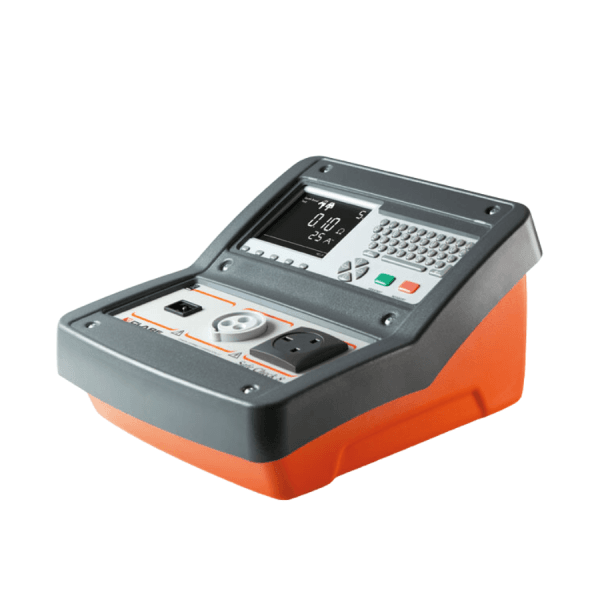

Seaward Clare SafeCheck 8
The SafeCheck 8 offers a slick and easy way for electrical safety tests to be carried out on Class I and Class II tools and equipment as well as IEC extension power cords within the hire and rental sectors.
This bench-mounted tester incorporates automatic test sequences and can be used with a barcode scanner for further productivity improvements.

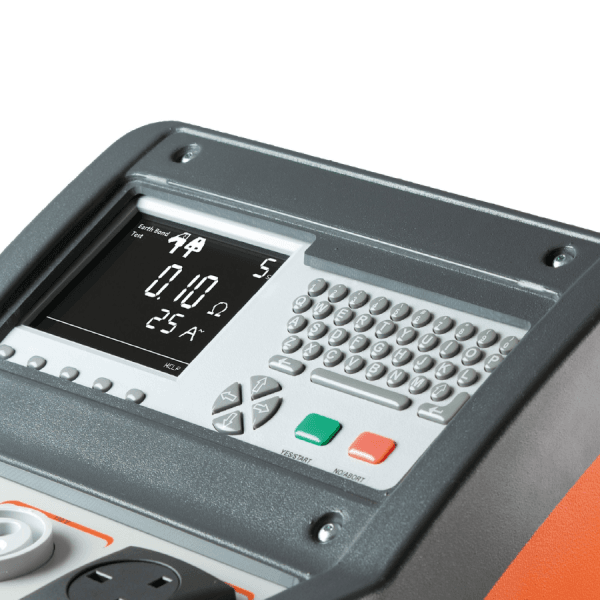

Test results are clearly displayed on the large LCD screen whilst the internal memory ensures up to 5000 results are stored for traceability. If used in conjunction with the Test n Tag printer, pass and fail labels can be printed with ease.
Electrical test functions
- Earth/Ground Bond Testing
- AC Dielectric Strength (flash/hipot)
- Insulation Resistance
- Earth/Ground leakage
- Touch leakage
Seaward Clare SafeCheck 8 specification
| Flash/Hipot Test (Class I) | |
| Test Voltage Class l | 1.25kV AC |
| Display Range | 0.1 – 10mA AC |
| Resolution | 0.01mA |
| Accuracy | +/- 5% +/- 2 digits |
| Pass Levels | 500V, 1250V AC |
| Flash/Hipot Test (Class I | |
| Test Voltage Class ll | 2.5kV AC |
| Display Range | 0.1 – 10 mA AC |
| Resolution | 0.01mA |
| Accuracy | +/- 5% +/- 2 digits |
| Pass Levels | Selectable up to 10mA |
| DC Insulation Test | |
| Test Voltage | 250/500V |
| Display Range | 0.1 – 99.99MΩ |
| Accuracy | +/- 5% +/- 2 digits (up to 19.99MΩ) |
| Earth/Ground Bond Test | |
| Test Voltage | 6VAC (open circuit) |
| Test Current | 25A, 10A, 4A, 100mA AC into short circuit |
| Range | 0.04Ω – 20Ω |
| Resolution | 1mΩ |
| Accuracy | +/- 5% +/- 2 digits |
| Pass Levels | User selectable |
| Substitute Leakage (Short to Case Test) | |
| Test Voltage | 40VAC o/c |
| Display Range | 0.1 – 20.0mA AC |
| Resolution | 0.01mA |
| Accuracy | +/- 10% +/- 2 digits (1.00 – 20mA) |
| Pass Levels | Selectable up to 15mA |
| Earth Leakage | |
| Display Range | 0.1 – 20.0mA AC |
| Resolution | 0.01mA |
| Accuracy | +/- 10% +/- 2 digits (1.00 – 20mA) |
| Pass Levels | Selectable up to 10mA |
| Power/Run/Load Tests | |
| Resolution | 0.01kVA |
| Measured Load | 0 – 4kVA |
| Accuracy | +/- 10 of reading, +/- 2 digits |
| IEC Power Cord Test | |
| Test Voltage | 40VAC |
| Detects | Good, Open, Short, Reversed |
What’s included
- Seaward Clare SafeCheck 8
- HT probe
- 3 pin guard link connector
- Earth bond clip
- Instruction manual
- Calibration certificate
