Testo 310 Flue Gas Analyser
The Testo 310 Flue Gas Analyser gives heating engineers a fast and reliable way to complete combustion testing and boiler servicing. Its compact body and simple controls help users work with ease in busy environments. In addition, the bright graphic display presents readings clearly, which helps reduce mistakes during testing.
Designed for domestic heating systems, the analyser measures oxygen, carbon monoxide, flue gas temperature and draught with dependable accuracy. The rechargeable battery supports long working hours and charges through USB-C for added convenience. Furthermore, the quick 30 second sensor zeroing process helps engineers save time on site.
Fast Testing and Simple Operation
Built-in magnets allow the Testo 310 Flue Gas Analyser to attach securely to boiler casings for hands-free work. The lightweight construction and kink-resistant hose also improve comfort during daily servicing tasks. As a result, engineers can move around freely while keeping measurements visible at all times.
Bluetooth connectivity works with the Testo Smart App for digital reporting and easy customer record management. Reports can be stored and transferred directly from the analyser to a compatible mobile device. Optional wireless printer support also makes it easier to provide printed results immediately after testing.
Reliable Measurements for Daily Servicing
The Testo 310 Flue Gas Analyser supports extra measurements when used with compatible Testo Smart Probes. This allows users to check gas flow pressure, flow temperature and return temperature from one connected system. Consequently, engineers can complete a wider range of heating checks with fewer tools.
Strong measurement performance and dependable sensor response make this analyser suitable for commissioning, servicing and safety inspections. The durable housing withstands regular site use while the replaceable probe filter helps lower maintenance costs. With support for BS7967 and EN50379 standards, the analyser provides confidence during professional testing work.
Key Features
- Measures oxygen, carbon monoxide and draught readings
- Suitable for boiler servicing and combustion testing
- Quick 30 second sensor zeroing improves efficiency
- Rechargeable lithium battery supports long operation
- USB-C charging for simple power management
- Graphic 7-line display provides clear readings
- Integrated magnets allow hands-free operation
- Bluetooth connection supports digital reporting
- Works with the Testo Smart App for data storage
- Kink-resistant hose improves durability during use
- Replaceable probe filter helps reduce downtime
- Optional Bluetooth printer available for reports
- Supports additional Smart Probes for extra checks
- Compact housing fits easily into service kits
- Designed for domestic heating engineers
Technical Specifications
| Manufacturer | Testo |
| Product name | Testo 310 Flue Gas Analyser |
| Manufacturer part code | Not provided |
| O₂ measuring range | 0 to 21 Vol.% |
| O₂ accuracy | ±0.2 Vol.% |
| O₂ resolution | 0.1 Vol.% |
| O₂ reaction time | 30 seconds |
| CO measuring range without H₂ compensation | 0 to 4000 ppm |
| CO resolution | 1 ppm |
| CO accuracy | ±20 ppm from 0 to 400 ppm and ±10% from 2001 to 4000 ppm |
| Ambient CO measuring range | 0 to 4000 ppm |
| Differential pressure range | -20 to +20 hPa |
| Pressure measurement range | -16 to +16 hPa |
| Pressure accuracy | ±0.02 hPa from -0.6 to +0.6 hPa |
| Flue gas temperature range | -20 to +400 °C |
| Ambient temperature range | -20 to +100 °C |
| Efficiency testing range | 0 to 120% |
| Flue gas loss range | 0 to 99.9% |
| Display type | Graphic 7-line backlit display |
| Battery type | 1500 mAh rechargeable lithium battery |
| Battery life | Up to 10 hours |
| Charging method | USB-C charging |
| Connectivity | Bluetooth 4.0 compatible with iOS and Android |
| Memory | Reports saved within Testo Smart App |
| Operating temperature | -5 to +45 °C |
| Storage temperature | -20 to +50 °C |
| Protection class | IP40 |
| Dimensions | 203 x 83 x 46 mm |
| Weight | Approx. 660 g |
| Compliance | BS7967 and EN50379 |
| Warranty | 2 years on instrument and sensors |
Comparison Table
| Feature | Testo 310 (2nd Gen) | Testo 327-1 | Testo 300+ |
| Sensors | O₂, CO | O₂, CO | O₂, CO, NO with optional sensor |
| Measurement ranges | CO 0 to 4000 ppm, CO₂ calculated | CO 0 to 4000 ppm, CO₂ calculated | CO 0 to 8000 ppm, CO₂ calculated, NO 0 to 3000 ppm |
| NO / NOx measurements | No | No | Yes with optional sensor |
| Gas pressure testing | Yes | Yes | Yes |
| Flow and return temperature measurement | No | Yes | Yes |
| Draught measurement | Separate from flue gas measurement | Parallel to flue gas measurement | Parallel to flue gas measurement |
| O₂ measurement range | 0 to 21% | 0 to 21% | 0 to 21% |
| Temperature measurement range | 0 to 400 °C | -40 to 600 °C | -40 to 1200 °C |
| Instant ready standby mode | No | No | Yes |
| Printer compatible | Yes | Yes | Yes |
| Create and send reports directly | No | No | Yes via email and Bluetooth |
| Inbuilt Android device | No | No | Yes |
| Software compatible | No | No | Yes |
| Smart App connectivity | Yes | No | Yes |
| Memory | No internal memory | No internal memory | 1 million measuring values |
| Display | Graphic 7-line display | 4-line LCD display | 5 inch HD colour display |
| Touchscreen | No | No | Yes |
| Sensor warranty | 2 years | 3 years | 3 years |
| Instrument warranty | 2 years | 2 years | 2 years |
Document Downloads

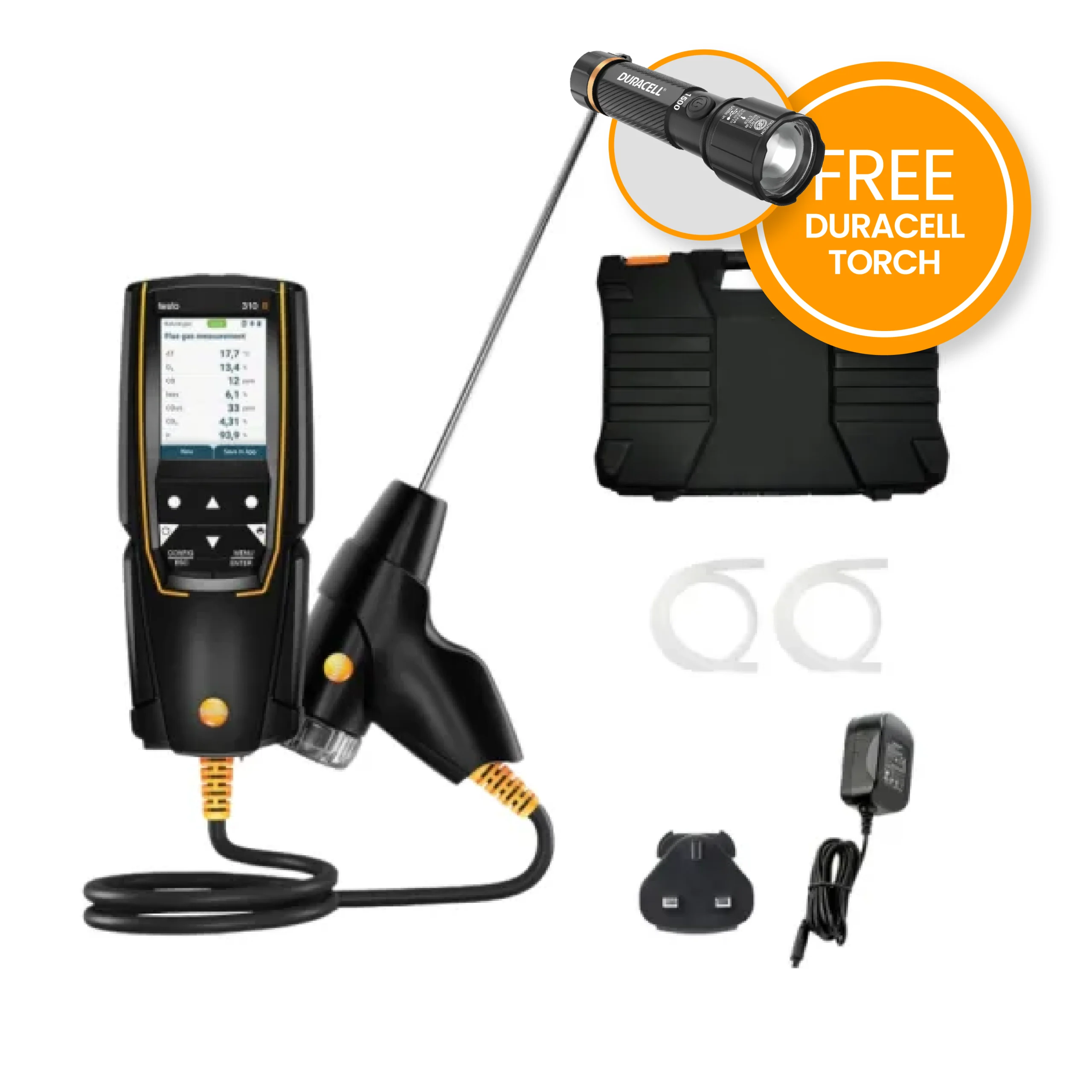

What’s Included
- Testo 310 Flue Gas Analyser
- Flue gas probe
- Cone
- Silicone tubing
- Essential accessories
