Testo 327-1 Flue Gas Analyser Standard Kit 0563 3203 80

Testo 327-1 Flue Gas Analyser Standard Kit 0563 3203 80

The Testo 327-1 Flue Gas Analyser Standard Kit stands out as an indispensable tool for domestic gas engineers, specifically crafted for daily use in commissioning and servicing boilers. Compliant with EN 50379 and BS7967 standards, this analyser features a user-friendly interface. Its backlit multi-line display can simultaneously exhibit four parameters, providing real-time measurements that are essential for accurate assessment. The device’s menu navigation is intuitively designed, ensuring users quickly become adept at operating it.

Ergonomically structured, the Testo 327-1 is not only comfortable to hold but also practical for field use, thanks to its rear magnets that conveniently attach to boiler casings. Its measurement capabilities are comprehensive, covering O2, CO, and temperature, along with the ability to calculate ratios, CO2, and efficiency. The device is further equipped to measure flow and return temperatures. When equipped with optional accessories, it can also perform a full range of pressure tests, including let-by and tightness testing.

Advanced Features and Multi-Fuel Compatibility

The Testo 327-1 is engineered with advanced features to enhance its longevity and reliability. It includes automatic pump protection, which guards the CO sensor against overexposure, thus preserving its functionality. The built-in condensate trap, designed for easy emptying, encourages regular maintenance, reducing the risk of water ingress into the unit.

Durability is a core aspect of the 327-1’s design. It is encased in a tough rubber overmold that shields it from daily bumps and scrapes. For additional protection and ease of transport, the device comes with a robust soft carry case.

Testo 327 Flue Gas Analyser Kit Variants

Key Features

• Temperature measurement range -40 to +600
• Flue gas 02 measurement 0 to 21 Vol.%
• Differential pressure flue gas draught -40 to +40 hPa
• Efficiency measurement 0 to 12%
• Flue gas loss range 0 to 99%
• Carbon monoxide and carbon dioxide measurements
• Easy menu navigation with large rubber buttons
• Robust rubber boot to protect the unit in harsh environments
• Multi fuel: Natural gas, light/heavy oil, Propane, Butane and Kerosene
• Back lit 4 line LCD display shows multiple measurement results in one
• Fast and secure flue probe attachment
• Easy access filter access for quick changes
• Lithium ion rechargeable battery for approximately 5 hours use
• Measures combustion efficiency, temperature, O2, CO2 and flue draft
• Carries out let by and tightness test, no need for a separate manometer
• CO over exposure protection with automatic pump shut off
• Independently tested to EN50379 (Part 2 for O2, temperature and hPa. Part 3 for CO)
• Meets the requirements of BS79697
• Ambient CO measurement using flue gas probe
• Results print out (via optional printer)

Technical Specifications

• Temperature: 0 to +600°C
• Draught: ±40 mbar
• Pressure: -200 to +200 mbar
• O2: 0 to 21 Vol. %
• CO: 0 to 4000 ppm
• CO2: 0 to CO2 max
• Efficiency measurement: 0 to 120%
• Flue gas loss (qA): 0 to 99.9%

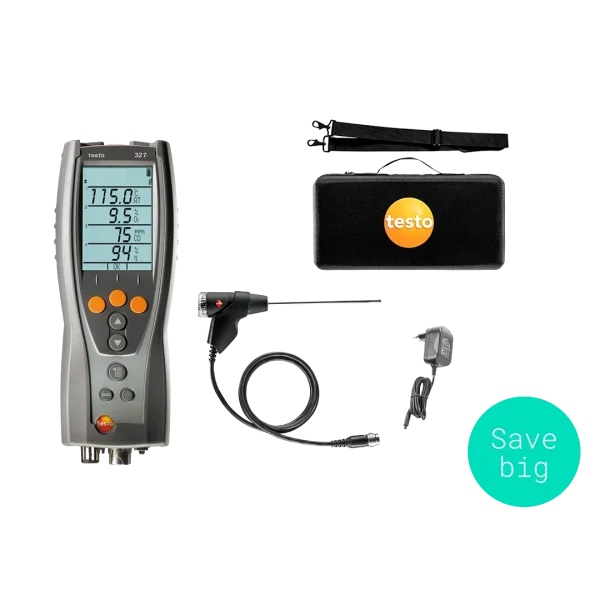

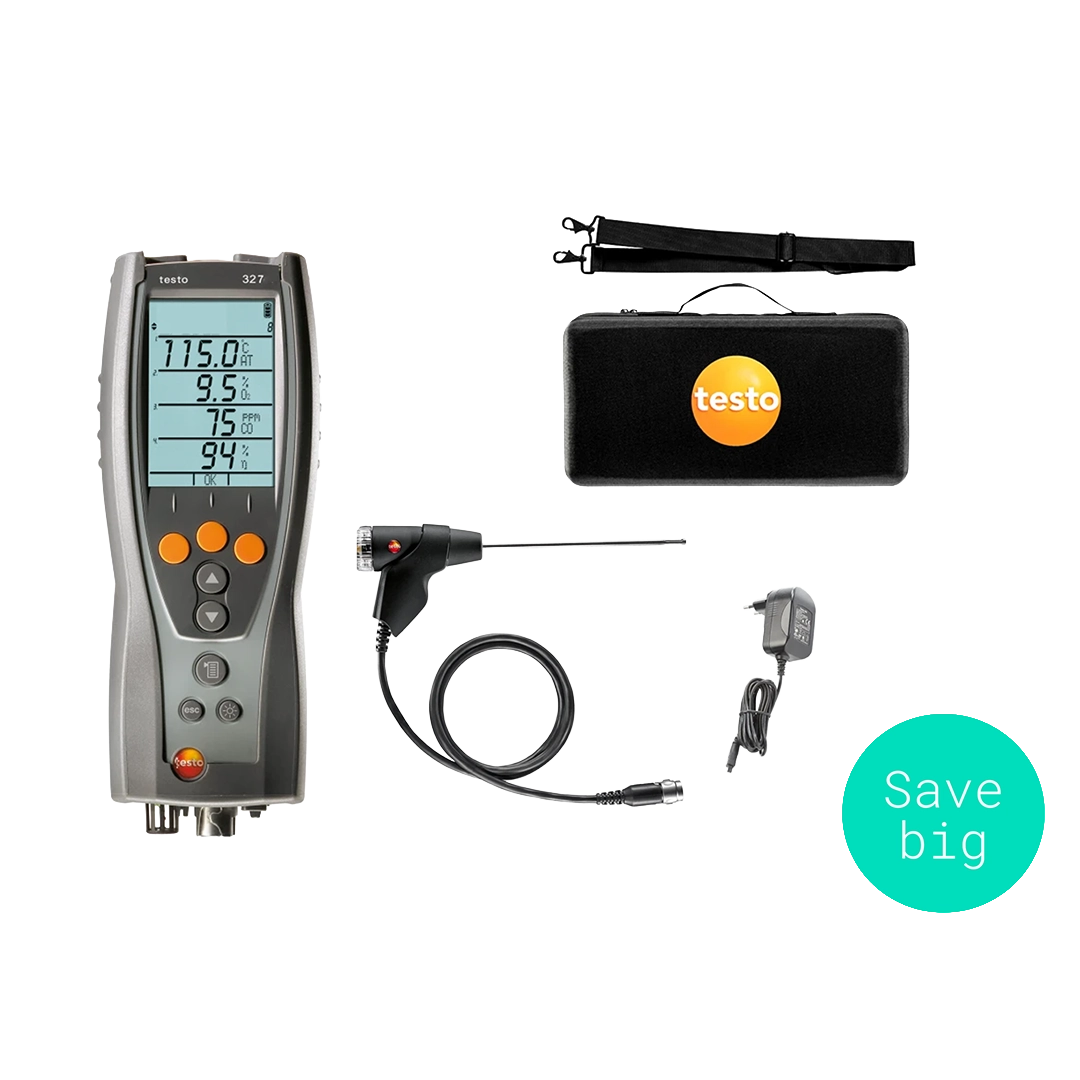

What’s Included

• Testo 327-1 Flue Gas Analyser
• Flue Gas Probe
• Rechargeable battery
• Mains charger
• Carry case
• Testo 12-month calibration protocol
• Gas Leak Detector with Flexible Neck*
• Testo CPA1 Kit –  Set of CPA1 / BS7967 probes for CO testing of cookers and flueless appliances**

*Included in the Add Testo Gas Leak Detector 300563 1327
** Add Gas Leak Detector + CPA1 Kit 300563 3327
