Testo 745 Non-contact Voltage Tester 0590 7450

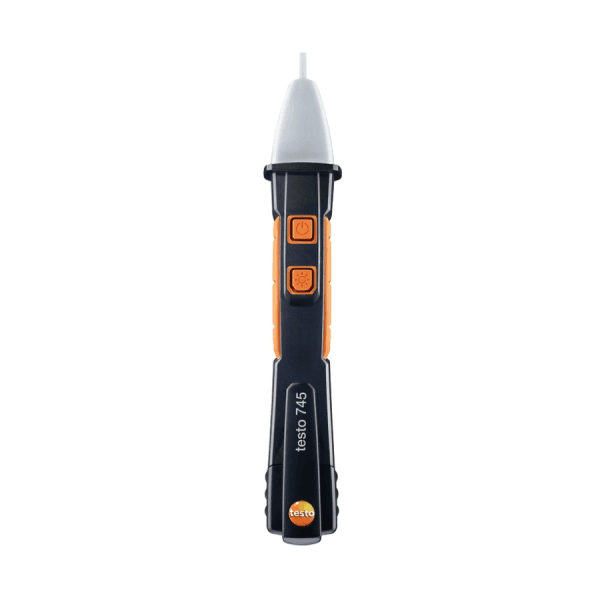

Testo 745 Non-contact Voltage Tester

The testo 745 non-contact Voltage Tester has a voltage range of up to 1,000 V AC. It is ideal for fast initial checking of any suspected fault sources. If an alternating current is present, the Voltage Tester will flash red and makes a corresponding warning sound. The Voltage Tester also has a filter for high-frequency interference signals therefore increasing its reliability. It is both waterproof and dustproof according to IP 67.

Advantages

• Filter for high-frequency interference signals
• Adjustable sensitivity
• Visual and acoustic signal
• Waterproof and dustproof according to IP 67
• Measuring point illumination

Specifications

• Voltage testing: 12 to 1,000 V AC
• Measuring point illumination: Yes
• Measurement category: CAT IV 600 V
• CAT III 1,000 V
• Protection class: IP 67
• Operating temperature: -10 to +50 °C
• Storage temperature: -15 to +60 °C
• Dimensions: 155 x 25 x 23 mm (L x W x H)
• Weight: 63g
• Warranty: 2 years
• Authorisations: CSA, CE
• Standards: EN 61326-1, EN 61010-1

What’s Included?

• Testo 745 Non-contact Voltage Tester
• Batteries
