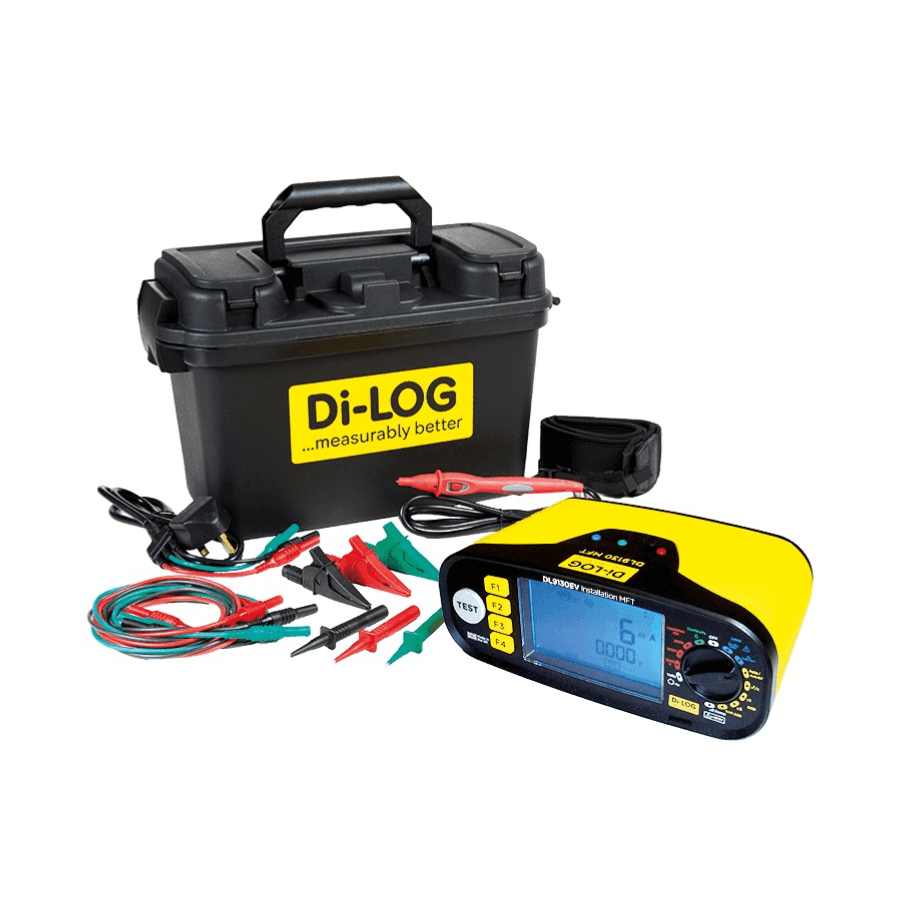

Di-log DL9130EV Advanced Multifunctional Tester

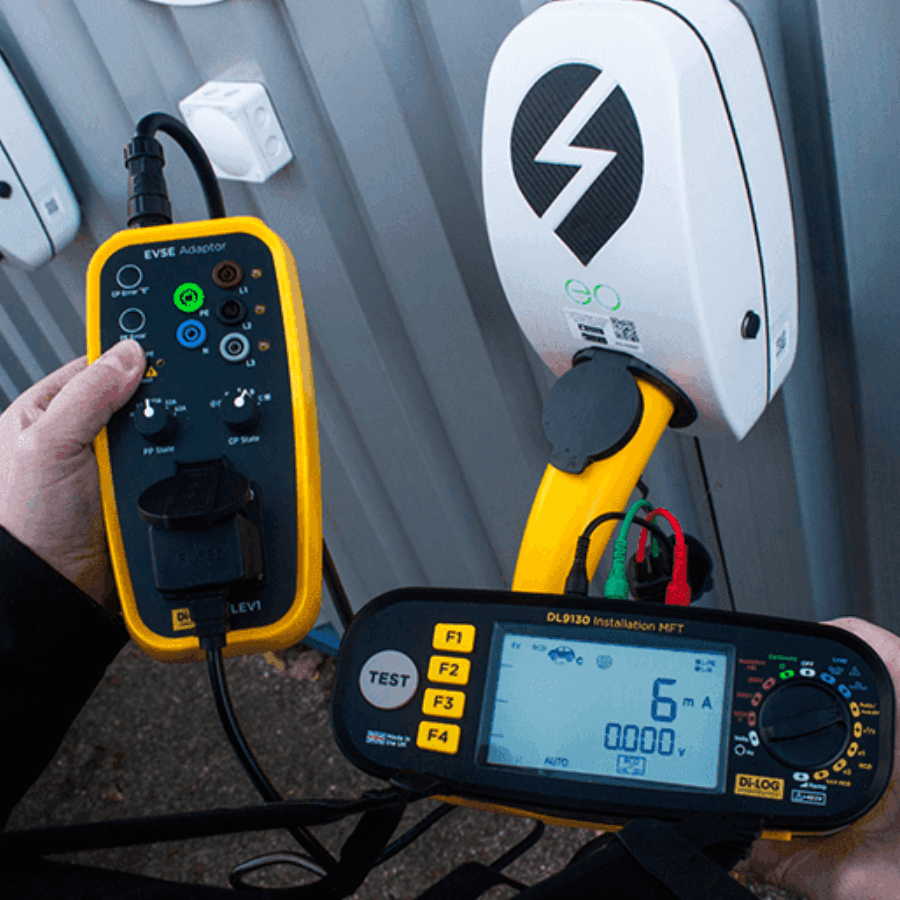

The Di-Log DL9130EV has many new and exciting features critical to the safe verification of EVSE Charge Station Installation including 6mA pure DC test for RDC-DD verification and a full EV testing sequence for verifying the DC protection provided by the EV charger, along with the Type A RCD protection.
A totally new feature added specifically to the DL9130EV is Rmax, this brand-new concept will automatically capture the maximum R1+R2 continuity test reading registering the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
Along with a brand new RGB colour changing screen that visually indicates potential pass/fail conditions, the DL9130EV offers, at the press of a button, Zmax, which will record the maximum Zs test recorded during a recording session, the addition of a Type B RCD test, a fully automated Continuity & Earth Loop Auto Start with a secondary display to capture the recorded results, 2/3 wire high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection and a variable RDC test feature to dial in bespoke mA values.
The DL9130EV offers incredible value and is the perfect tool for EV installation testing, and EV charge point installation which complies with all the safety and performance requirements of BS EN 61557.
Key Features
- Designed for service engineers offering EV installation 6mA pure DC test for RDC-DD verification
- Comprehensive EV testing sequence
- Rmax
- Zmax
- Intelligent auto-detecting two- or three-wire high-current loop test
- Loop impedance/PSCC
- Auto start loop and continuity tests with a null facility
- Type AC, A, B & selective (S) RCD testing
- Variable RCD test
- Auto RCD testing
- 250V, 500V, and 1000V insulation tests
- Phase to phase loop with phase rotation test
- Phase rotation test
- Integrated socket polarity test

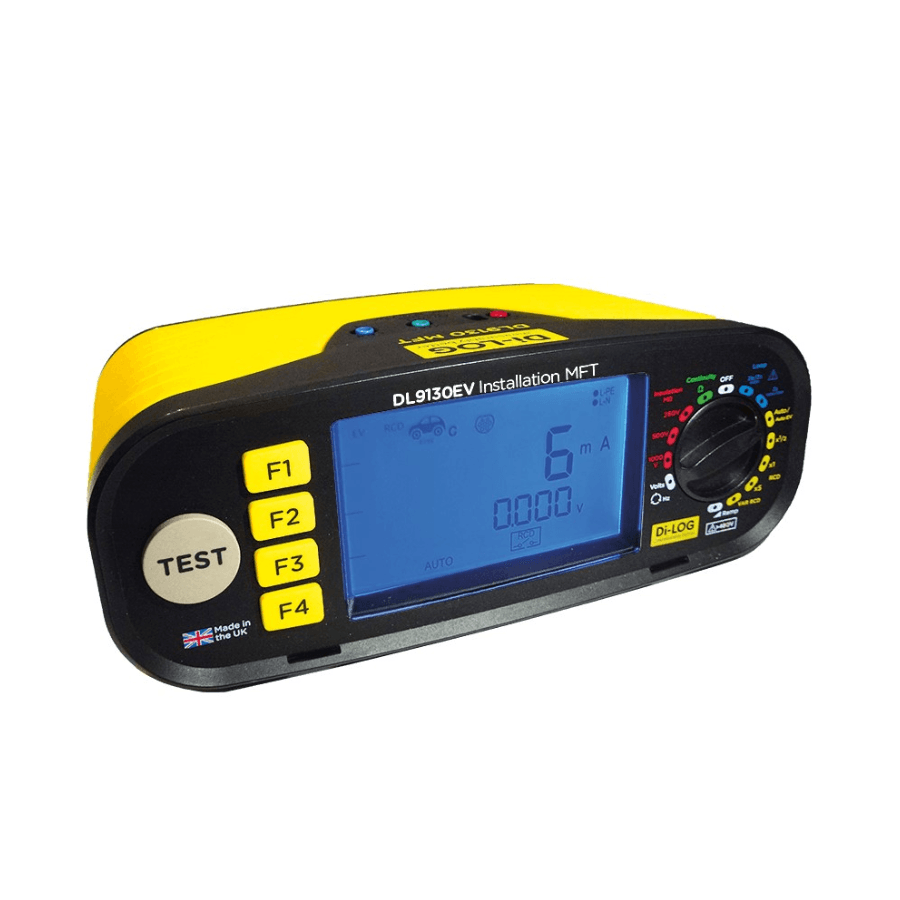

- Colour LCD display
- Colour-changing RGB screen for indicating PASS/FAIL results
- Compliant with BS EN 61557 safety and performance requirements
- Fully protected against damage when accidentally connected across phases
- A comprehensive MFT suitable for verifying the safety of EVSE charge points
