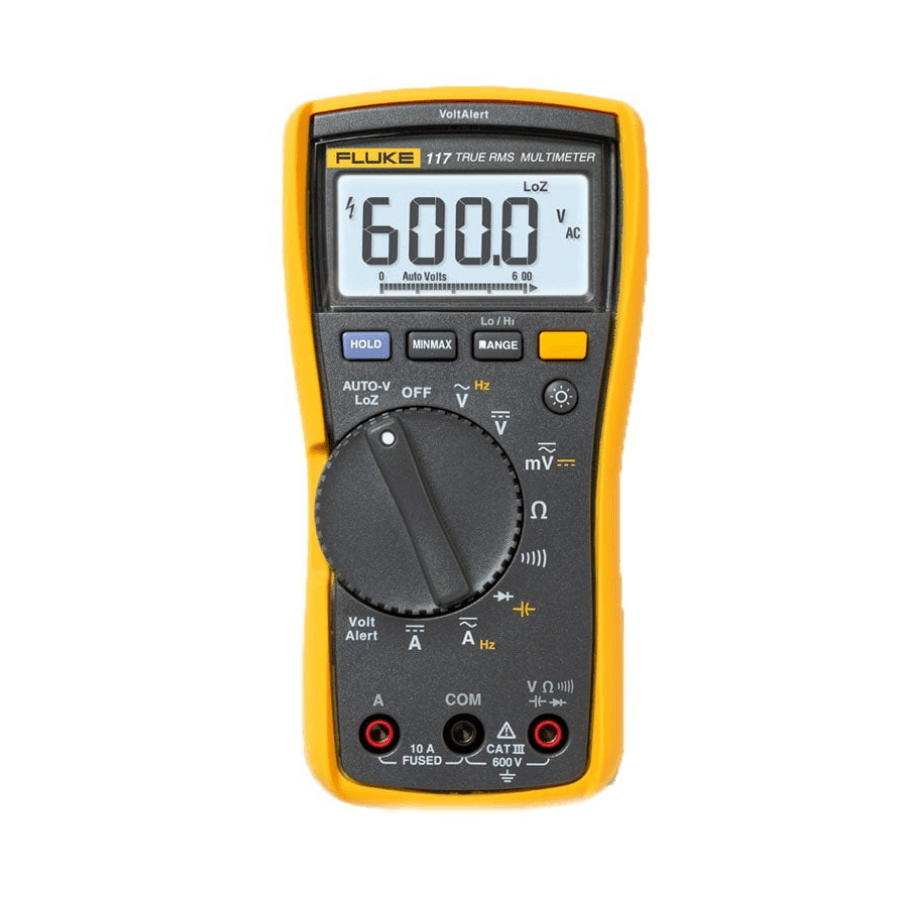

Fluke 117 Electricians Multimeter

The Fluke 117 Electricians Multimeter is a professional True RMS multimeter designed specifically for electricians working in commercial and residential environments. Featuring integrated VoltAlert™ non-contact voltage detection, AutoVolt automatic AC/DC voltage selection and low input impedance (LoZ), it helps deliver faster, safer and more accurate electrical testing while reducing false readings caused by ghost voltage.

Capable of measuring AC/DC voltage and current, resistance, continuity, frequency and capacitance, the Fluke 117 is ideal for everyday electrical troubleshooting, installation and maintenance. Its large white backlit display, one-handed operation and rugged design make it a dependable choice for professionals working on-site or in demanding industrial environments.

Key Benefits

True RMS measurements for accurate readings on non-linear loads
Integrated VoltAlert™ non-contact voltage detection
AutoVolt automatic AC/DC voltage selection
Low input impedance (LoZ) helps eliminate ghost voltage readings
Measures AC/DC voltage up to 600 V and current up to 10 A
Resistance, continuity, frequency and capacitance measurement
Min/Max/Average recording to capture fluctuating signals
Large white LED backlit display for improved visibility in low-light environments
Compact ergonomic design for comfortable one-handed operation
Compatible with the optional ToolPak™ magnetic hanger for hands-free working
CAT III 600 V safety rated for professional electrical testing

Common Applications

The Fluke 117 is ideal for a wide range of electrical testing and troubleshooting tasks, including:

Commercial electrical installations
Residential electrical maintenance
Electrical fault finding
Distribution board and consumer unit testing
Building services maintenance
Equipment commissioning
Preventative maintenance inspections
Electrical troubleshooting where non-contact voltage detection is beneficial

Why Choose This Model?

The Fluke 117 is designed for professional electricians who need a fast, accurate and reliable multimeter with integrated non-contact voltage detection. Features such as VoltAlert™, AutoVolt and LoZ technology help improve efficiency while reducing the risk of incorrect readings caused by ghost voltage. It offers an excellent balance of performance, safety and ease of use, making it one of Fluke’s most popular multimeters for everyday electrical work.

Reviews

There are no reviews yet.

Be the first to review “Fluke 117 True RMS Multimeter”

You must be logged in to post a review.

Feature	Fluke 113	Fluke 114	Fluke 115	Fluke 116	Fluke 117
Recommended Application	General electrical testing	Electrical troubleshooting	Electrical and electronic testing	HVAC and temperature testing	Electrical work with voltage detection
VoltAlert™ Non-Contact Voltage Detection	—	—	—	—	✓
AutoVolt and LoZ Mode	✓	✓	—	✓	✓
V-Chek™ LoZ Function	✓	—	—	—	—
True RMS Measurements	✓	✓	✓	✓	✓
Analogue Bar Graph	✓	✓	✓	✓	✓
Minimum, Maximum and Average Recording	✓	✓	✓	✓	✓
Display Hold	✓	✓	✓	✓	✓
Microamp Measurement	—	—	—	✓	—
Diode Test	✓	—	✓	✓	✓
K-Type Temperature Measurement	—	—	—	-40°C to +400°C	—
Display Count	6,000 counts	6,000 counts	6,000 counts	6,000 counts	6,000 counts
Backlit Display	✓	✓	✓	✓	✓
Safety Rating	CAT III 600 V	CAT III 600 V	CAT III 600 V	CAT III 600 V	CAT III 600 V
Maximum DC Current	—	—	10 A	600 µA	20 A
DC Voltage Accuracy	±(2.0% + 3)	±(0.5% + 2)	±(0.5% + 2)	±(0.5% + 2)	±(0.5% + 2)
Maximum Resistance	60 kΩ	40 MΩ	40 MΩ	40 MΩ	40 MΩ
Maximum Capacitance	10,000 µF	—	10,000 µF	10,000 µF	10,000 µF
Maximum Frequency	—	—	50 kHz	50 kHz	50 kHz
Continuity Range	—	600 Ω	600 Ω	600 Ω	600 Ω
Continuity Response	Buzzer below 20 Ω; off above 250 Ω	Buzzer below 20 Ω; off above 250 Ω	Buzzer below 20 Ω; off above 250 Ω	Buzzer below 20 Ω; off above 250 Ω	Buzzer below 20 Ω; off above 250 Ω
Manufacturer Warranty	3 years	3 years	3 years	3 years	3 years

Fluke 117

Recommended Application

General electrical testing

Electrical troubleshooting

Electrical and electronic testing

HVAC and temperature testing

Electrical work with voltage detection

VoltAlert™ Non-Contact Voltage Detection

—

✓

AutoVolt and LoZ Mode

✓

—

✓

V-Chek™ LoZ Function

✓

600 µA

20 A

DC Voltage Accuracy

±(2.0% + 3)

±(0.5% + 2)

Maximum Resistance

60 kΩ

40 MΩ

Maximum Capacitance

10,000 µF

—

10,000 µF

Maximum Frequency

—

50 kHz

Continuity Range

—

600 Ω

Continuity Response

Buzzer below 20 Ω; off above 250 Ω

Manufacturer Warranty

3 years

Specification	Details
Maximum Voltage to Earth	600 V
Surge Protection	6 kV peak per IEC 61010-1, CAT III 600 V, Pollution Degree 2
Fuse (A Input)	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Digital Display	6,000 counts, updates four times per second
Analogue Bar Graph	33 segments, updates 32 times per second
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Battery Type	9 V alkaline (NEDA 1604A / IEC 6LR61)
Typical Battery Life	Approximately 400 hours without backlight

Specification

Details

Maximum Voltage to Earth

600 V

Surge Protection

6 kV peak per IEC 61010-1, CAT III 600 V, Pollution Degree 2

Fuse (A Input)

11 A, 1000 V FAST Fuse (Fluke PN 803293)

Digital Display

6,000 counts, updates four times per second

Analogue Bar Graph

33 segments, updates 32 times per second

Operating Temperature

-10°C to +50°C

Storage Temperature

-40°C to +60°C

Battery Type

9 V alkaline (NEDA 1604A / IEC 6LR61)

Typical Battery Life

Approximately 400 hours without backlight

Measurement Function	Range & Resolution	Accuracy
DC Millivolts	600.0 mV / 0.1 mV	±(0.5% + 2)
DC Voltage	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V	±(0.5% + 2)
AutoVolt	600.0 V / 0.1 V	2.0% + 3 (45 Hz–500 Hz) 4.0% + 3 (500 Hz–1 kHz)
AC Millivolts (True RMS)	600.0 mV / 0.1 mV	1.0% + 3 (45 Hz–500 Hz) 2.0% + 3 (500 Hz–1 kHz)
AC Voltage (True RMS)	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V	1.0% + 3 (45 Hz–500 Hz) 2.0% + 3 (500 Hz–1 kHz)
Continuity	600 Ω / 1 Ω	Beeper on <20 Ω, off >250 Ω
Resistance	600 Ω to 6 MΩ 40 MΩ	0.9% + 1 5% + 2
Diode Test	2.00 V / 0.001 V	0.9% + 2
Capacitance	1000 nF to 9999 μF	1.9% + 2 Above 1000 μF: 5% + 20%
LoZ Capacitance	1 nF to 500 μF	Typical ±(10% + 2)
AC Current (True RMS)	6.000 A / 0.001 A 10.00 A / 0.01 A	1.5% + 3 20 A overload (30 sec max)
DC Current	6.000 A / 0.001 A 10.00 A / 0.01 A	1.0% + 3 20 A overload (30 sec max)
Frequency	99.99 Hz to 50.00 kHz	0.1% + 2

Measurement Function

Range & Resolution

Accuracy

DC Millivolts

600.0 mV / 0.1 mV

±(0.5% + 2)

DC Voltage

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

±(0.5% + 2)

AutoVolt

600.0 V / 0.1 V

2.0% + 3 (45 Hz–500 Hz)
4.0% + 3 (500 Hz–1 kHz)

AC Millivolts (True RMS)

600.0 mV / 0.1 mV

1.0% + 3 (45 Hz–500 Hz)
2.0% + 3 (500 Hz–1 kHz)

AC Voltage (True RMS)

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

1.0% + 3 (45 Hz–500 Hz)
2.0% + 3 (500 Hz–1 kHz)

Continuity

600 Ω / 1 Ω

Beeper on <20 Ω, off >250 Ω

Resistance

600 Ω to 6 MΩ
40 MΩ

0.9% + 1
5% + 2

Diode Test

2.00 V / 0.001 V

0.9% + 2

Capacitance

1000 nF to 9999 μF

1.9% + 2
Above 1000 μF: 5% + 20%

LoZ Capacitance

1 nF to 500 μF

Typical ±(10% + 2)

AC Current (True RMS)

6.000 A / 0.001 A
10.00 A / 0.01 A

1.5% + 3
20 A overload (30 sec max)

DC Current

6.000 A / 0.001 A
10.00 A / 0.01 A

1.0% + 3
20 A overload (30 sec max)

Frequency

99.99 Hz to 50.00 kHz

0.1% + 2

Specification	Details
Dimensions	167 × 84 × 46 mm
Weight	550 g
Manufacturer Warranty	3 Years

Specification

Details

Dimensions

167 × 84 × 46 mm

Weight

550 g

Manufacturer Warranty

3 Years
