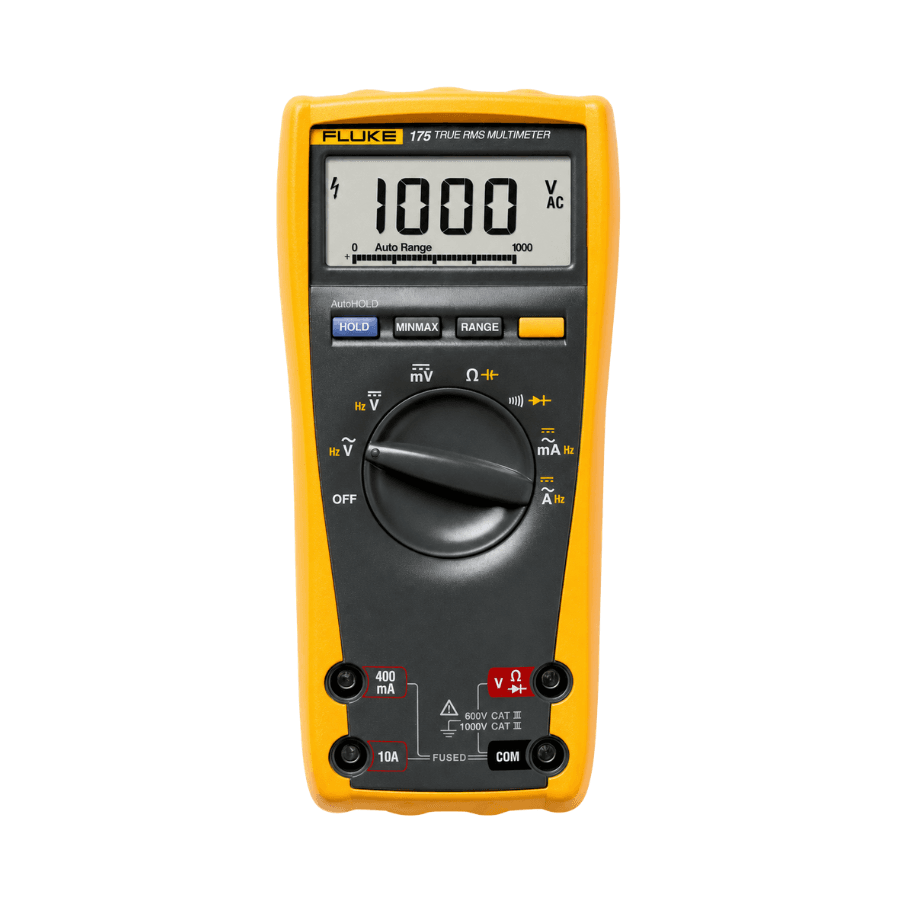

Fluke 175 Digtial Multimeter
The Fluke 175 multimeter is a versatile, precise and reliable unit. It has a wide range of features, it can measure AC/DC voltage, resistance, frequency, capacitance, continuity and diode. These wide range of features make identifying problems simple and speeds up the repair work that may be needed, with the 6000 count digital display, the data recorded can be easily seen and analysed. It is the perfect instrument for checking and maintaining industrial systems.
Features like the MIN/MAX-average and the display/auto hold are made to give convenience to the user as well as making them more efficient in their work, the simple function dial on the unit lets the user switch between what they are testing in a split second with no downtime. The protective casing and the backlit display mean that the Fluke 175 can be used in any environment.
Fluke 175 vs 177 vs 179
175 | 177 | 179 | |
True-RMS measurements | AC | AC | AC |
Digital display counts, 4 times per second | 6000 | 6000 | 6000 |
Display Backlight | – | ● | ● |
Analog bargraph / segments, updates 40 times per second | 33-segments | 33-segments | 33-segments |
Auto and Manual ranging | ● | ● | ● |
Display Hold and AutoHOLD® | ● | ● | ● |
Min-Max-Average recording mode with Min/Max Alert | ● | ● | ● |
Temperature readings (bead thermocouple probe included) | – | – | ● |
Smoothing mode allows filtering of rapidly changing inputs | ● | ● | ● |
Audible continuity and diode test | ● | ● | ● |
Test lead alert | ● | ● | ● |
Unsafe voltage alert warns for voltages above 30V | ● | ● | ● |
Low battery indication | ● | ● | ● |
Ergonomic case with integrated holster | ● | ● | ● |
Easy battery exchange without opening the complete case | ● | ● | ● |
Selectable sleep mode preserves battery life | ● | ● | ● |
Fluke 175 specifications
Functions | Maximum | Max. resolution | Accuracy |
Voltage DC | 1000V | 0.1mV | (0.15%+2) |
Voltage AC | 1000V | 0.1mV | ±(1.0%+3) |
Current DC | 10A | 0.01mA | ±(1.0%+3) |
Current AC | 10A | 0.01mA | ±(1.5%+3) |
Resistance | 50MΩ | 0.1Ω | ±(0.9%+1) |
Capacitance | 10000μF | 1nF | ±(1.2%+2) |
Frequency | 100kHz | 0.01Hz | ±(0.1%+1) |
What’s Included:
