Hikmicro M30 Thermal Imaging Camera

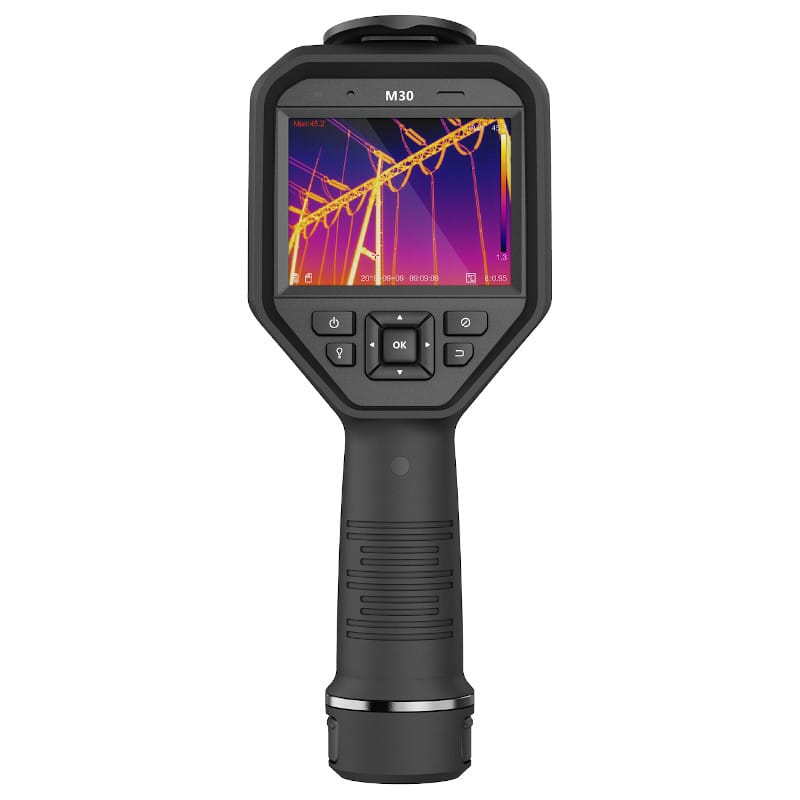

Hikmicro M30 thermal imaging camera

The touchscreen Hikmicro M30 features a powerful 384 x 288 thermal sensor, providing 110,592 pixels per image. It also houses an 8MP digital camera, allowing for advanced Fusion and picture in picture image modes.

• Fusion – Blends visible image detail with the thermal image for highly detailed images.
• Picture in Picture – Places a thermal image inside the digital image.

The M30 is robust and built for everyday use. It is drop tested to a height of 2 meters and also IP54 rated against dust and moisture. It also features 25Hz frame rate for smooth video and image movement.

This camera is suited for temperature measurement between -20°C to 550°C with an accuracy of

Differences between Hikmicro M10 and M30

The M30 benefits from…

• Higher thermal resolution
• Wider field of view
• Improved thermal sensitivity

Hikvsion M Series unboxing and operation

Wi-Fi connectivity

Built in Wi-Fi means the Hikmicro M30 can be used in conjunction with the Hikmicro View app for Android and Apple. Use your smart phone or tablet as a second screen, plus take and store images and videos remotely.

Plug the M30 into a PC to download saved images and use Hikmicro Analyse to edit images and create professional looking reports quickly. Email reports through to colleagues or clients.

Manual focus

With its easy to use manual focus, the Hikmicro M30 can be used to measure objects near and far. Use the focus wheel to achieve clear, in focus images every time.

Other settings including emissivity can be adjusted manually in order to optimise images. This can be done via the camera before taking an image or afterwards using the Hikmicro Analyse software.

Fast temperature measurement

Min, max and centre spot temperatures are shown instantly on screen, updating when temperatures change or when the camera is moved.

Additionally, a focus area can be ‘drawn out’ using the box function on the touch screen, to monitor a specific area within the field of view.

Temperature alarms can also be set by the user to quickly identify temperatures above, below or in-between a certain value(s), a real time saver when out in the field.

Hikmicro M30 key features…

• 384 x 288 thermal resolution
• -20°C to 550°C object temperature measurement range
• Max (±2°C, ±2%) accuracy (object temp. above 0°C)
• 5° × 28.5° field of view (FOV)
• 25Hz frame rate for smooth videos
• Voice and text image annotation
• Manual focus
• 7 colour palettes
• IP54 rated
• 4 image modes: Thermal, Fusion, Picture in Picture, Digital
• 5’’ LCD touch display
• Max 8 MP digital camera resolution
• Laser pointer
• Lithium ion rechargeable battery
• 4 hour battery life

Hikmicro M Series Comparison

What’s included

• Hikmicro M30 Handheld Thermal Camera
• Quick Start Guide
• 4x Adapters
• USB Cable
• Power Adapter
• 2x Battery
• Charging Base
• Wrist Strap
• Box
