Kane 358 Flue Gas Analyser (Choice of Kit)

Kane 358 Flue Gas Analyser

The Kane 358 Combustion Flue Gas Analyser, equipped with CO sensor protection, simplifies and speeds up the installation or servicing of oil, domestic gas, or biomass appliances. It expertly calculates CO2, CO/CO2 ratio, and excess air, making it a top choice for commissioning, let-by, and tightness testing. Moreover, this analyser performs a range of measurements:

• CO levels from 0-2,000ppm
• O2 levels from 0-21%
• Differential temperature
• High accuracy differential pressure meter at +/- 80mbar

Featuring intuitive purge pump protection to prevent accidental CO sensor damage, the Kane 358 ensures reliable combustion performance and efficiency checks. Additionally, it’s fully suitable for Flue Draughts and compatible with various fuel types, including Natural Gas, LPG, Butane, Light Oil, Propane, and Wood Pellets.

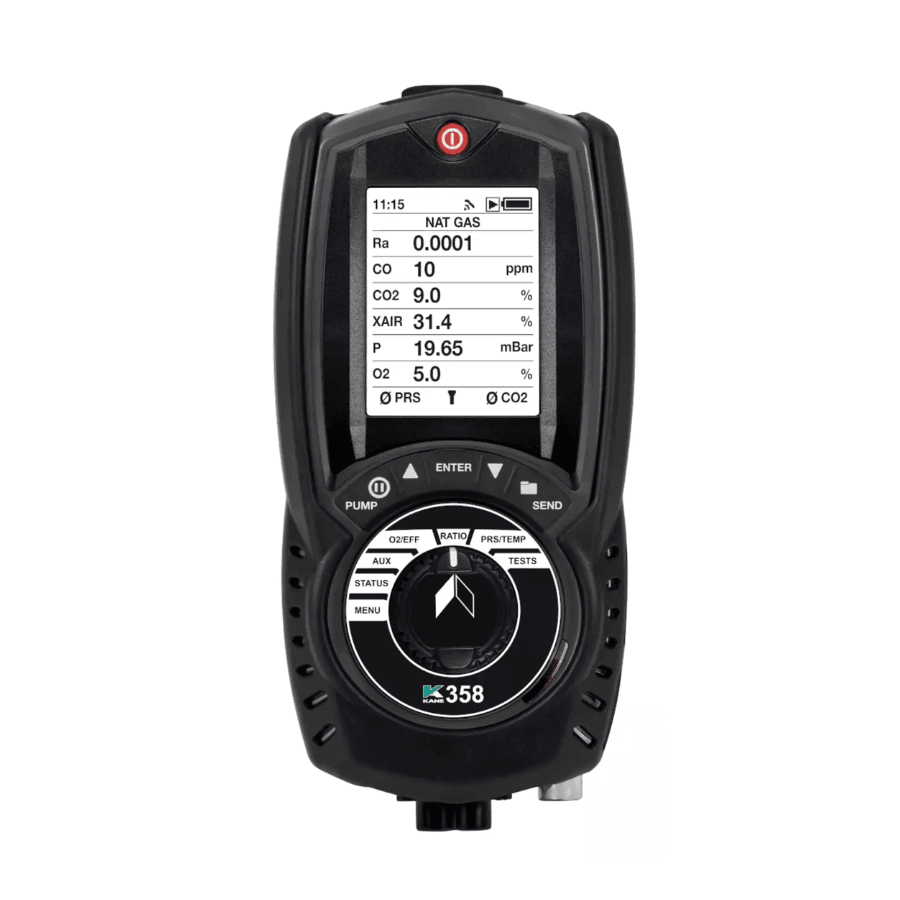

The Kane 358 allows for quick switching between measurements using its large, user-friendly rotary dial. Its bright digital screen displays six lines, and the unit has capabilities for data holding, logging results, and printing user details with an optional printer.

Kane Live & Wireless Module

Choose the Wireless Module model for direct data relay to Kane Live & Printer apps; note that a fitted module is required for compatibility. There might be a slight delay in delivery for this option.

The Kane Live App, for Android, is available on the Play Store, offering features like live test results, real-time GPS tagging, and on-site printouts. Users can share and edit printouts and download logs as CSV files.

The Kane Printer App, compatible with both Android and iOS, facilitates easy analyser connection, result viewing, and emailing. It features GPS logging, editable printouts, and a NightMode for low light conditions.

Measures

• CO 0-2,000ppm
• O2 0-21%
• Differential temperature
• Differential pressure meter +/- 80mbar

Calculates

• CO2 0-20%
• CO/CO2 ratio
• Excess air
• Combustion efficiency

Applications

• Appliance installation and service
• Combustion performance and efficiency checks
• Flue draught

Furthermore, the Kane 358 is compatible with the most commonly found fuel types, natural gas, LPG, wood pellets, Butane, Propane and light oil.

The Kane 358 also has the ability to conduct let-by and tightness testing, as well as flow and return pipe temperature measurements. Additional accessories are required for both of these measurements, which are included in the PRO and CPA1 kits.

Advanced protection in and out of service

Intuitive purge pump protection prevents accidental damage from CO over exposure, reducing potential downtime and costly repairs.

The 358 is also protected with up to 10 years warranty with ‘Kane Care’ when the instrument is returned to Kane for annual calibration.

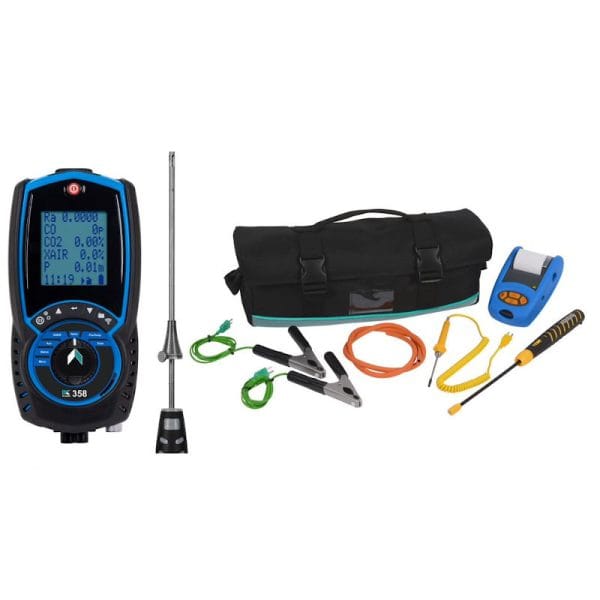

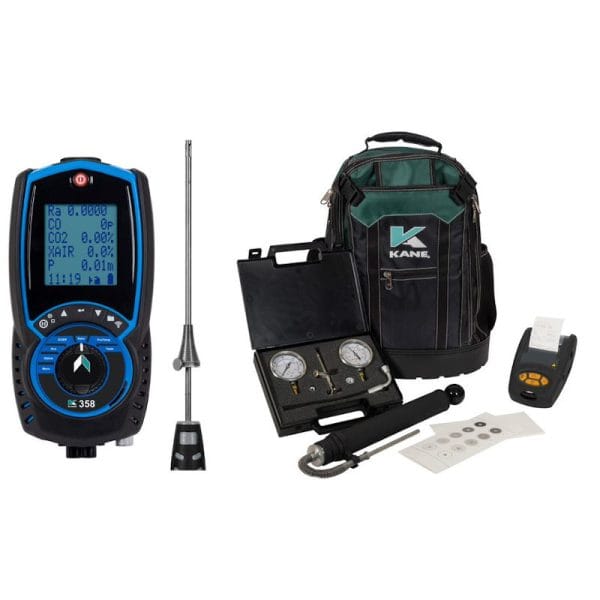

Kane 358 Kit Options

Kane 258 / 358 / 458 Comparison

Key Features

• Ideal for appliance installation and servicing
• Structured Benchmark new boiler commissioning test
• Large, back lit 6 line display
• Purge pump protection preventing accidental CO sensor damage
• Easy to use rotary dial
• 20% hydrogen blend ready
• Performs combustion performance checks
• Performs combustion efficiency checks
• Carry out tightness and let-by testing
• Measures CO from 0 – 2,000ppm
• Measures 02 from 0 – 21%
• Built in high accuracy differential pressure meter +/- 80mbar
• Differential temperature measurement
• Calculates CO2 from 0 – 20%
• Calculates CO/CO2 ratio
• Calculates excess and combustion efficiency
• Multi fuel including natural gas, LPG, wood pellets and light oil
• Includes data hold and log functions
• Available in range of kits with additional accessories
• Up to 10 year warranty with Kane Care
• Optional wireless upgrade

Kane calibration and service

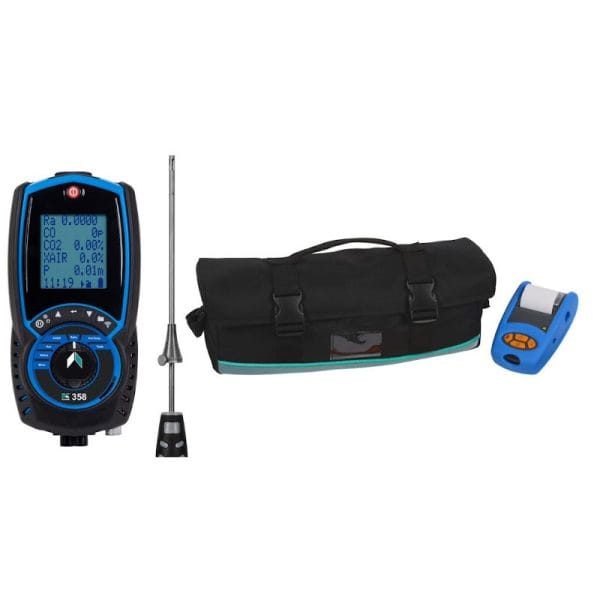

What’s Included

• Kane 358 Flue Gas Analyser
• CP2 Combustion Probe
• USB Charger
• Pressure connector
