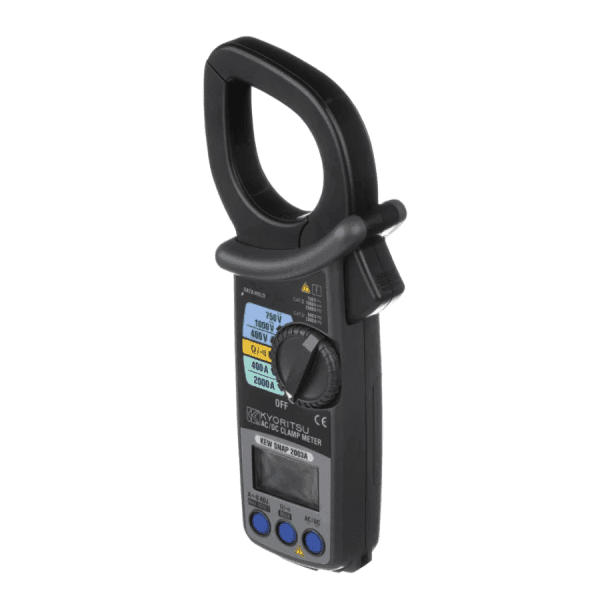

Kewtech KEW2003A AC/DC Digital Clamp Meter
The Kewtech KEW2003A AC/DC Digital Clamp Meter is designed for accurate and efficient measurement of AC and DC currents up to 2000A, making it an essential tool for larger solar installations. This versatile meter not only measures current but also voltages up to 750V AC and 1000V DC. Equipped with a large 55mm jaw, it easily clamps onto systems for quick and hassle-free testing, displaying results on its clear LCD screen.
Ideal for professional use, the KEW2003A includes a max hold memory function, resistance measurement capabilities, and a continuity buzzer. These features ensure reliable performance and user-friendly operation. The rotary dial allows for smooth switching between different parameters, streamlining the testing process and enhancing productivity.
Safety is a priority with the KEW2003A, as it complies with IEC61010-1 CAT IV 600V and CAT III 1000V standards. Whether you need to measure high currents, voltage, or resistance, this clamp meter delivers accurate readings and durability. It also features an output for continuous recording, adding to its versatility for extensive testing tasks.
Key Features
- Measures AC/DC current levels up to 2000A
- Measures voltages up to 750V AC and 1000V DC
- Max hold memory function for convenient data retention
- Resistance measurement capability
- Continuity buzzer for easy circuit verification
- Wide frequency response from 40Hz to 1kHz
- Large 55mm jaw for clamping onto various systems
- Complies with IEC61010-1 CAT IV 600V, CAT III 1000V standards
- Output for continuous recording
- Rotary dial for easy parameter switching
Technical Specifications
- Resistance: 400/400Ω ±1.5%rdg ±2dgt
- Continuity Buzzer: Sounds below 50 ± 35 Ω
- Output Voltage: 400/2000A DC 400mV/200mV
- Conductor Size: 55mm max diameter
- Safety Standard: IEC61010-1 CAT III 600V 1000V, IEC61010-2-031, IEC61010-2-032
- Frequency Response: 40Hz to 1kHz
- Withstand Voltage: 5550V AC for 1 minute
- Reading Type: Average
- Dimensions: 250(L) x 105(W) x 49(D) mm
- Weight: Approximately 530g
