£596.55 (ex VAT)

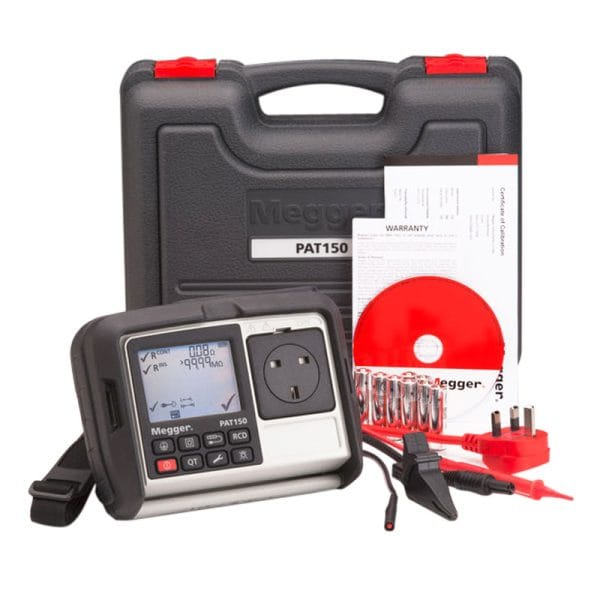

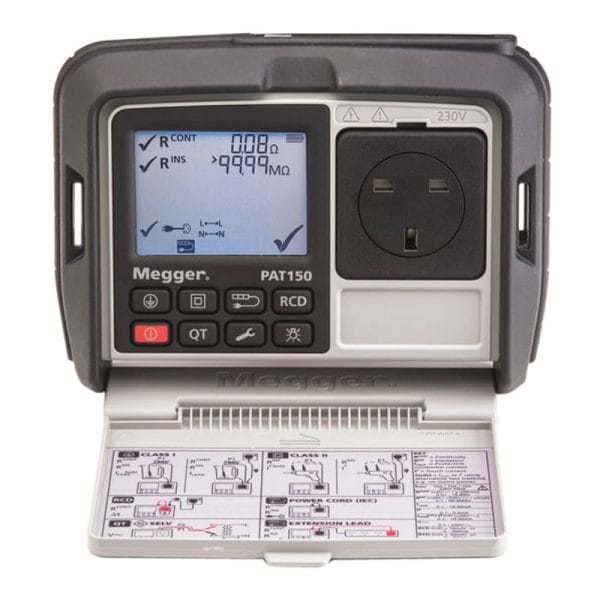

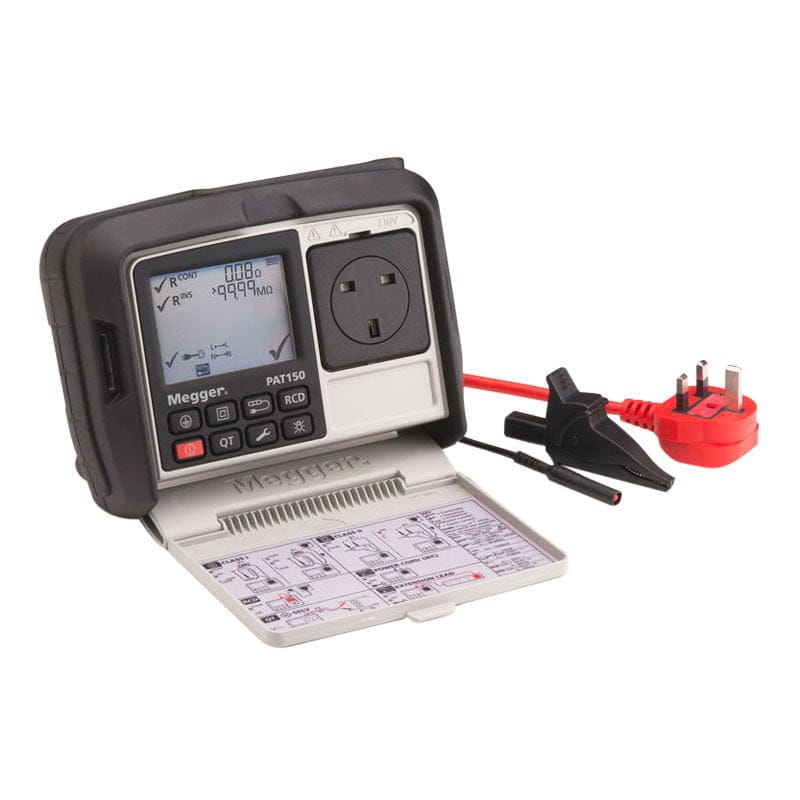

Megger PAT150 PAT Tester
With its more advanced feature set, the PAT150 is the next development from the PAT120 in Megger’s range of PAT Testers. However, it still features the same ruggedness, convenience and simplicity of use that the PAT120 possesses. It’s the perfect mid-range PAT tester.
The new features on the PAT150 that don’t feature on the PAT120 are that it can manually test continuity, insulation, main powered leakage and SELV (separated extra low voltage) measurements. The auto test sequence on the PAT150 are the Class I, Class II, extension lead and power cords as well as the Portable RCD test. The PAT 150 also has the ability to null test leads whilst testing. When it comes to testing surge protected equipment, the PAT150 is the perfect tool as it protects them by carrying out the insulation test at 250V and the leakage test at 40V (this can be selected at the start of the test).
| Specifications | PAT120 | PAT150 | PAT150R | |
| Insulation Test | 500 V | √ | √ | √ |
| 250 V | √ | √ | √ | |
| Earth bond test | 200 mA | √ | √ | √ |
| Earth Leakage options | 250 V | √ | √ | √ |
| 500 V | √ | √ | √ | |
| Alternative Leakage | Substitute | √ | √ | √ |
| Differential | √ | √ | ||
| Touch Current | √ | √ | ||
| Functional Test | 240 V | √ | √ | |
| Test Socket | BS1363 | √ | √ | √ |
| Test lead null | √ | √ | ||
| Automatic test sequence | Class I (earthed) | √ | √ | √ |
| Class II (double insulated | √ | √ | √ | |
| Extension Lead and Power cords | √ | √ | √ | |
| Portable RCD | √ | √ | ||
| Manual Tests | Continuity | √ | √ | |
| Insulation | √ | √ | ||
| Main Powered Leakage | √ | √ | ||
| SELV Measurements | √ | √ | ||
| Combined continuity, earth bond and insulation test lead | √ | √ | √ | |
| On-board battery re-charging | √ | |||
| FREE calibration certificate | √ | √ | √ | |
What’s Included
