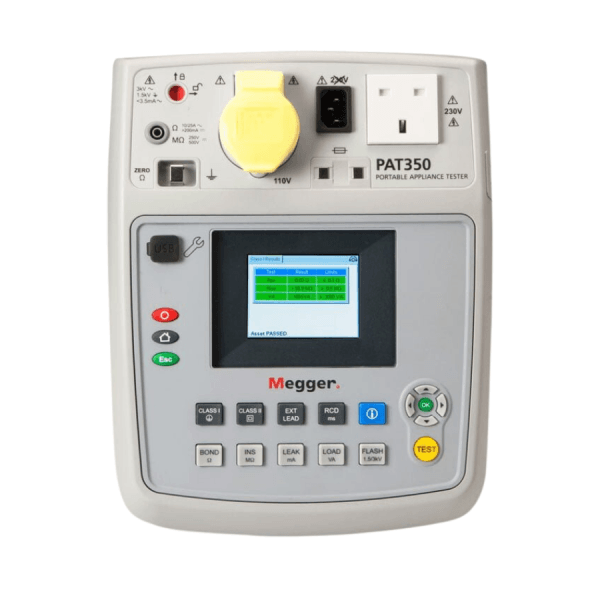

Megger PAT350 PAT Tester
The Megger PAT350 PAT Tester is an easily portable desktop appliance tester for testing the safety of portable electrical equipment to meet health and safety regulations. The Megger PAT350 series are fully featured testers with dedicated test buttons for direct access to tests. They are designed for customers who do not require the complexity of fully configurable data-based client/results facilities within the tester, but do need a completerange of functions to allow automatic or manual testing of the widest range of electrical assets.
Simple push-button operation make the Megger PAT350 fast and intuitive in use. All regulatory test requirements are supported, including Class I and Class II; IEC power leads; extension leads and full tests for portable RCDs. An automatic mode is available for Class I and Class II testing. In automatic mode, the tests proceed sequentially through bond, insulation and operation, indicating a pass or fail at each test. If a fail occurs, testing is stopped. When manual testing, each test is preceded by a selection screen where the test parameters are selected, such as bond test current, insulation test voltage or leakage test type. These diagnostic buttons provide direct access to any test individually, allowing single tests to be performed following repair or a suspect result.
Megger PAT350 PAT Tester has additional flash test functions and is the ideal tester for high throughput requirements if you work in a tool hire company or a service centre.
Features:
- Simple manual or automatic testing
- 230 V or 110 V operation
- Full colour display
- Tests portable RCD’s and extension leads emfs
- Bond testing 25 A, 10 A, and 200 mA

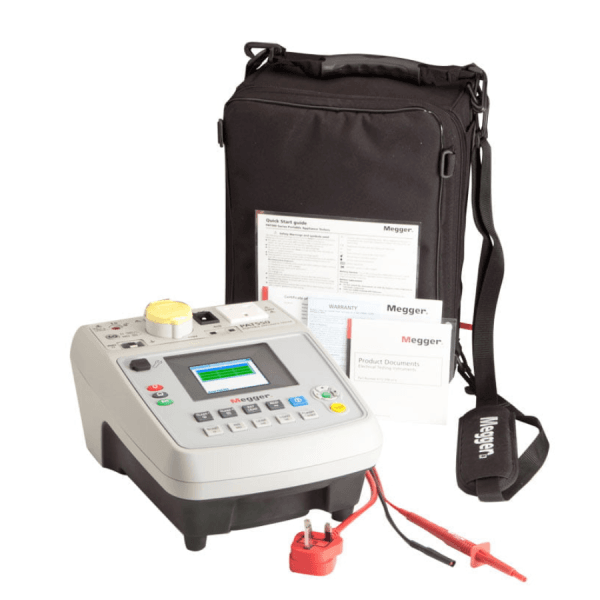

What’s Included?
- Megger PAT350
- Carry case
- Mains Lead
- Continuity/Earth Bond Lead
- Extension Lead Adaptor BS1363
- Flash Test Lead
Megger Part Code: 1000-743
