£135.00 (ex VAT)

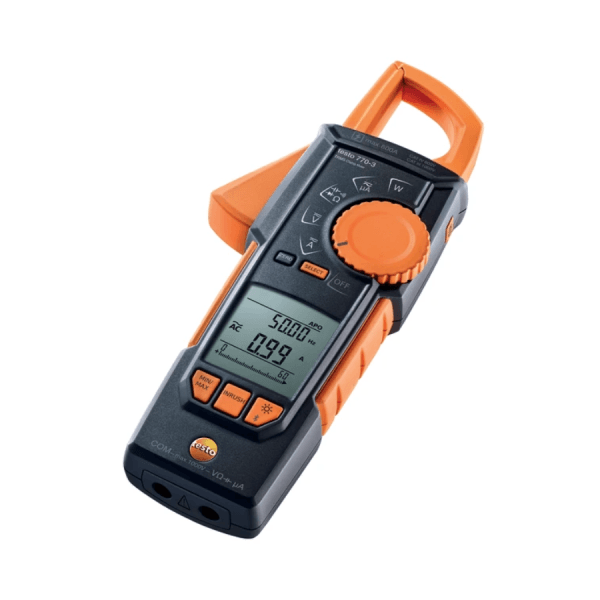

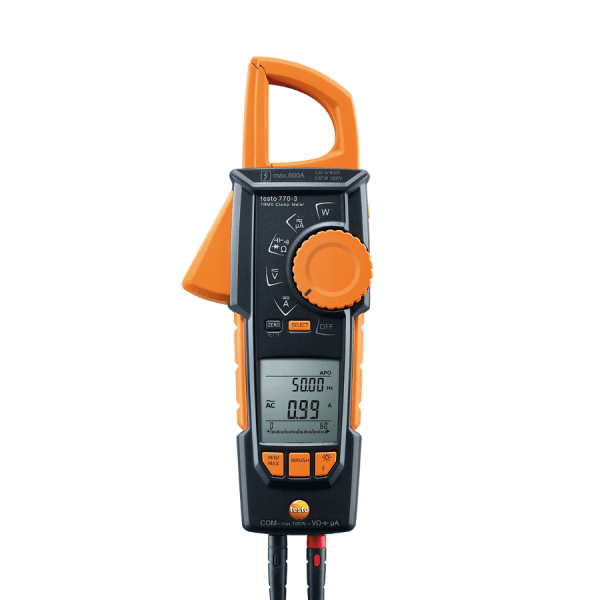

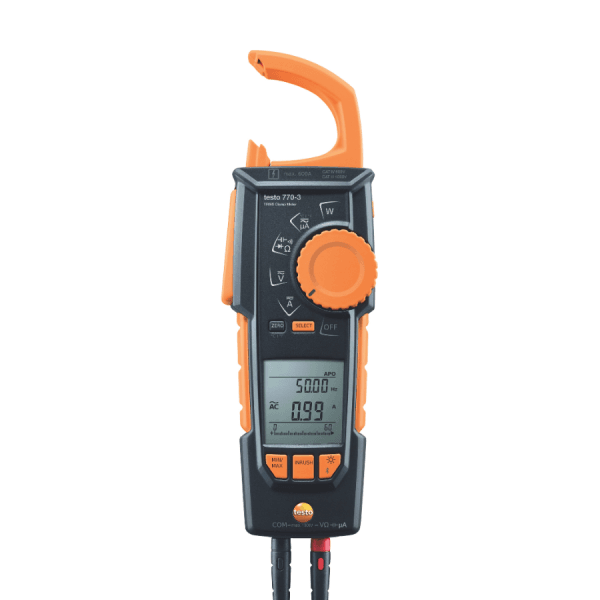

Testo 770-3 TRMS Clamp Meter with Bluetooth
Hook-clamp Digital Multimeter 600 A with TRMS, Inrush and Temperature and Power Measurement and Bluetooth
The 770-3 additionally includes real-time power measurements (Watts), Power Factor, and Bluetooth. The Testo App can be used for remote viewing, monitoring trending over time, and creating reports. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.
Overview
The 770 series identifies the testing in-process and automatically selects the correct meter configuration which saves you time and increases your accuracy. The 770 series of instruments are rich in the features HVAC techs need and want including TRMS, starting current, and frequency measurement.
Key Features
Specifications
Temperature – Type K TC | |
Measuring range | -4.0° to 932.0 °F / -20 to +500 °C |
Accuracy | ±1.8 °F (32.0° to 212.0 °F) / ±1 °C (0 to +100 °C) |
Resolution | 0.1 °F / 0.1 °C |
DC voltage | |
Resolution | 6.000 V / 1 mV |
60.00 V / 10 mV | |
600.0 V / 100 mV | |
Accuracy | ± (0.8 % of mv + 3 Digit) |
AC voltage
|
|
Resolution | 6.000 V / 1 mV |
60.00 V / 10 mV | |
600.0 V / 100 mV | |
Accuracy | ± (0.8 % of mv + 3 Digit) |
DC current | |
Resolution | 600 A / 0.1 A |
Accuracy | ± (2 % of mv + 5 Digit) |
AC current | |
Resolution | 600 A / 0.1 A |
Accuracy | ± (2 % of mv + 5 Digit) |
Resistance | |
Resolution | 60.00 Ohm / 0.01 Ohm |
600.0 Ohm / 0.1 Ohm | |
6.000 kOhm / 1 Ohm | |
60.00 kOhm / 10 Ohm | |
600.0 kOhm / 100 Ohm | |
6.000 MOhm / 1 kOhm | |
60.00 MOhm / 10 kOhm | |
Accuracy | ± (1.5 % of mv + 3 Digit) |
Capacitance | |
Resolution | 6.000 nF / 0.001 nF |
60.00 nF / 0.01 nF | |
600.0 nF / 0.1 nF | |
6.000 μF / 0.001 μF | |
60.00 μF / 0.01 μF | |
600.0 μF / 0.1 μF | |
6.000 mF / 1 μF | |
60.00 mF / 10 μF | |
Accuracy | ± (1.5 % of mv + 5 Digit) |
Frequency | |
Resolution | 99.99 Hz / 0.01 Hz |
999.9 Hz / 0.1 Hz | |
9.999 kHz / 1 Hz | |
Accuracy | ± (1.0 % of mv + 1 Digit) |
General technical data | |
Warranty | 2 years |
Storage temperature | 5.0° to 140.0 °F / -15 to +60 °C |
Weight | 13 oz. / 378 g |
Overvoltage Category | CAT IV 600V; CAT III 1000V |
Authorizations | TÜV; CSA; CE |
Dimensions | 10 x 4 x 2 in. / 243 x 96 x 43 mm |
Operating temperature | 14.0° to 122.0 °F / -10 to +50 °C |
Instrument and measurement functions | |
Diode test | Yes |
Continuity Testing | Yes |
Display ligthing | Yes |
Hold | Yes |
MinMax | Yes |
Power Measurement | Yes |
Temperature measurement with adapter | Yes |
True RMS | Yes |
Inrush current measurement | Yes |
Bluetooth | Yes |
Display (counts) | 6,000 |
What’s Included
