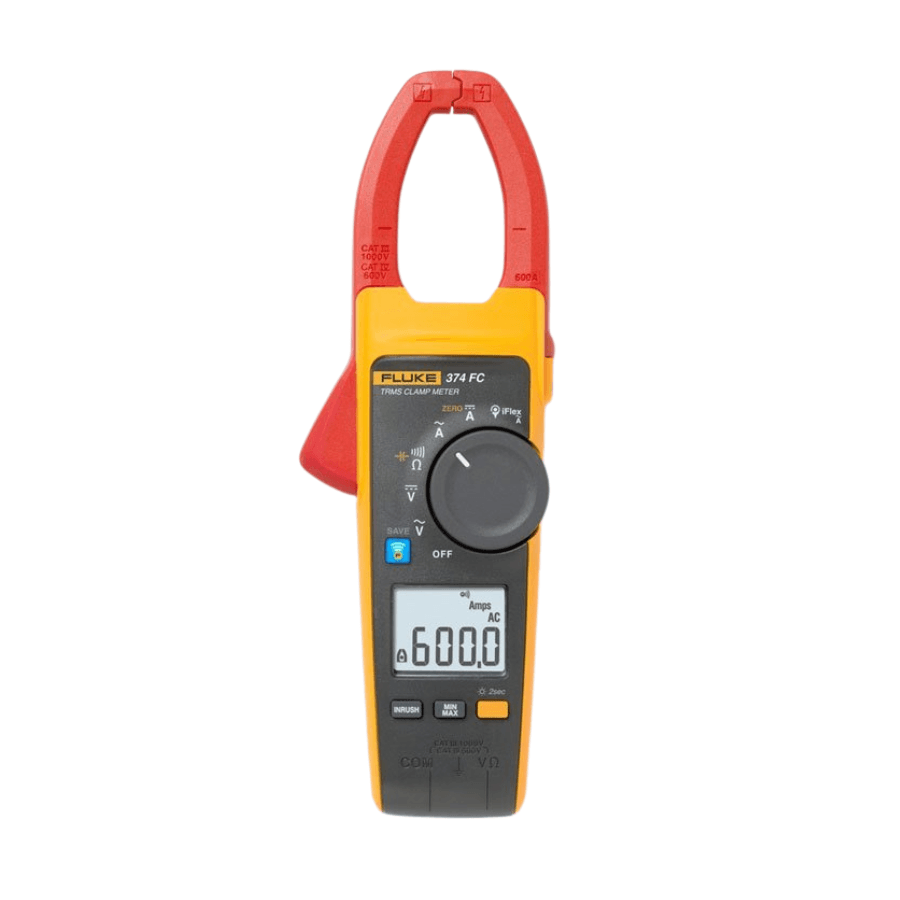

Fluke 374 True RMS AC/DC Clamp Meter
The Fluke 374 FC clamp meter is a straightforward, easy to use clamp meter that can connect to the user’s smartphone or tablet, via Fluke Connect.
Measure both AC and DC current up to 600A with the standard fixed clamp, or up to 2500A AC with the optional iFlex probe.
Fluke Connect
Simply connect the Fluke 374 FC via Bluetooth to a smart phone or tablet. Measurements are displayed in real time on the smart device and clamp meter, meaning more than one person to view readings at the same time. Furthermore, Fluke Connect allows the engineer to observe readings at a safe distance away from possible dangers such as arc flash.
True RMS measurement
The Fluke 374 FC features True RMS AC current and voltage measurement, proving accurate readings even on noisy circuits with nonsinusoidal waves.
Furthermore, the Fluke 374 FC measures AC and DC voltage up to 600V, plus resistance up to 6000 and capacitance from 1μF to 1000μF.
Fluke safety and quality
The Fluke 374 FC comes with a CAT IV 600 V, CAT III 1000 V safety rating, plus a 3 year warranty. The included Fluke TL75 test lead set features GS38 compliant probe caps. A soft carry case is also included for added protection.
- Trend measurements and pinpoint intermittent faults by connecting your meter to your phone via Fluke Connect® Measurements app
- Transmit results wirelessly via Fluke Connect® Measurements app
- Create and send reports right from the field
- Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devices
Fluke 374 FC key features
- Connect your meter to your smartphone with Fluke Connect Measurements
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Cloud
- Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
- Compatible with iFlex flexible current probe; use to expand the measurement range to 2500 A ac; provides access to large conductors in tight spaces
- Compatible with TPAK magnetic hanging strap
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
- Soft carrying case
Measurement Capability
- 600 A AC and DC current measurement
- 2500 A AC current measurement with (optional) iFlex flexible current probe
- 1000 V AC and DC voltage measurement
- True-rms voltage and current for accurate measurements on non-linear signals
- Resistance measurement to 6000 Ω with continuity detection
- Min, max, average, and inrush recording to capture variations automatically
- 1000 μF capacitance measurement
Fluke 374 vs 375 vs 376
The table below compares the Fluke 374 to two other clamp meters in the Fluke 370 series, the Fluke 375 FC and 376 FC
| Features | Fluke 374 | Fluke 375 | Fluke 376 |
| A ac range (jaws) | 600 A | 600 A | 999.9 A |
| A ac range (iFlex) | 2500 A | 2500 A | 2500 A |
| A dc range | 600 A | 600 A | 999.9 A |
| Best resolution | 0.1 A | 0.1 A | 0.1 A |
| V ac range | 1000 V | 1000 V | 1000 V |
| V dc range | 1000 V | 1000 V | 1000 V |
| mV dc range | – | 500 mV | 500 mV |
| Ohms range | 6000 Ω | 60.00 kΩ | 60.00 kΩ |
| Frequency | – | 5-500.0 Hz | 5-500.0 Hz |
| Capacitance | 1 μ-1,000 μF | 1 μF-1,000 μF | 1 μF-1,000 μF |
| True RMS | ● | ● | ● |
| Display hold | ● | ● | ● |
| Inrush measurements | ● | ● | ● |
| Backlight | ● | ● | ● |
| DC zero | ● | ● | ● |
| Min/max | ● | ● | ● |
| VFD low pass filter | – | ● | ● |
| Logging | – | ● | ● |
| iFlex current clamp | OPTIONAL | OPTIONAL | Included |
| Fluke Connect compatible | ● | ● | ● |

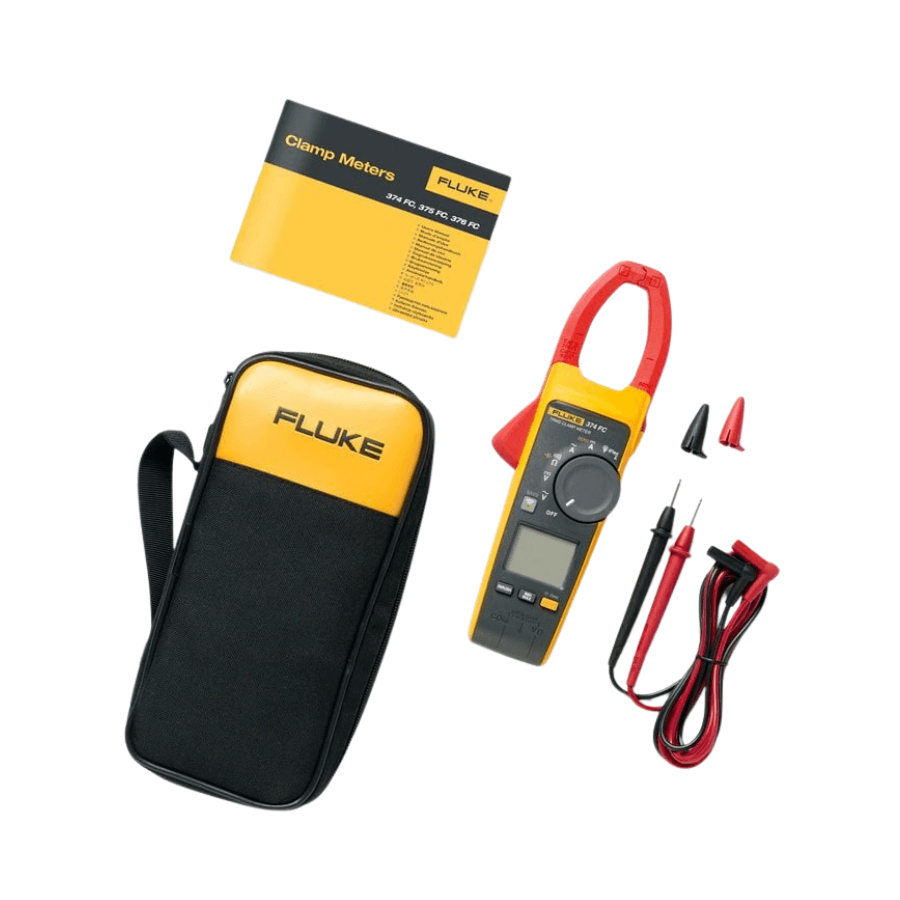

What’s included
- Fluke 374
- Coated Instruction Card
- Safety Information Sheet
- Soft Carrying Case
- TL75 Test Leads
- Two AA Alkaline Batteries
- TPak magnetic hanging strap
