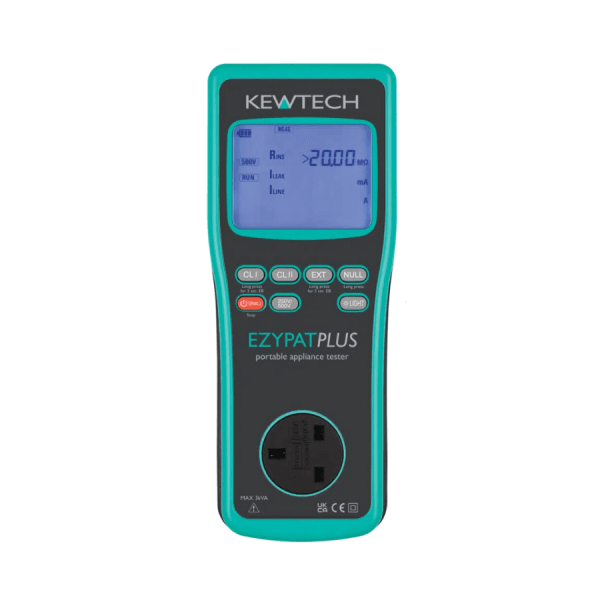

Kewtech EZYPAT PLUS PAT Tester
The Kewtech EZYPAT PLUS portable appliance tester complies with the testing requirements set out in the IET 5th edition code of practice. The EZYPAT PLUS retains all the standard features of the entry level Kewtech EZYPAT, but includes the ability to perform 110V and 230V run leakage tests. This tester can be used for the following…
- Class I appliances
- Class II appliances
- Extension leads
- Testing sensitive equipment
- Run leakage tests (110V and 230V)
Run leakage tests
Some appliances include a physical on / off switch (such as a vacuum cleaner or toaster). In order to fully test these appliances, they may need to be powered up by the tester. The Kewtech EZYPAT PLUS has the ability to power up or ‘run’ 230V and 110V appliances, allowing for touch leakage and earth leakage measurements to be carried out.
Can the EZYPAT PLUS test sensitive equipment?
Yes. The EZYPAT PLUS has both 250V and 500V insulation test ranges as well as a 200 mA earth bond test. This enables the safe testing of sensitive appliances (such as office IT equipment) where higher voltages may cause damage to the appliance under test.
The EZYPAT PLUS is a lightweight battery-operated tester that has automatic test sequences designed to make PAT testing simpler and more efficient, allowing you to get through your workload faster. Furthermore, the screen glows green for pass and red for fail, allowing for quick visual indication of overall result.
Kewtech EZYPAT PLUS features
- Easy to use with auto test sequences
- Test Class I, Class II and extension leads
- Battery operated, with long battery life, approx. 1400 tests
- PASS / FAIL (Green / Red) screens
- Large backlit display with measurement results
- Appliance status pre-check
- Quick check and 5 second continuity options
- Selectable 250V and 500V insulation
- 110V and 230V run leakage test
- Substitute leakage test
- Fast and easy test lead null
- Compatible with FREE KEWPAT app
Kewtech PAT Tester comparison
| EZYPAT | EZYPATPLUS | SMARTPAT | |
| Battery operated | ● | ● | ● |
| Auto test sequences | ● | ● | ● |
| PASS / FAIL – green / red screens | ● | ● | ● |
| Appliance status pre – check | ● | ● | ● |
| Fast continuity check | ● | ● | ● |
| Extended 5 second continuity test | ● | ● | ● |
| 250V insulation test | ● | ● | ● |
| 500V insulation test | ● | ● | ● |
| Substitute leakage test | ● | ● | ● |
| Extension lead test | ● | ● | ● |
| Test lead nulling | ● | ● | ● |
| Back light | ● | ● | ● |
| 110V run / leakage test | ● | ● | |
| 230V run / leakage test | ● | ● | |
| Portable RCD test 10mA and 30mA | ● | ||
| Remote control via KEWPAT APP | ● |
The EZYPAT PLUS and KEWPAT App
The FREE to download KEWPAT APP helps make your PAT testing that bit easier. The app is designed to work alongside your EZYPAT enabling fast manual documentation including appliance risk assessment, record documentation and also covers your obligations for holding a product register.
- Record asset information (ID, description, location etc.)
- Fast data entry using your smart device
- Take photos using your smart device and add it to the record
- Guidance on appliance risk assessment and testing frequency
- Checklist for visual inspection criteria
Print labels and barcodes (optional printer required)
Download the FREE KEWPAT APP to your Android or IOS device now and use it with any brand of PAT tester to start making your data recording easier.

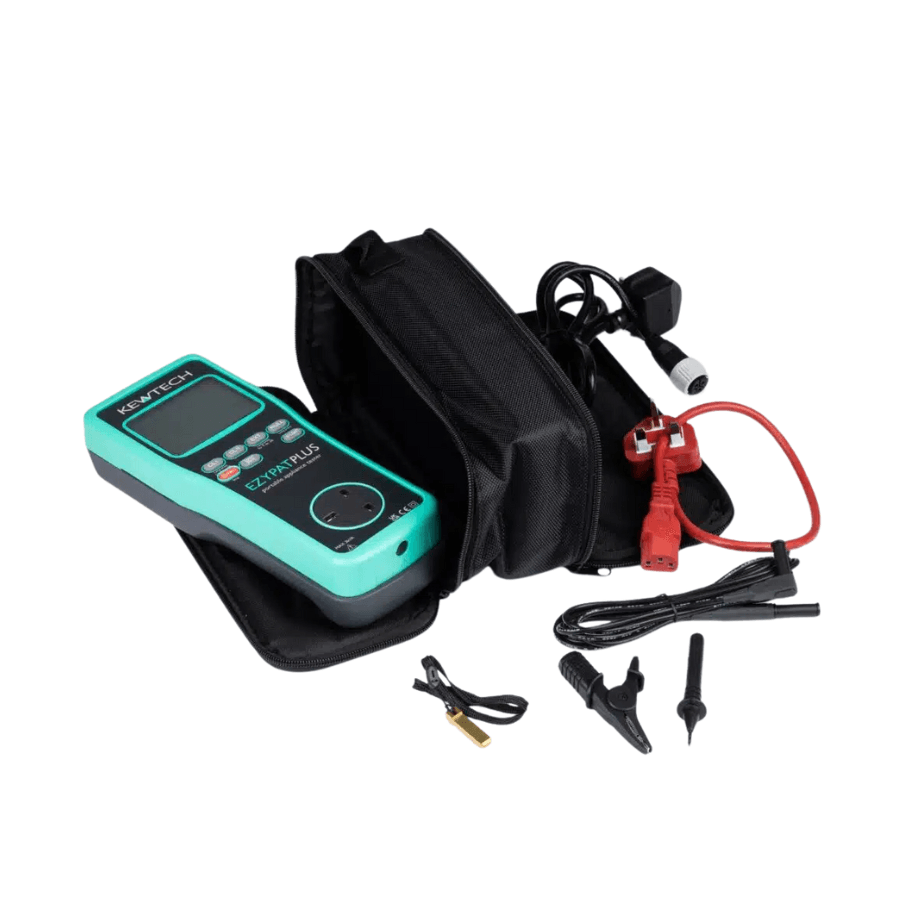

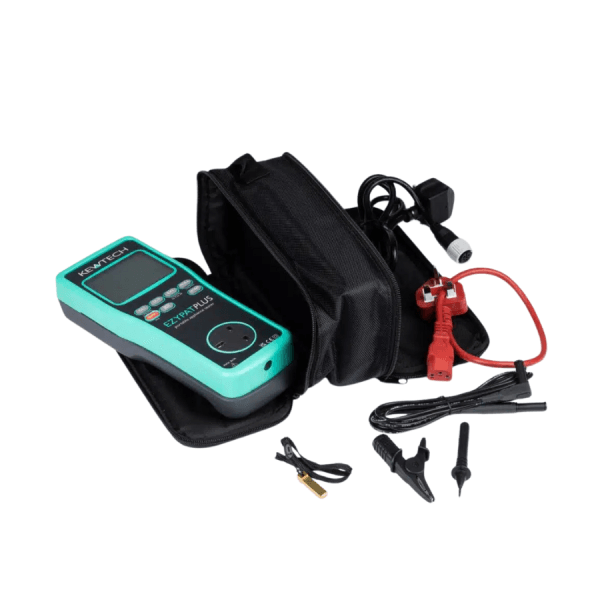

What’s included
- Kewtech EZYPAT PLUS PAT Tester
- EZYLEAD Extension Lead Adapter
- EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip
- EZYMAIN Mains Lead
- Carry Bag with Strap
- Quick Start Guide
- End of Line Calibration Certificate
