Seaward Primetest 250+ PAT Tester (Choice of Kit) 403A910

Seaward Primetest 250+ PAT Tester 403A910

The Seaward Primetest 250+ is the latest addition to the Primetest range, offering a fantastic value and easy-to-use solution for mid-volume testing. With its comprehensive features and user-friendly design, it is suitable for various testing needs.

• Data Storage and Label Printing: The Primetest 250+ includes data storage capabilities and supports label printing with an optional serial printer. The included free datalogging software allows easy access to the downloaded data in CSV format.
• Flexible Testing Capabilities: The tester can handle testing for Class 1, Class 2, and Class 2 FE (functional earth) equipment such as laptop chargers. Furthermore, it allows customization of Pass/Fail limits based on lead length.
• Enhanced Leakage Testing: The Primetest 250+ offers a 5mA leakage limit on PE Conductor Current Test, Touch Leakage Test, and Alternative/Substitute Leakage Test.

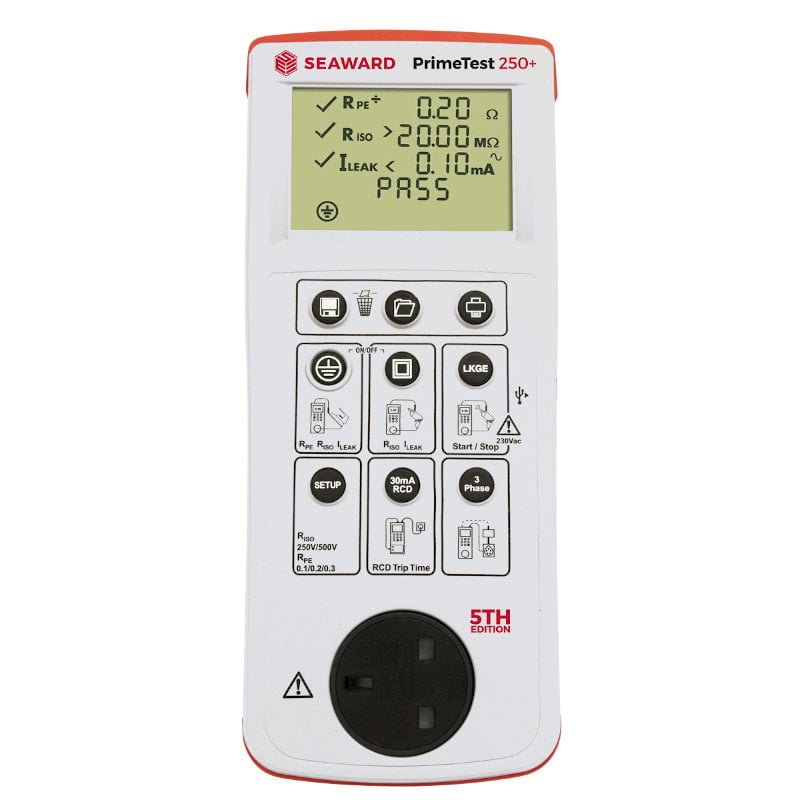

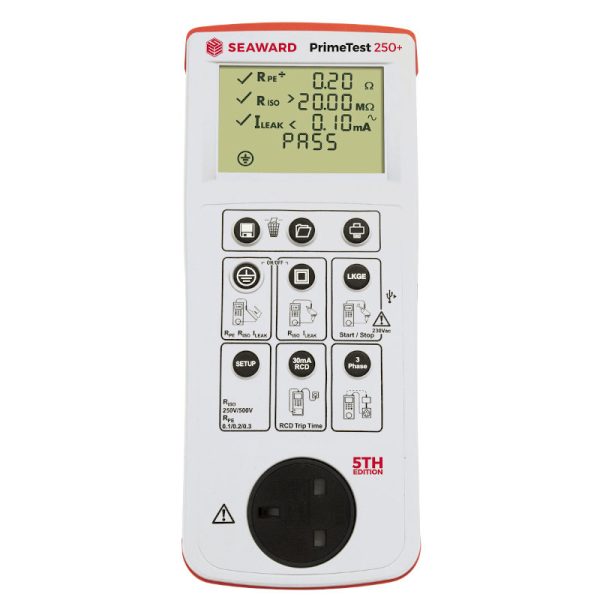

• Durability and Portability: With a tough and compact design, the Primetest 250+ inherits the key benefits of other testers in the Primetest range. It features a straightforward interface with large buttons and a clear LCD display. Additionally, it provides the convenience of performing 5000 tests using a single set of batteries.
• Simplified Testing Process: Class 1 and Class 2 tests can be easily performed with just a touch of a button.

Integration with PATmobile App

The Seaward Primetest 250+ is compatible with the optional PATmobile app for Android. Users can effortlessly record the latest test result information on their smart devices. This makes test information management more convenient.

Distinctive Features

• Data Storage with PC Download: The Primetest 250+ enables data storage and facilitates downloading in CSV format. The free datalogger software provided with the device enables easy access to the downloaded test data.
• Test Label Printing: By connecting the Primetest 250+ to an optional serial printer, users can conveniently print labels immediately after testing.
• RCD Trip Time: The tester enables checking the trip time for portable RCDs, providing enhanced safety evaluation.
• Powered Leakage Tests: To ensure the safety of appliances without a physical on/off switch, the Primetest 250+ supports powered leakage tests for comprehensive testing coverage.
• The Seaward Primetest 250+ offers advanced functionality and practical features that make it stand out as a reliable and efficient PAT tester for a range of applications.

Key Features

• Easy to use
• Data storage – Up to 999 test results
• Free basic datalogger software
• Print out labels (optional serial printer required)
• RCD trip time
• LCD display with clear pass/fail indication and test results
• Battery powered – approximately 6,000 tests
• Compact and rugged enclosure
• Simple 3-button operation
• Test Class 1, Class 2 and Class 2 FE equipment
• Seawards ZAP feature for accurate earth continuity tests
• Test Extension and IEC leads

Seaward Primetest Comparison

What’s Included

• Seaward Primetest 250+ PAT Tester
• Test Lead
• Earth Bond Test Lead
• Batteries
• IEC lead
• Instruction Manual
• Deluxe Carry Case
• Shoulder Strap
• Data Logging Software

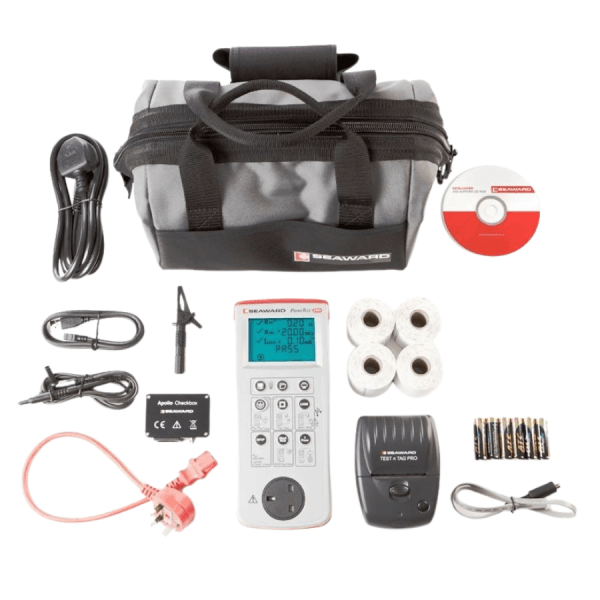

  • Pro Kit adds
    • Test n Tag Pro printer (serial model)
    • 4 x Test n Tag printer label rolls
    • PrimeTest checkbox
    • PATBag carry case
    • Cloverleaf adaptor
    • Online PAT Training Voucher
    • Guide to PAT testing
    • One-year PATGuard 3 Elite license*

*For kit option inclusive of software only (403A957)
